Model
Kenmore 363.59552996
Refrigerator (Kenmore 36359552996)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.59552996Refrigerator (Kenmore 36359552996)
11 diagrams351 parts
Parts Sections (11)
Diagram

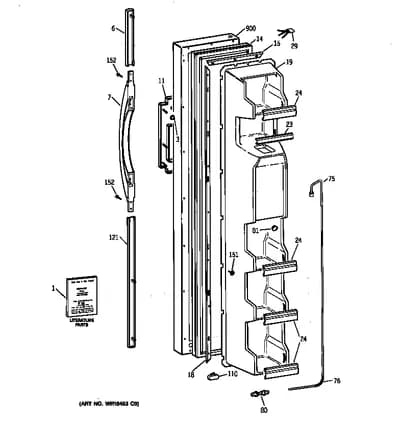

FREEZER DOOR
Parts in FREEZER DOOR
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1A | – | WB17X5062 Connection Block | - |
| 1C | – | SR395 Refrigerator Owner's Guide | - |
| 1E | – | 31-51292 Refrigerator Mini Wiring Manual | - |
| 3 |  | Refrigerator Fastener | - |
| 6 | | WR12X10051NLA Refrigerator Handle Trim | Discontinued |
| 6 | | Refrigerator Handle Trim | - |
| 6 | – | WR12X10055 Refrigerator Handle Trim | - |
| 7 | | Handle Sxs A | Discontinued |
| 7 | | Refrigerator Door Handle | - |
| 7 | – | WR12X10089 Handle Sxs A | - |
| 11 | – | WR38X10060 Al Disp Trim | - |
| 11 | – | WR38X10064 Refrigerator Dispenser Trim | - |
| 11 | – | WR38X10065 Refrigerator Trim Recess | - |
| 14 | | WR24X525NLA Refrigerator Freezer Door Gasket (White) | Discontinued |
| 15 | | Refrigerator Retainer Strip | - |
| 18 | | WR17X2092NLA Refrigerator Freezer Door Gasket Retainer | Discontinued |
| 19 | | Refrigerator Inner Door | - |
| 23 | – | WR17X10118 Refrigerator Freezer Door Shelf | - |
| 24 | | Refrigerator Door Shelf | - |
| 29 | | Refrigerator Harness | - |
| 75 | | WR17X3670NLA Refrigerator Dispenser Fitting and Water Tube Assembly | Discontinued |
| 76 | | Refrigerator Water Tubing Sleeve | - |
| 80 |  | WR02X11330replaces WR2X8545 Refrigerator Water Tube Fitting and Nut Kit | $4.50 Part Advantage |
| 81 | – | WR1X2077 Refrigerator Drain Plug | - |
| 110 | | WR2X8989NLA Refrigerator Freezer Drawer Frame Bumper | Discontinued |
| 121 | | WR12X10037NLA Refrigerator Door Handle Trim, Lower | Discontinued |
| 121 | | Refrigerator Handle Trim | - |
| 121 | | Refrigerator Handle Trim | - |
| 151 |  | WR01X10623replaces WR1X1554 Refrigerator Shoulder | $4.39 Parts Dr |
| 152 | – | WR1X10038 Scr 8-18 | - |
| 900 | | Refrigerator Door Foam Assembly | - |
| 900 | – | WR78X10199 Refrigerator Door Foam Assembly | - |
