Model
Kenmore 363.59572991
Refrigerator (Kenmore 36359572991)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.59572991Refrigerator (Kenmore 36359572991)
11 diagrams385 parts
Parts Sections (11)
Diagram

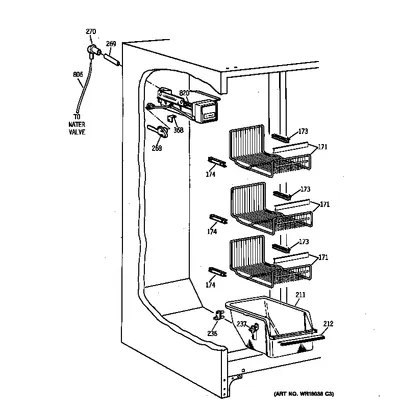

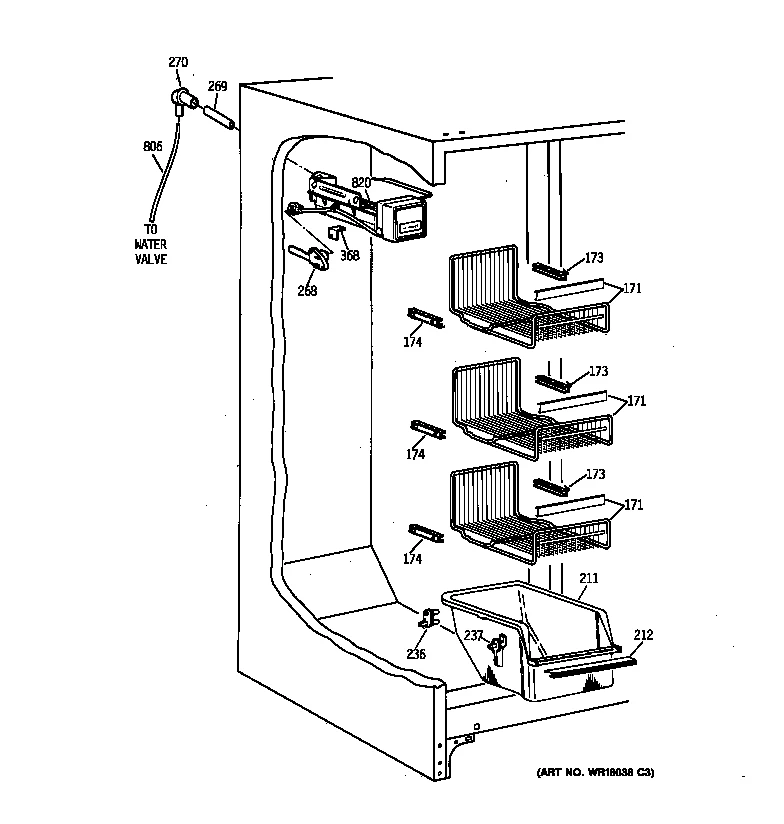

FREEZER SECTION
Parts in FREEZER SECTION
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 171 |  | Refrigerator Wire Basket | - |
| 173 |  | WR72X10079replaces WR2X8724 Refrigerator Support | - |
| 174 | | WR2X8667NLA Refrigerator Slide Support | Discontinued |
| 211 | | Refrigerator Freezer Bin | - |
| 212 | – | WR38X10059 Refrigerator Freezer Basket Trim | - |
| 236 | | Refrigerator Support | - |
| 237 | | WR2X7036NLA Refrigerator Freezer Basket Slide Clip | Discontinued |
| 268 | | Refrigerator Ice Maker Wire Harness | - |
| 269 | | WR2X8668NLA Refrigerator Water Tube | Discontinued |
| 270A |  | WR2X4754replaces WR1X5223 Refrigerator Clamp Fill Tube | $6.95 ApplianceParts Pro |
| 270B |  | WR2X8474replaces WR2X9153 Refrigerator Grommet | $27.35 Parts Dr |
| 368 | | Refrigerator Ice Maker Mounting Bracket | - |
| 806 |  | WR17X11349replaces WR17X2107 Water Line | $8.95 ApplianceParts Pro |
| 820 |  | WR30X10093replaces WR30X327 Refrigerator Ice Maker | $168.04 Parts Dr |
