Model
Kenmore 363.59577991
Refrigerator (Kenmore 36359577991)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
363.59577991Refrigerator (Kenmore 36359577991)
11 diagrams385 parts
Parts Sections (11)
Diagram

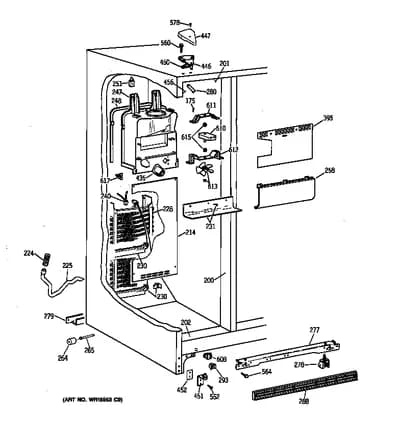

FREEZER SECTION
Parts in FREEZER SECTION
61 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 175 |  | WR01X10652replaces WR1X10035 Scr 8-18 | $6.86 Parts Dr |
| 200 | – | WR40X1730 Refrigerator Breaker Strip | - |
| 201 | – | WR40X1731 Refrigerator Breaker Strip | - |
| 202 | – | WR40X1732 Refrigerator Breaker Strip | - |
| 214A |  | Refrigerator Evaporator Cover Gasket | - |
| 214B | – | WR1X10064 Clip Evaporator | - |
| 214C | | Refrigerator Evaporator Coils Cover | - |
| 224 | | WR2X8657NLA Refrigerator Grommet | Discontinued |
| 225A | | WR1X5042NLA Refrigerator Clamp | Discontinued |
| 225B | – | WR2X8293 Tube Drai | - |
| 228 |  | WR87X29147replaces WR85X309 Lo-Side Kit | $278.45 Part Advantage |
| 230A | | Refrigerator Defrost Heater Bracket | - |
| 230B |  | Refrigerator Wire Harness | $110.67 Part Advantage |
| 231A | – | WR1X2110 Refrigerator Fastener Plug | - |
| 231B | – | WR1X1987 Refrigerator Rivet Plate | - |
| 240 |  | Refrigerator Defrost Bi-Metal Thermostat | $34.98 Part Advantage |
| 247 | | Refrigerator Orifice Evaporator | - |
| 248 | | Refrigerator Foam Strip | - |
| 251 | | WR2X2880NLA Refrigerator Support | Discontinued |
| 258 |  | WR17X3489NLA Refrigerator Light Cover | Discontinued |
| 264 |  | Refrigerator Roller | $22.67 RepairClinic |
| 265A | | WR2X3595NLA Refrigerator Wheel Axle | Discontinued |
| 265B | – | WR2X4742 Axle Pin | - |
| 277 | | Rail Mach Mt | - |
| 278 | | Refrigerator Front Wheel | - |
| 279 | – | WR17X10058 Rail Mach Mt | - |
| 280 | – | WR2X8518 C Cap Oc | - |
| 280 | – | WR2X8519 C Cap Oc | - |
| 280 | – | WR2X8524 Bk Corner | - |
| 288 | | Refrigerator Grille | - |
| 288 | | Refrigerator Base Grille | - |
| 288 | | Refrigerator Base Grille | - |
| 293 | | Refrigerator Toe Grille Clip | - |
| 395 | | Fan Shield | - |
| 435A |  | 40A15replaces STD372402 40a15/22 | $8.96 Parts Dr |
| 435B |  | Technician Refrigerator Light Socket | $7.98 Part Advantage |
| 446 | | Refrigerator Freezer Door Hinge, Upper | - |
| 447 | | WR2X8824NLA Cvr Hg Ff | Discontinued |
| 447 | | Refrigerator Freezer Door Hinge Cover (White) | - |
| 447 | | Cvr Hg Ff | - |
| 447 | | Hinge Freezer Cover | - |
| 447A | | Hinge Freezer Cover | - |
| 447B | | Cvr Hg Ff | - |
| 450 | | Refrigerator Shim | - |
| 451 |  | Refrigerator Door Hinge | $34.12 Part Advantage |
| 452A | – | WR2X4497 Refrigerator Hinge Shim | - |
| 452B | | Refrigerator Door Hinge Shim | - |
| 456 | – | WR40X1733 Refrigerator Breaker Strip | - |
| 552 |  | WR01X10600replaces WR1X10034 Scr 12-24 | $7.37 ApplianceParts Pro |
| 552 | – | WR1X134 SCR 12-24 TT IH .975 S | - |
| 560 | | WR01X10204replaces WR1X2140 Refrigerator Screw | - |
| 564 | | WE2X186Dreplaces WR1X1194 Screw, 2-pack | - |
| 578 |  | SCR 8-32 MA TR 3/8 SS | - |
| 608 |  | WR23X427replaces WR23X368 Refrigerator Light Switch | $59.60 Parts Dr |
| 610 |  | WR60X10008replaces WR60X10007 Evaporator Motor | $167.07 Parts Dr |
| 611 | – | WR2X10100 Bracket | - |
| 612 | – | WR2X10101 Bracket | - |
| 613A |  | WR60X114replaces WR2X3198 Refrigerator Fan Blade | $14.23 Part Advantage |
| 613B | | Refrigerator Evaporator Fan Blade | - |
| 615 |  | WR02X10098replaces WR2X10098 Grommet | $5.09 Part Advantage |
| 617 |  | Refrigerator Screw | - |
