Model
Kenmore 3639878911KS
Free Standing Electric Range (Kenmore 3639878911KS)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
3639878911KSFree Standing Electric Range (Kenmore 3639878911KS)
10 diagrams264 parts
Parts Sections (10)
Diagram

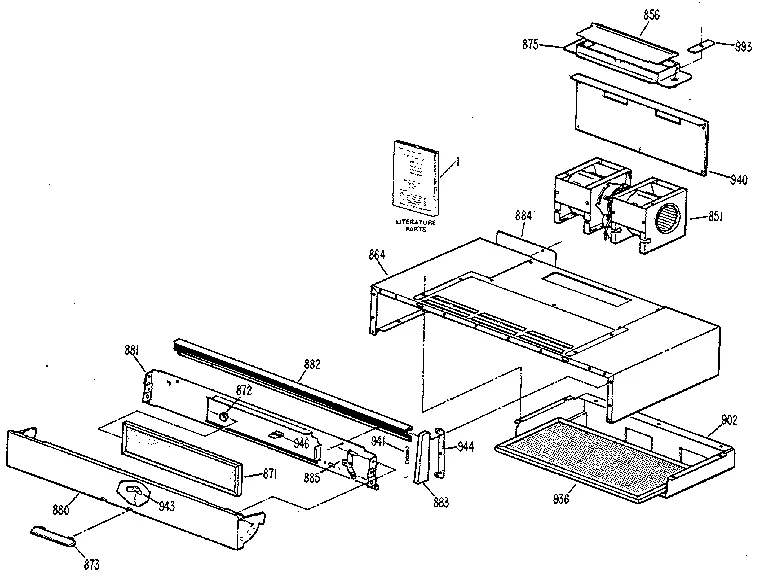

HOOD
Parts in HOOD
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | SR4012 Owner's Manual | - |
| 1A | – | SR4001 Technical Sheet | - |
| 1B | – | SR4002 Technical Sheet | - |
| 1C | – | SR4104 Kenmore Parts List | - |
| 1D | – | 49-4706 GE Cook Book | - |
| 851 |  | Blower Motor | - |
| 856 | – | WB02X7764 Damper | - |
| 864 | – | WB56X7008 Hood Body Wh | - |
| 864A | | WB56X7007NLA Hood Body Ad | Discontinued |
| 871 | | WB02X7758NLA Filtr Grease | Discontinued |
| 872 | – | WB02X1583 Clip | - |
| 873 | | Handle | - |
| 875 | – | WB49X5935 Exhaust Assembly | - |
| 880 | | Panel Hood | - |
| 881 | – | WB49X5390 Filter Plate | - |
| 882 | | WB07X6793NLA Trim Hood | Discontinued |
| 883 | – | WB07X6791 End Cap, Right | - |
| 883A | – | WB07X6792 End Cap, Left | - |
| 884 | – | WB02X2017 Cover | - |
| 885 | – | WB02X7216 Spring Pin | - |
| 902 | – | WB49X5470 Air Plenum | - |
| 936 | – | WB02X7692 Filter Comb | - |
| 940 | – | WB02X7900 Housing Cover | - |
| 941 | | WB9X5099replaces WB09X5099 Spring | - |
| 943 | – | WB02X7217 Retainer Clip | - |
| 944 | – | WB02X3461 Bracket | - |
| 946 | – | WB02X6734 Filter Clip | - |
| 993 | – | WB02X7765 Plate | - |
