Model
GE AEG14AZL1
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
AEG14AZL1Room Air Conditioner Built In
1 diagram56 parts
Parts Sections (1)

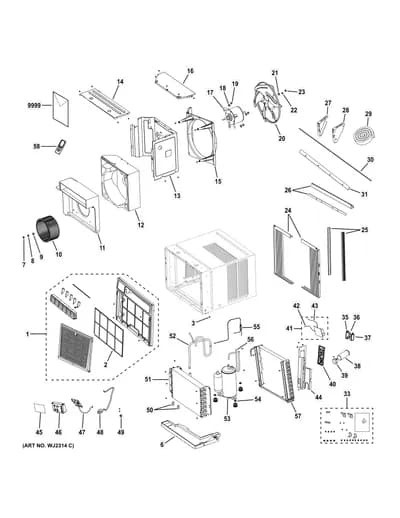

Diagram
ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
56 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | FRONT PANEL ASSY | - |
| 2 |  | FILTER | - |
| 3 | – | WJ01X10343 SELF-TAPPING SCREW | - |
| 6 |  | FOAM (WATER TRAY) | - |
| 7 | | WASHER(DIA 6MM) | - |
| 8 | | WASHER | $7.78 ApplianceParts Pro |
| 9 | | GASKET (DIA 10MM) | - |
| 10 |  | CENTRIFUGAL FAN | - |
| 11 |  | FOAM (AIR OUTLET) | - |
| 12 |  | PROPELLER HOUSING | - |
| 13 | | SUPPORT BRACKET, MOTOR | - |
| 14 | | TOP COVER | - |
| 15 | | CONDENSER COVER | - |
| 16 | | TOP COVER (REAR) | - |

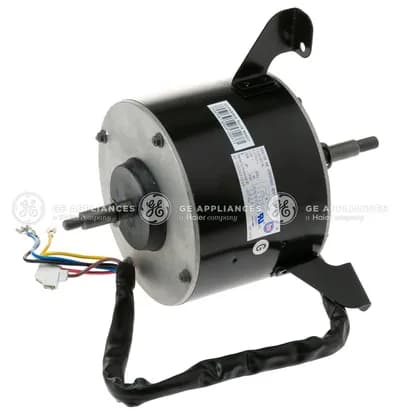

| 17 |  | MOTOR, FAN | - |
| 18 | | SPRING WASHER(DIA 6MM) | - |
| 19 |  | NUT | $7.78 ApplianceParts Pro |
| 20 |  | AXIAL FLOW FAN | $80.38 PartSelect |
| 21 | | GASKET (DIA 8MM) | - |
| 22 |  | GASKET (DIA 8MM) | - |
| 23 |  | NUT (M8)(LEVO) | - |
| 24 |  | FIXING FRAME SUB ASSY | - |
| 25 |  | CURTAIN QUICKSET | - |
| 26 |  | TOP GUIDE | - |
| 27 |  | SUPPORT TRIANCLE LEFT | - |
| 28 |  | SUPPORT TRIANCLE RIGHT | - |

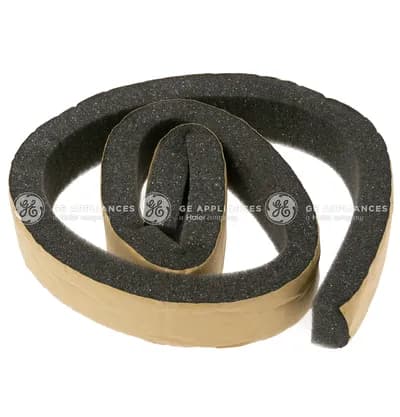

| 29 |  | FOAM TOP WINDOW GASKET | - |

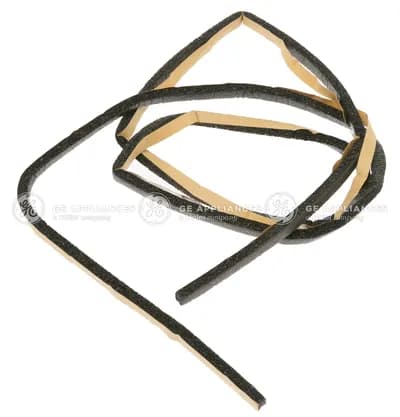

| 30 |  | WINDOW SASH SEAL | $7.78 ApplianceParts Pro |
| 31 | | TOP RAIL GASKET | - |
| 33 |  | HARDWARE ASM, INSTALL | $32.95 ApplianceParts Pro |
| 35 | – | WJ26X21302 WIFI BOX | - |
| 36 | | WIFI MODULE | - |
| 37 | | WIFI BOX COVER | - |
| 38 |  | CAPACITOR | - |
| 39 | | CAPACITOR CLAMP | - |
| 40 | | BOARD MOUNT | - |

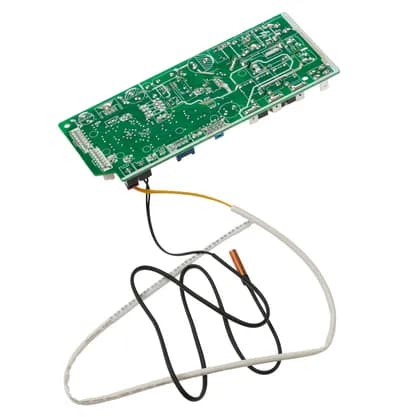

| 41 |  | MAIN BOARD | $86.96 PartSelect |
| 42 | | SENSOR TUBE | - |
| 43 |  | SENSOR TUBE | - |
| 44 | | FRONT CLAPBOARD 2 | - |
| 45 |  | MEMBRANE | - |
| 46 |  | UI HOUSING | - |

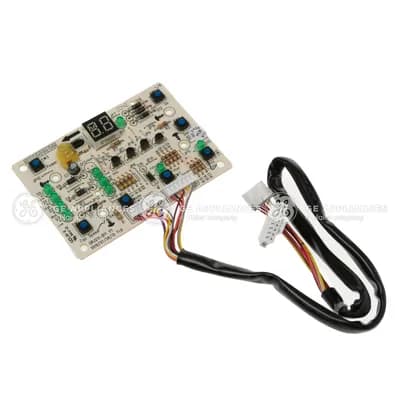

| 47 |  | DISPLAY BOARD | - |
| 48 |  | WJ35X10165replaces WJ35X10167 POWER CORD | $92.92 Parts Dr |
| 49 | | CABLE CLAMP | - |
| 50 | | SENSOR INSERT | - |
| 51 | | WJ88X20170replaces WJ88X10245 EVAPORATOR ASM | - |
| 52 | | SUCTION TUBE SUB ASM | - |
| 53 | | COMPRESSOR AND FITTINGS | - |
| 54 | | RUBBER GROMMET | - |
| 55 | | CAPILLARY SUB-ASSY | - |
| 56 | | DISCHARGE TUBE | - |
| 57 |  | CONDENSER ASM | $129.58 PartSelect |
| 58 |  | REMOTE CONTROL | - |
| 9999 | – | 31-5000455 PM MINI MANUAL AND WIRING | - |
| 9999 | – | 49-5000434 PM OWNERS MANUAL | - |
