Model
GE ASH06LBS1
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH06LBS1Room Air Conditioner Built In
1 diagram39 parts
Parts Sections (1)
Diagram

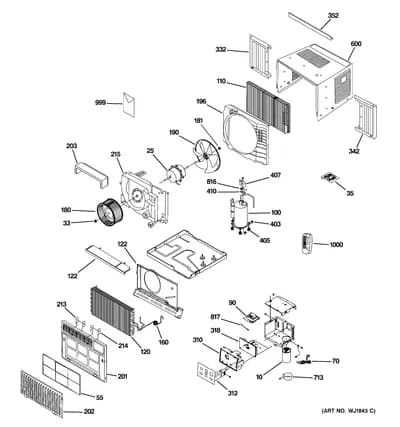

ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
39 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 10 | – | WJ20X10084 CAPACITOR | - |
| 25 | – | WJ94X10159 FAN MOTOR | - |
| 33 | – | WJ01X10163 NUT-FLANGE BLOWER | - |
| 35 | – | WJ86X10037 SCREW HARDWARE PACK | - |
| 55 | – | WJ85X10095 GUARD AIR FILTER | - |
| 70 | – | WJ35X10070 POWER CORD | - |
| 90 |  | TRANSFORMER | - |
| 100 | – | WJ98X10120 COMPRESSOR | - |
| 110 | – | WJ88X10105 CONDENSER | - |
| 120 | – | WJ87X10109 EVAPORATOR | - |
| 122 | – | WJ76X10139 PLATE EVAP CASING | - |
| 160 | | CAPILLARY TUBE | - |
| 180 | – | WJ73X10042 BLOWER | - |
| 181 | | NUT-FLANGE FAN | - |
| 190 | | FAN PROPELLER | Discontinued |
| 196 | – | WJ76X10141 CASE COND | - |
| 201 | – | WJ71X10364 PANEL FRONT | - |
| 202 | – | WJ71X10365 GRILLE AIR INLET | - |
| 203 | – | WJ76X10140 CASE EVAP UP | - |
| 213 | – | WJ71X10366 BLADE V | - |
| 214 | – | WJ71X10367 LINK BLADE V | - |
| 215 | – | WJ71X10325 PARTITION | - |
| 310 | – | WJ07X10121 PANEL CONTROL | - |
| 312 | – | WJ26X10121 SWITCH MEMBRANE | - |
| 318 | | MAIN PCB ASS'Y | - |
| 332 | | SHUTTER LF ASM | - |
| 342 | | SHUTTER RH ASM | - |
| 352 | | SHUTTER ANGLE UP | - |
| 403 | – | WJ01X10119 NUT WASHER, FAN | - |
| 405 | – | WJ01X10114 GROMMET ISOLATOR | - |
| 407 | – | WJ86X10024 COVER-TERMINAL | - |
| 410 | – | WJ43X10018 GASKET | - |
| 600 | – | WJ90X10061 CABINET | - |
| 713 | – | WJ03X10023 CAPACITOR CLIP | - |
| 816 | – | WJ23X10058 OVERLOAD PROTECTOR | - |
| 817 | – | WJ27X10049 THERMISTOR | - |
| 999 | – | 31-60992 MINI-MANUAL | - |
| 999 | – | 49-7441 49-7463 | - |
| 1000 | | WJ26X10084NLA REMOCON ASS'Y | Discontinued |
