Model
GE ASH06LCS1
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH06LCS1Room Air Conditioner Built In
1 diagram39 parts
Parts Sections (1)
Diagram

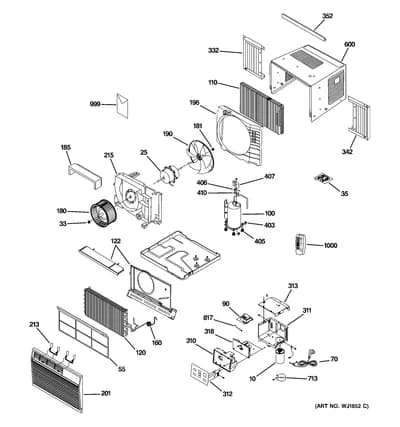

ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
39 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 10 | – | WJ20X10084 CAPACITOR | - |
| 25 | – | WJ94X10159 FAN MOTOR | - |
| 33 | – | WJ01X10163 NUT-FLANGE BLOWER | - |
| 35 | – | WJ86X10037 SCREW HARDWARE PACK | - |
| 55 |  | AIR FILTER | - |
| 70 | – | WJ35X10082 POWER CORD | - |
| 90 | | TRANSFORMER | - |
| 100 | – | WJ98X10155 COMPRESSOR | - |
| 110 | – | WJ88X10105 CONDENSER | - |
| 120 | – | WJ87X10109 EVAPORATOR | - |
| 122 | – | WJ76X10139 PLATE EVAP CASING | - |
| 160 | – | WJ53X10120 CAPILLARY TUBE | - |
| 180 | – | WJ73X10042 BLOWER | - |
| 181 | | NUT-FLANGE FAN | - |
| 185 | – | WJ76X10140 CASE EVAP UP | - |
| 190 | | WJ73X10134NLA FAN PROPELLER | Discontinued |
| 196 | – | WJ76X10141 CASE COND | - |
| 201 | – | WJ71X10412 PANEL FRONT | - |
| 213 | – | WJ71X10324 BLADE V | - |
| 215 | – | WJ71X10410 PARTITION | - |
| 310 | – | WJ07X10129 CONTROL PANEL | - |
| 311 | – | WJ07X10110 CASE CONTROL LOW | - |
| 312 | – | WJ26X10191 SWITCH MEMBRANE | - |
| 313 | – | WJ07X10109 CASE CONTROL UP | - |
| 318 | – | WJ26X10184 ASSY MAIN PCB | - |
| 332 | | SHUTTER LF ASM | - |
| 342 | | SHUTTER RH ASM | - |
| 352 | | SHUTTER ANGLE UP | - |
| 403 | – | WJ01X10119 NUT WASHER, FAN | - |
| 405 | – | WJ01X10235 GROMMET ISOLATOR | - |
| 406 | – | WJ23X10076 OVER LOAD PROTECTOR | - |
| 407 | – | WJ86X10126 COVER TERMINAL | - |
| 410 | – | WJ43X10052 GASKET | - |
| 600 | – | WJ90X10079 CABINET ASSY | - |
| 713 | – | WJ03X10023 CAPACITOR CLIP | - |
| 817 | | WJ27X10050NLA THERMISTOR | Discontinued |
| 999 | – | 31-61088 MINI MANUAL | - |
| 999 | – | 49-7471 USE & CARE MANUAL | - |
| 1000 | | WJ26X10084NLA REMOCON ASS'Y | Discontinued |
