Model
GE ASH08FCS1
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH08FCS1Room Air Conditioner Built In
1 diagram42 parts
Parts Sections (1)
Diagram

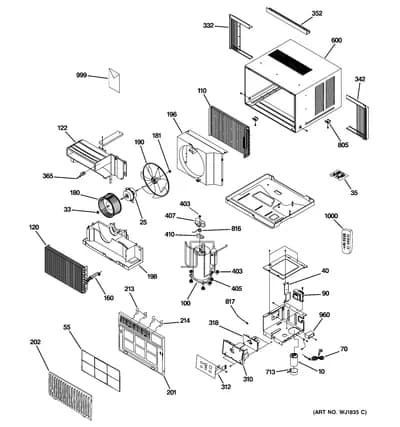

ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 10 | – | WJ20X10056 CAPACITOR | - |
| 25 | – | WJ94X10160 FAN MOTOR | - |
| 33 | – | WJ01X10163 NUT-FLANGE BLOWER | - |
| 35 | – | WJ86X10044 ACCESSORY ASM | - |
| 40 | – | WJ66X10048 BRK CONTROL | - |
| 55 | – | WJ85X10096 GUARD AIR FILTER | - |
| 70 | – | WJ35X10047 POWER CORD | - |
| 90 |  | TRANSFORMER | - |
| 100 | – | WJ98X10121 COMPRESSOR | - |
| 110 | | CONDENSER | - |
| 120 | | EVAPORATOR ASS'Y | - |
| 122 | – | WJ76X10098 FRAME UP ASS'Y | - |
| 160 | | CAPILLARY TUBE | - |
| 180 | | BLOWER | - |
| 181 | | NUT-FLANGE FAN | - |
| 190 | | FAN BLADE - O.D. | - |
| 196 | – | WJ76X10097 COND CASING ASS'Y | - |
| 198 | – | WJ76X10096 FRAME LOW ASS'Y | - |
| 201 | – | WJ71X10368 PANEL FRONT | - |
| 202 | – | WJ71X10369 GRILLE-AIR INLET | - |
| 213 | – | WJ71X10370 BLADE V | - |
| 214 | – | WJ71X10254 LINK BLADE | - |
| 310 | – | WJ07X10120 PANEL CONTROL | - |
| 312 | | WJ26X10122NLA SWITCH MEMBRANE | Discontinued |
| 318 | | ASS'Y MAIN PCB | - |
| 332 | – | WJ86X10042 SHUTTER LF | - |
| 342 | – | WJ86X10043 SHUTTER RH | - |
| 352 | – | WJ86X10041 SHUTTER ANGLE UP | - |
| 365 | – | WJ14X10052 LEVER DAMPER | - |
| 403 | – | WJ01X10119 NUT WASHER, FAN | - |
| 405 | – | WJ01X10116 GROMMET-ISOLATOR | - |
| 407 | – | WJ86X10024 COVER-TERMINAL | - |
| 410 | – | WJ43X10018 GASKET | - |
| 600 | – | WJ90X10045 CABINET ASS'Y | - |
| 713 | – | WJ03X10023 CAPACITOR CLIP | - |
| 805 | – | WJ66X10034 INSTALLATION BRACKET | - |
| 816 | – | WJ23X10043 OVERLOAD PROTECTOR | - |
| 817 | | WJ27X10050NLA THERMISTOR | Discontinued |
| 960 | – | WJ20X10060 C-FILM,MPE-PPF | - |
| 999 | – | 31-60993 MINI-MANUAL | - |
| 999 | – | 49-7442 USE & CARE MANUAL | - |
| 1000 | | WJ26X10084NLA REMOCON ASS'Y | Discontinued |
