Model
GE ASH08FDS1
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH08FDS1Room Air Conditioner Built In
1 diagram45 parts
Parts Sections (1)
Diagram

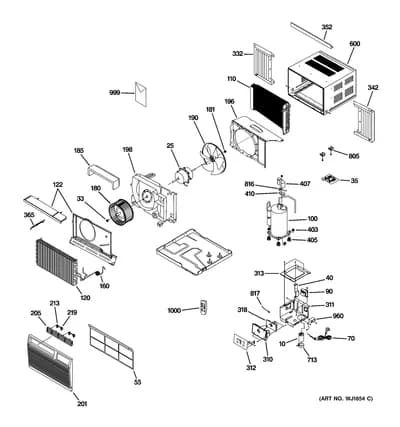

ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
45 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 10 | – | WJ20X10059 CAPACITOR | - |
| 25 |  | FAN MOTOR | - |
| 33 | – | WJ01X10163 NUT-FLANGE BLOWER | - |
| 35 | – | WJ86X10044 ACCESSORY ASM | - |
| 40 | – | WJ66X10063 BRK CONTROL | - |
| 55 | | AIR FILTER | - |
| 70 | – | WJ35X10047 POWER CORD | - |
| 90 | – | WJ27X10062 TRANSFORMER | - |
| 100 | – | WJ98X10167 COMPRESSOR | - |
| 110 | – | WJ88X10139 CONDENSER | - |
| 120 | – | WJ87X10146 ASSY EVAPORATOR | - |
| 122 | – | WJ76X10184 ASSY PLATE EVAP CASING | - |
| 160 | – | WJ53X10117 CAPILLARY TUBE | - |
| 180 | | BLOWER | - |
| 181 | | NUT-FLANGE FAN | - |
| 185 | – | WJ76X10183 ASSY CASE UPPER | - |
| 190 | | FAN BLADE - O.D. | - |
| 196 | – | WJ76X10179 COND CASING | - |
| 198 | – | WJ76X10185 ASSY PARTITION | - |
| 201 | – | WJ71X10447 PANEL FRONT | - |
| 205 | – | WJ71X10446 FRAME BLADE | - |
| 213 | – | WJ71X10425 BLADE V | - |
| 219 | – | WJ71X10424 LINK BLADE | - |
| 310 | | PANEL CONTROL | - |
| 311 | – | WJ07X10150 CASE CONTROL LOW | - |
| 312 | – | WJ26X10192 SWITCH MEMBRANE | - |
| 313 | – | WJ07X10151 CASE CONTROL UP | - |
| 318 | – | WJ26X10179 ASS'Y MAIN PCB | - |
| 332 | – | WJ86X10129 SHUTTER LEFT | - |
| 342 | – | WJ86X10128 SHUTTER RIGHT | - |
| 352 | – | WJ86X10127 SHUTTER ANGLE,UP | - |
| 365 | – | WJ14X10069 LEVER DAMPER | - |
| 403 | – | WJ01X10119 NUT WASHER, FAN | - |
| 405 | – | WJ01X10236 GROMMET ISOLATOR | - |
| 407 | – | WJ86X10126 COVER TERMINAL | - |
| 410 | – | WJ43X10052 GASKET | - |
| 600 | – | WJ90X10082 ASM CABINET | - |
| 713 | – | WJ03X10023 CAPACITOR CLIP | - |
| 805 | – | WJ66X10034 INSTALLATION BRACKET | - |
| 816 | – | WJ23X10078 OLP | - |
| 817 | | WJ27X10050NLA THERMISTOR | Discontinued |
| 960 | – | WJ20X10060 C-FILM,MPE-PPF | - |
| 999 | – | 31-61089 MINI MANUAL | - |
| 999 | – | 49-7472 USE & CARE MANUAL | - |
| 1000 | | WJ26X10084NLA REMOCON ASS'Y | Discontinued |
