Model
GE ASH109PRDWA
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH109PRDWARoom Air Conditioner Built In
1 diagram31 parts
Parts Sections (1)
Diagram

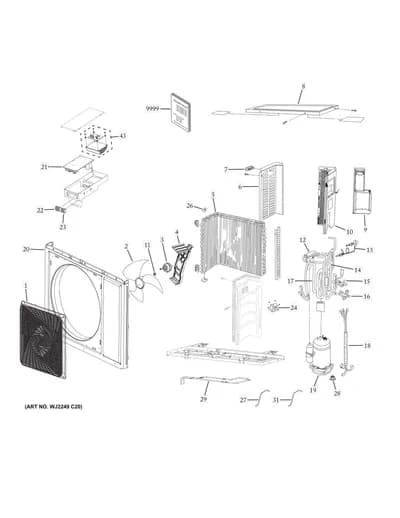

ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WJ71X25110NLA GRILL | Discontinued |
| 2 |  | FAN BLADE | $46.90 PartSelect |
| 3 |  | OUTDOOR FAN MOTOR | $115.97 PartSelect |
| 4 | | OUTDOOR FAN MOTOR BRACKET | - |
| 5 | | CONDENSER | - |
| 6 | | WJ76X24660NLA LEFT SIDE PANEL | Discontinued |
| 7 | | WJ01X24654NLA HANDLE | Discontinued |
| 8 | | WJ76X24662NLA TOPCOVER | Discontinued |
| 9 |  | VALVE COVER | - |
| 10 | | WJ76X24661NLA RIGHT SIDE PANEL | Discontinued |
| 11 | | FLANGE NUT | - |
| 12 | | WJ53X24700NLA 4-WAY VALVE TUBE ASSEMBLY | Discontinued |
| 13 | | ELECTRONIC EXPANSION VALVE | - |
| 14 | | DISCHARGE TUBE | - |
| 15 | | LIQUID SERVICE VALVE | - |
| 16 | | VAPOR SERVICE VALVE | - |
| 17 | | SUCTION TUBE | - |
| 18 |  | OUTDOOR WIRE HARNESS | - |
| 19 | | COMPRESSOR | - |
| 20 | | CASING | - |

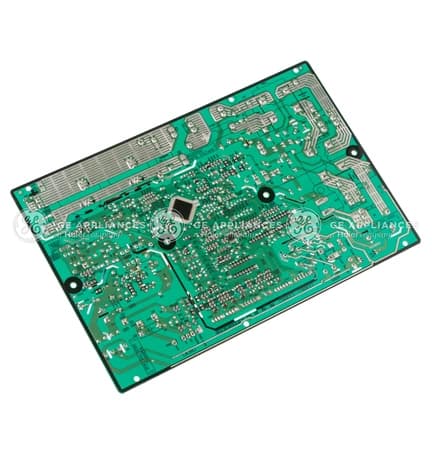

| 21 |  | POWER CONTROL BOARD | - |
| 22 | | TERMINAL BLOCK | - |
| 23 | | TERMINAL BLOCK SUPPLY | - |
| 24 |  | REACTOR | - |
| 26 | | SENSOR CLIP | - |
| 27 |  | DISCHARGE,DEF & AMB TEMP SENSORS | $9.83 ApplianceParts Pro |
| 28 | | FLANGE NUT | - |
| 29 | | BASEPAN HEATER | - |
| 31 |  | SUCTION SENSOR | - |
| 43 |  | INVERTER ASSEMBLY | - |
| 9999 | – | 31-5000276 PM INSTALL INSTRUCTIONS | - |
