Model
GE ASH109URDSD1
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH109URDSD1Room Air Conditioner Built In
1 diagram36 parts
Parts Sections (1)

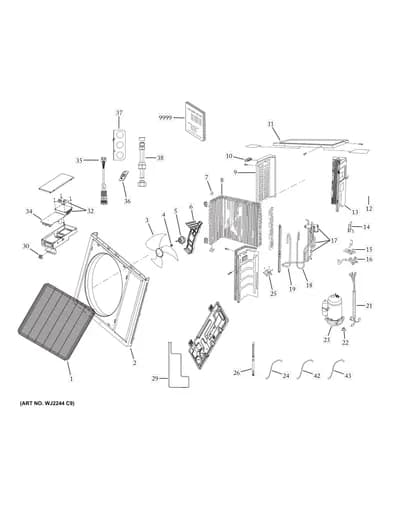

Diagram
ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
36 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GRILLE | - |
| 2 | | CASING | - |
| 3 | | FAN BLADE | - |
| 4 | | FLANGE NUT | - |
| 5 |  | OUTDOOR FAN MOTOR | $237.25 PartSelect |
| 6 | | OUTDOOR FAN MOTOR BRACKET | - |
| 7 | | SENSOR CLIP | - |
| 8 | | CONDENSER | - |
| 9 | | LEFT SIDE PANEL | - |
| 10 | | HANDLE | - |
| 11 | | TOP COVER | - |
| 12 | | VALVE COVER | - |
| 13 | | RIGHT SIDE PANEL | - |
| 14 | | EEV VALVE | - |
| 15 | | LIQUID SERVICE VALVE | - |
| 16 | | VAPOR SERVICE VALVE | - |
| 17 | | 4-WAY VALVE | - |
| 18 | | WJ53X26451NLA DISCHARGE TUBE | Discontinued |
| 19 | | SUCTION TUBE | - |
| 21 | | OUTDOOR WIRE HARNESS | - |
| 22 | | COMPRESSOR NUT | - |
| 23 | | WJ98X26446NLA COMPRESSOR | Discontinued |
| 24 |  | SUCTION SENSOR | - |
| 25 | | REACTOR | - |
| 26 | | COMPRESSOR HEATER | - |
| 29 | | BASEPAN HEATER | - |
| 30 | | TERMINAL BLOCK | - |

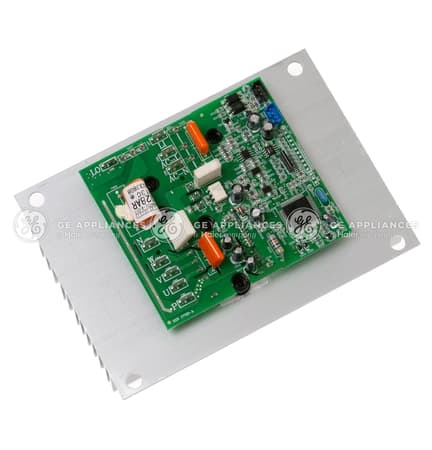

| 32 |  | INVERTER ASSEMBLY | - |
| 34 | | POWER CONTROL BOARD | - |
| 35 | | WJ27X27115NLA RJ45 | Discontinued |
| 36 | | COVER | - |
| 37 | | STRAIN RELIEF BRACKET | - |
| 38 | | 1/2" X 3/8" ADAPTER | - |
| 42 |  | DISCHARGE,DEF & AMB TEMP SENSORS | $9.83 ApplianceParts Pro |
| 43 |  | DEFROST SENSOR (B 10K) | - |
| 9999 | – | 31-5000276 PM INSTALL INSTRUCTIONS | - |
