Model
GE ASH10ACM1
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH10ACM1Room Air Conditioner Built In
1 diagram47 parts
Parts Sections (1)
Diagram

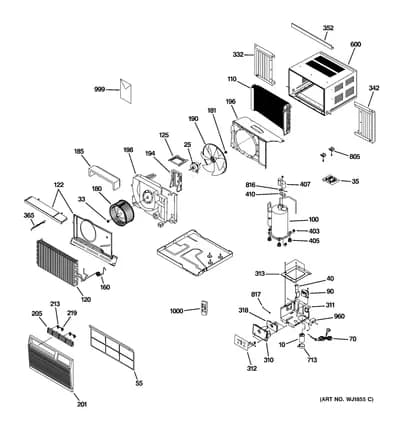

ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
47 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 10 | – | WJ20X10059 CAPACITOR | - |
| 25 | – | WJ94X10200 FAN MOTOR | - |
| 33 | – | WJ01X10163 NUT-FLANGE BLOWER | - |
| 35 | – | WJ86X10044 ACCESSORY ASM | - |
| 40 | – | WJ66X10048 BRK CONTROL | - |
| 55 | – | WJ85X10116 AIR FILTER | - |
| 70 |  | POWER-CORD | - |
| 90 | – | WJ27X10062 TRANSFORMER | - |
| 100 | – | WJ98X10171 COMP(2P16S126B1K) | - |
| 110 | | CONDENSER | - |
| 120 | – | WJ87X10148 EVAPORATOR | - |
| 122 | – | WJ76X10187 ASSY PLATE EVAP CASING | - |
| 125 | – | WJ71X10436 PLATE REINF | - |
| 160 | – | WJ53X10119 CAPILLARY TUBE | - |
| 180 | | BLOWER | - |
| 181 | | NUT-FLANGE FAN | - |
| 185 | – | WJ76X10188 ASSY EVAP CASING UP | - |
| 190 | | FAN-PROPELLER | - |
| 194 | – | WJ65X10085 MOUNTER-MOTOR | - |
| 196 | – | WJ76X10182 CASE COND | - |
| 198 | – | WJ76X10189 ASSY PLATE PARTITION | - |
| 201 | – | WJ71X10433 PANEL FRONT | - |
| 205 | – | WJ71X10449 FRAME BLADE | - |
| 213 | – | WJ71X10437 BLADE V(S) | - |
| 219 | – | WJ71X10438 BLADE V(L) | - |
| 310 | | CONTROL PANEL | - |
| 311 | – | WJ07X10155 CASE CONTROL LOW | - |
| 312 | – | WJ26X10182 SWITCH MEMBRANE | - |
| 313 | – | WJ07X10156 CASE CONTROL UP | - |
| 318 | – | WJ26X10179 ASS'Y MAIN PCB | - |
| 332 | | WJ86X10049NLA SHUTTER LF | Discontinued |
| 342 | – | WJ86X10050 SHUTTER RH | - |
| 352 | – | WJ86X10132 SHUTTER-ANGLE UP | - |
| 365 | – | WJ14X10065 LEVER DAMPER | - |
| 403 | – | WJ01X10119 NUT WASHER, FAN | - |
| 405 | – | WJ01X10237 GROMMET INSULATOR | - |
| 407 | – | WJ86X10131 COVER TERMINAL | - |
| 410 | – | WJ43X10054 GASKET | - |
| 600 | – | WJ90X10084 ASS'Y CABINET | - |
| 713 | – | WJ03X10023 CAPACITOR CLIP | - |
| 805 | – | WJ66X10034 INSTALLATION BRACKET | - |
| 816 | – | WJ23X10080 O.L.P. | - |
| 817 | | WJ27X10050NLA THERMISTOR | Discontinued |
| 960 | – | WJ20X10074 C-OIL(FAN MOTOR) | - |
| 999 | – | 31-61090 MINI MANUAL | - |
| 999 | – | 49-7472 USE & CARE MANUAL | - |
| 1000 | | WJ26X10084NLA REMOCON ASS'Y | Discontinued |
