Model
GE ASH112PRDBB1
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH112PRDBB1Room Air Conditioner Built In
1 diagram37 parts
Parts Sections (1)
Diagram

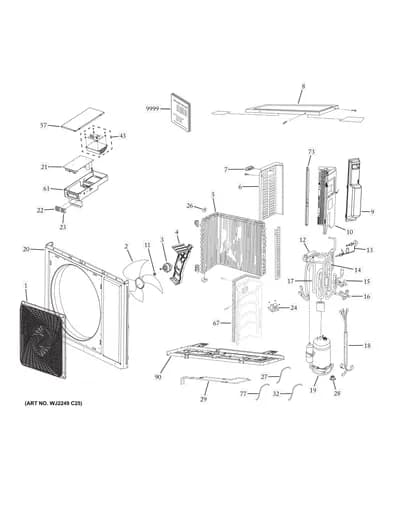

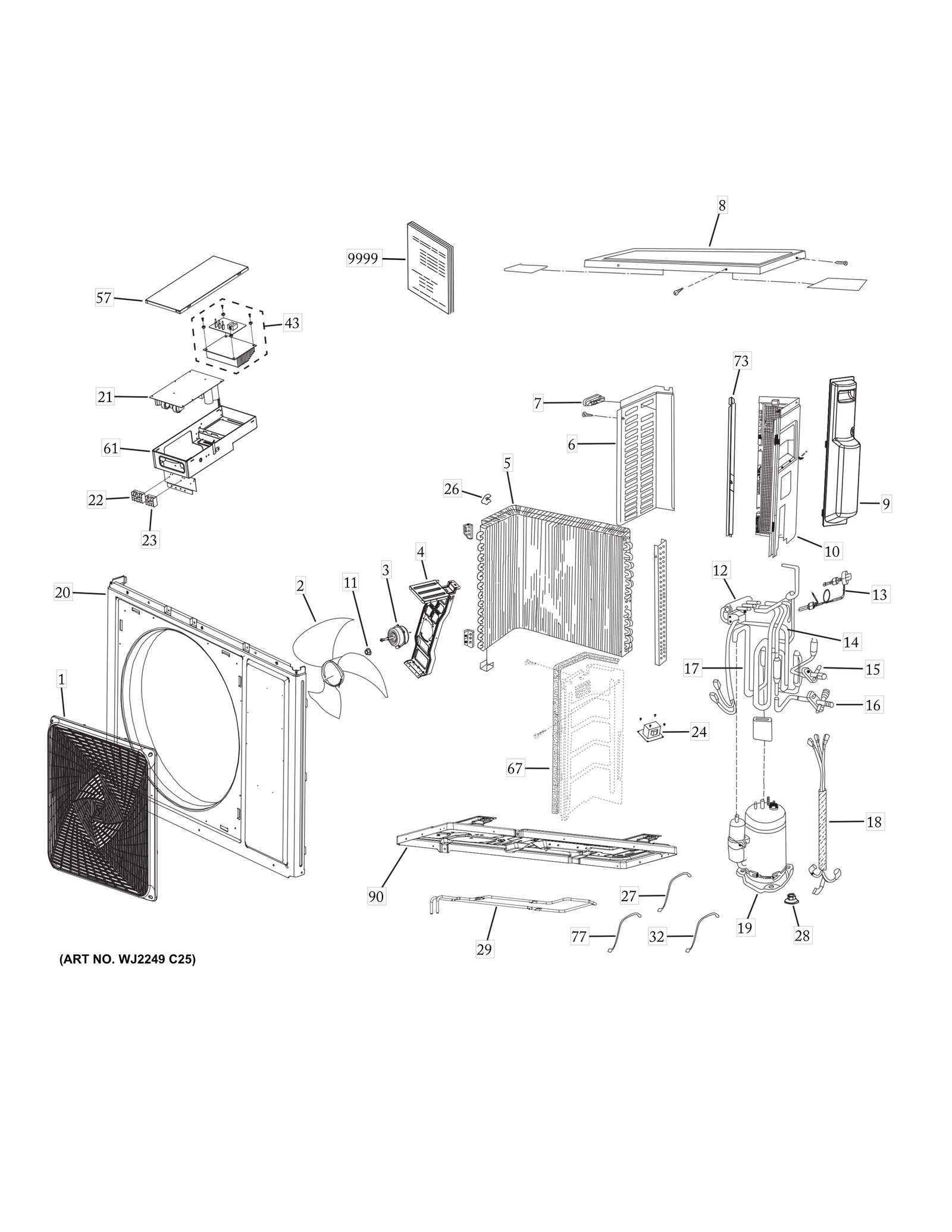

ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GRILL | - |
| 2 | | FAN BLADE | - |
| 3 |  | OUTDOOR FAN MOTOR | $115.97 PartSelect |
| 4 | | OUTDOOR FAN MOTOR BRACKET | - |
| 5 | | CONDENSER ASSY. | - |
| 6 | | LEFT SIDE PANEL | - |
| 7 | | WIRE COVER | - |
| 8 | | TOPCOVER | - |
| 9 | | VALVE COVER | $20.37 PartSelect |
| 10 | | RIGHT SIDE PANEL | - |
| 11 | | FLANGE NUT | - |
| 12 | | WJ53X24700NLA 4-WAY VALVE TUBE ASSEMBLY | Discontinued |
| 13 | | ELECTRONIC EXPANSION VALVE | - |
| 14 | | DISCHARGING PIPE | - |
| 15 | | LIQUID SERVICE VALVE | - |
| 16 | | VAPOR SERVICE VALVE | - |
| 17 | | SUCTION TUBE | - |

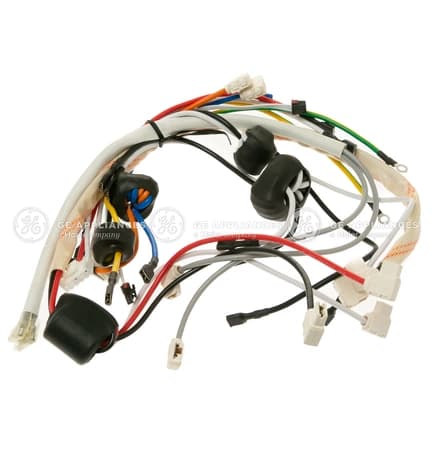

| 18 |  | OUTDOOR WIRE HARNESS | - |
| 19 | | COMPRESSOR | - |
| 20 | | CASING | - |
| 21 | | POWER CONTROL BOARD | - |
| 22 | | TERMINAL BLOCK | - |
| 23 | | TERMINAL BLOCK SUPPLY | - |

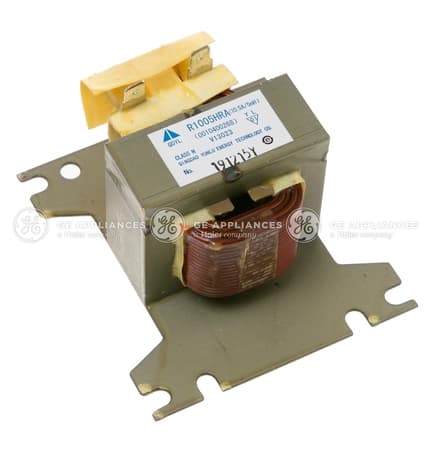

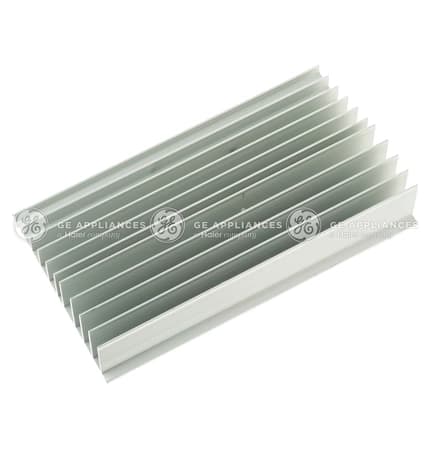

| 24 |  | REACTOR | - |
| 26 | | SENSOR CLIP | - |
| 27 |  | SUCTION SENSOR | - |
| 28 | | FLANGE NUT | - |
| 29 | | BASEPAN HEATER | - |
| 32 |  | DISCHARGE,DEF & AMB TEMP SENSORS | $9.83 ApplianceParts Pro |
| 43 |  | INVERTER ASSEMBLY | - |
| 57 | | ELCTRICAL BOX COVER | - |
| 61 | – | WJ76X24615 ELECTRAL BOX | - |
| 67 | | PARTITION PANEL PLATE | - |
| 73 | | CROSSBEAM | - |
| 77 | | ELECTRIC HEATER HARNESS | - |
| 90 | – | WJ76X33049 BOTTOM PLATE ASSY. | - |
| 9999 | – | 31-5000276 PM INSTALL INSTRUCTIONS | - |
