Model
GE ASH124CRDDA1
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH124CRDDA1Room Air Conditioner Built In
1 diagram33 parts
Parts Sections (1)
Diagram

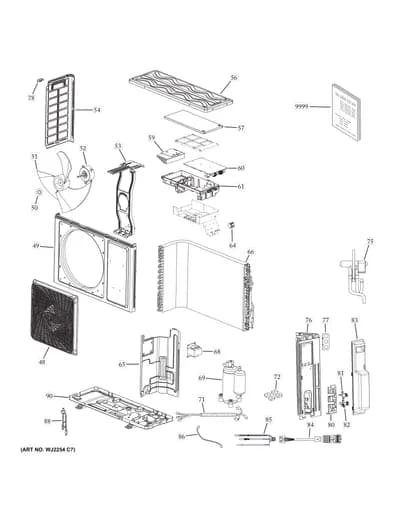

ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 48 |  | GRILL | - |
| 49 | | CASING | - |
| 50 | | FLANGE NUT | - |
| 51 | | FAN BLADE | - |
| 52 |  | OUTDOOR FAN MOTOR | $237.25 PartSelect |
| 53 | | OUTDOOR FAN MOTOR BRACKET | - |
| 54 | | LEFT SIDE PANEL | - |
| 56 | | TOP COVER | $57.38 PartSelect |
| 57 | | CONTROL BOX COVER | - |
| 59 | | INVERTER ASSEMBLY | - |
| 60 | | POWER CONTROL BOARD | - |
| 61 | | ELECTRICAL BOX | - |
| 64 | | TERMINAL BLOCK | - |
| 65 | | PARTITION PANEL | - |
| 66 | | OUTDOOR COIL | - |
| 68 |  | REACTOR | $55.29 PartSelect |
| 69 | | R32 COMPRESSOR | - |
| 71 | | OUTDOOR WIRE HARNESS | - |
| 72 | | VIBRATION PADS | - |
| 75 | | 4-WAY VALVE ASSY. | - |
| 76 | | RIGHT SIDE PANEL | - |
| 77 | | STRAIN RELIEF BRACKET | - |
| 78 | | HANDLE | - |
| 80 | | SERVICE VALVE MOUNT | - |
| 81 | | LIQUID SERVICE VALVE | - |
| 82 | | VAPOR SERVICE VALVE | - |
| 83 | | VALVE COVER | - |
| 84 | | WJ27X27115NLA RJ45 | Discontinued |
| 85 |  | DISCHARGE,DEF & AMB TEMP SENSORS | $9.83 ApplianceParts Pro |
| 86 |  | SUCTION SENSOR | - |
| 88 | | ELECTRICAL EXPANSION VALVE | - |
| 90 | | BOTTOM PLATE ASSY. | - |
| 9999 | – | 31-5000276 PM INSTALL INSTRUCTIONS | - |
