Model
GE ASH124CRDWA1
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH124CRDWA1Room Air Conditioner Built In
1 diagram29 parts
Parts Sections (1)
Diagram

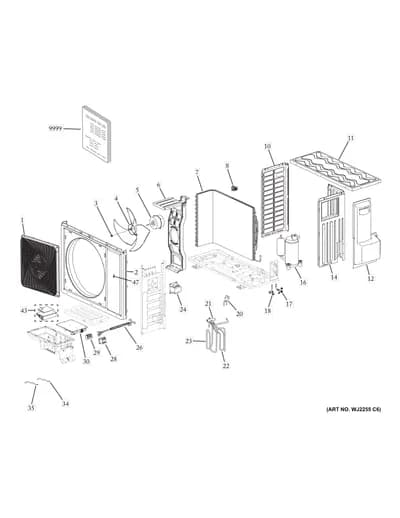

ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WJ71X25114NLA GRILLE | Discontinued |
| 2 | | CASING | - |
| 3 | | FLANGE NUT | - |
| 4 | | FAN BLADE | - |
| 5 |  | OUTDOOR FAN MOTOR | $237.25 PartSelect |
| 6 |  | OUTDOOR FAN MOTOR BRACKET | - |
| 7 | | CONDENSER | - |
| 8 | | SENSOR CLIP | - |
| 10 | | LEFT SIDE PANEL | - |
| 11 | | TOP COVER | - |
| 12 |  | VALVE COVER | - |
| 14 | | RIGHT SIDE PANEL | - |
| 16 | | COMPRESSOR | - |
| 17 | | VAPOR SERVICE VALVE | - |
| 18 | | LIQUID SERVICE VALVE | - |
| 20 |  | ELECTRONIC EXPANSION VALVE | - |
| 21 |  | 4-WAY VALVE | $66.30 PartSelect |
| 22 | | DISCHARGE TUBE | - |
| 23 | | SUCTION TUBE | - |
| 24 |  | REACTOR | $55.29 PartSelect |
| 26 |  | WJ35X25394replaces WJ35X23003 OUTDOOR WIRE HARNESS | $59.47 PartSelect |
| 28 |  | TERMINAL BLOCK INDOOR | $20.36 PartSelect |
| 29 | | TERMINAL BLOCK SUPPLY | - |

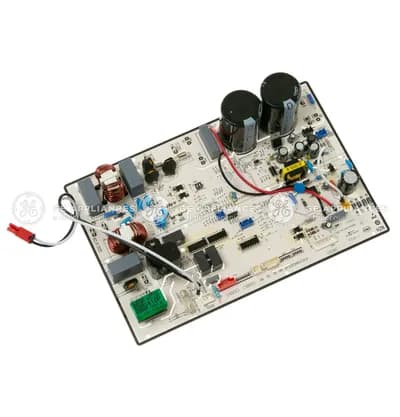

| 30 |  | OUTDOOR POWER CONTROL BOARD | - |
| 34 |  | SUCTION SENSOR | - |
| 35 |  | DISCHARGE,DEF & AMB TEMP SENSORS | $9.83 ApplianceParts Pro |

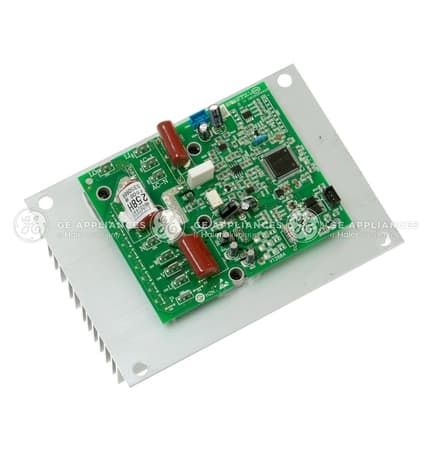

| 43 |  | INVERTER ASSEMBLY | $112.53 RepairClinic |
| 47 | | FRONT SERVICE PANEL | - |
| 9999 | – | 31-5000276 PM INSTALL INSTRUCTIONS | - |
