Model
GE ASH124TRDFA2
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH124TRDFA2Room Air Conditioner Built In
1 diagram37 parts
Parts Sections (1)
Diagram

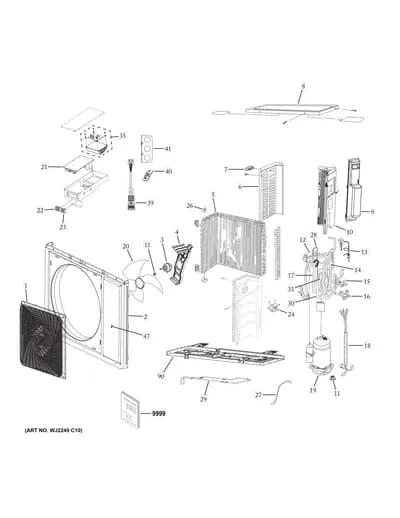

ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GRILL | - |
| 2 | | CASING | - |
| 3 |  | OUTDOOR FAN MOTOR | $237.25 PartSelect |
| 4 | | OUTDOOR FAN MOTOR BRACKET | - |
| 5 | | CONDENSER | - |
| 6 | | LEFT SIDE PANEL | - |
| 7 | | HANDLE | - |
| 8 | | TOP COVER | - |
| 9 | | VALVE COVER | - |
| 10 | | RIGHT SIDE PANEL | - |
| 11 | | FLANGE NUT | - |
| 12 | | 4-WAY VALVE TUBE ASSEMBLY | - |
| 13 | | EEV VALVE | - |
| 14 | | DISCHARGE TUBE | - |
| 15 | | VAPOR SERVICE VALVE | - |
| 16 | | VAPOR SERVICE VALVE | - |
| 17 |  | SUCTION TUBE | - |
| 18 | | OUTDOOR WIRE HARNESS | - |
| 19 | | COMPRESSOR | - |
| 20 | | FAN BLADE | - |
| 21 | | POWER CONTROL BOARD | - |

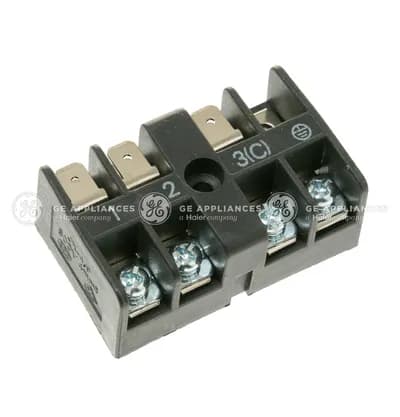

| 22 |  | TERMINAL BLOCK INDOOR | $20.36 PartSelect |
| 23 | | TERMINAL BLOCK | - |
| 24 | | REACTOR | - |
| 26 | | SENSOR CLIP | - |
| 27 |  | SUCTION SENSOR | - |
| 28 | | CAP TUBE | - |
| 29 | | COMPRESSOR HEATER | - |
| 30 |  | SUCTION TUBE 1 | - |
| 31 | | GAS-LIQUID SEPARATOR | - |
| 35 | | INVERTER | - |
| 39 | | WJ27X27115NLA RJ45 | Discontinued |
| 40 | | COVER | - |
| 41 | | STRAIN RELIEF BRACKET | - |
| 47 | | FRONT SERVICE PANEL | - |
| 90 | | BOTTOM PLATE ASSY. | - |
| 9999 | – | 31-5000772 PM INSTALL INSTRUCTIONS | - |
