Model
GE ASH18DBS1
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH18DBS1Room Air Conditioner Built In
1 diagram46 parts
Parts Sections (1)
Diagram

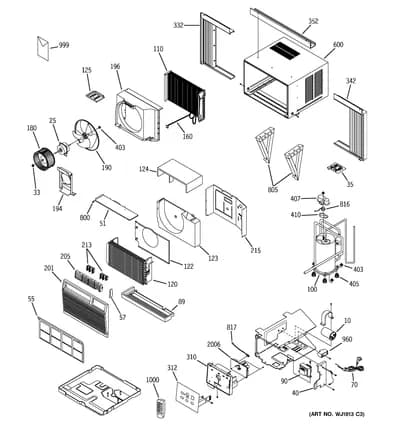

ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
46 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 10 | – | WJ20X10050 CAPACITOR | - |
| 25 | – | WJ94X10134 MOTOR | - |
| 33 | – | WJ01X10147 NUT-WASHER | - |
| 35 | – | WJ01X10181 SCREW ASS'Y | - |
| 40 | – | WJ66X10049 BRACKET-CONTROL | - |
| 51 | – | WJ66X10045 BRACKET COVER ASS'Y | - |
| 55 | – | WJ85X10056 FILTER | - |
| 57 | – | WJ01X10231 CLIP FILTER | - |
| 70 | – | WJ35X10045 POWER-CORD | - |
| 89 | – | WJ89X10036 TRAY DRAIN | - |
| 90 | – | WJ27X10045 TRANSFORMER | - |
| 100 |  | ROTARY COMPRESSOR | - |
| 110 | | CONDENSER ASS'Y | - |
| 120 | – | WJ87X10094 EVAPORATOR ASS'Y | - |
| 122 | – | WJ73X10052 CASE BLOWER FRONT | - |
| 123 | – | WJ73X10053 CASE BLOWER LOW | - |
| 124 | – | WJ73X10054 CASE BLOWER UP | - |
| 125 | – | WJ71X10234 PLATE REINF | - |
| 160 | – | WJ53X10064 TUBE CAPIILLARY | - |
| 180 | | BLOWER | - |
| 190 | | WJ73X10028NLA FAN BLADE O.D | Discontinued |
| 194 | | MOUNTER-MOTOR | - |
| 196 | | CASE-COND | - |
| 201 | – | WJ71X10294 PANEL FRONT | - |
| 205 | – | WJ71X10295 FRAME BLADE | - |
| 213 | – | WJ71X10236 BLADE V | - |
| 215 | – | WJ71X10237 PLATE PARTITION | - |
| 310 | | PANEL-CONTROL | - |
| 312 | – | WJ26X10089 MEMBRANE PAD | - |
| 332 | – | WJ86X10046 SHUTTER LF | - |
| 342 | – | WJ86X10047 SHUTTER RH | - |
| 352 | – | WJ86X10045 SHUTTER-ANGLE UPP | - |
| 403 | – | WJ01X10119 NUT WASHER, FAN | - |
| 405 | – | WJ01X10116 GROMMET-ISOLATOR | - |
| 407 | – | WJ86X10024 COVER-TERMINAL | - |
| 410 | – | WJ43X10018 GASKET | - |
| 600 | – | WJ90X10033 CABINET | - |
| 800 | – | WJ71X10239 BRACKET PANEL | - |
| 805 | – | WJ66X10046 INSTALL-BRK MOUNT | - |
| 816 | | OVERLOAD PROTECTOR | - |
| 817 | | WJ28X10029NLA THERMOSTAT | Discontinued |
| 960 | – | WJ20X10051 CAPACITOR 6 MFD | - |
| 999 | – | 31-60820 MINI MANUAL | - |
| 999 | – | 49-7425 USE & CARE MANUAL | - |
| 1000 | | WJ26X10084NLA REMOCON ASS'Y | Discontinued |
| 2006 | | MAIN PCB ASS'Y | - |
