Model
GE ASH18DDS1
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH18DDS1Room Air Conditioner Built In
1 diagram48 parts
Parts Sections (1)
Diagram

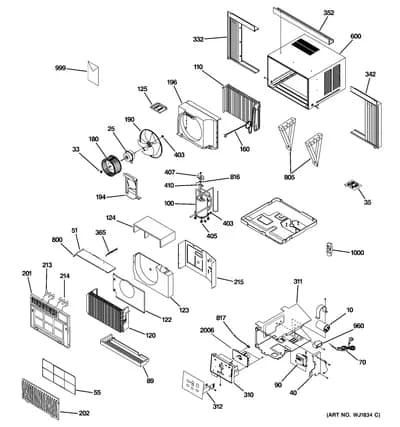

ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
48 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 10 | – | WJ20X10050 CAPACITOR | - |
| 25 | – | WJ94X10134 MOTOR | - |
| 33 | – | WJ01X10147 NUT-WASHER | - |
| 35 | – | WJ01X10181 SCREW ASS'Y | - |
| 40 | – | WJ66X10049 BRACKET-CONTROL | - |
| 51 | – | WJ66X10045 BRACKET COVER ASS'Y | - |
| 55 | – | WJ85X10097 FILTER | - |
| 70 | – | WJ35X10045 POWER-CORD | - |
| 89 | – | WJ89X10036 TRAY DRAIN | - |
| 90 |  | TRANSFORMER | - |
| 100 | | ROTARY COMPRESSOR:20 | - |
| 110 | | ASSY COND | - |
| 120 | – | WJ87X10094 EVAPORATOR ASS'Y | - |
| 122 | – | WJ73X10052 CASE BLOWER FRONT | - |
| 123 | – | WJ73X10053 CASE BLOWER LOW | - |
| 124 | – | WJ73X10054 CASE BLOWER UP | - |
| 125 | – | WJ71X10234 PLATE REINF | - |
| 160 | | TUBE-CAPILLARY | - |
| 180 | | BLOWER | - |
| 190 | | WJ73X10028NLA FAN BLADE O.D | Discontinued |
| 194 | | MOUNTER-MOTOR | - |
| 196 | | CASE-COND | - |
| 201 | – | WJ71X10371 PANEL FRONT | - |
| 202 | – | WJ71X10372 GRILLE AIR INLET | - |
| 213 | – | WJ71X10373 BLADE V | - |
| 214 | – | WJ71X10374 LINK BLADE V | - |
| 215 | – | WJ71X10237 PLATE PARTITION | - |
| 310 | – | WJ07X10122 PANEL-CONTROL | - |
| 311 | – | WJ07X10111 CASE CONTROL | - |
| 312 | – | WJ26X10140 MEMBRANE PAD | - |
| 332 | – | WJ86X10046 SHUTTER LF | - |
| 342 | – | WJ86X10047 SHUTTER RH | - |
| 352 | – | WJ86X10045 SHUTTER-ANGLE UPP | - |
| 365 | – | WJ14X10053 LEVER DAMPER | - |
| 403 | – | WJ01X10119 NUT WASHER, FAN | - |
| 405 | – | WJ01X10116 GROMMET-ISOLATOR | - |
| 407 | – | WJ86X10024 COVER-TERMINAL | - |
| 410 | – | WJ43X10018 GASKET | - |
| 600 | – | WJ90X10033 CABINET | - |
| 800 | – | WJ71X10239 BRACKET PANEL | - |
| 805 | – | WJ66X10046 INSTALL-BRK MOUNT | - |
| 816 | – | WJ23X10061 OLP | - |
| 817 | | WJ27X10050NLA THERMISTOR | Discontinued |
| 960 | – | WJ20X10051 CAPACITOR 6 MFD | - |
| 999 | – | 31-60999 MINI-MANUAL | - |
| 999 | – | 49-7443 USE & CARE MANUAL | - |
| 1000 | | WJ26X10084NLA REMOCON ASS'Y | Discontinued |
| 2006 | | ASS'Y MAIN PCB | - |
