GE ASH18DES1
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH18DES1Room Air Conditioner Built In
1 diagram45 parts
Parts Sections (1)
Diagram

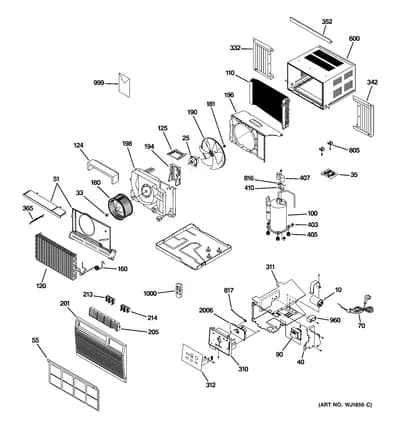

ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
45 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 10 | – | WJ20X10050 CAPACITOR | - |
| 25 | – | WJ94X10199 MOTOR | - |
| 33 | – | WJ01X10147 NUT-WASHER | - |
| 35 | – | WJ01X10181 SCREW ASS'Y | - |
| 40 | – | WJ66X10064 BRACKET-CONTROL | - |
| 51 | – | WJ76X10181 PLATE EVAP CASING | - |
| 55 |  | WJ85X10114NLA FILTER | Discontinued |
| 70 | – | WJ35X10045 POWER-CORD | - |
| 90 | – | WJ27X10063 TRANSFORMER | - |
| 100 | | ROTARY COMPRESSOR:20 | - |
| 110 | | ASM COND | - |
| 120 | – | WJ87X10147 ASSY EVAPORATOR | - |
| 124 | – | WJ73X10132 CASE BLOWER UP | - |
| 125 | | PLATE REINF | - |
| 160 | – | WJ53X10118 TUBE CAPI,ASSY | - |
| 180 | | BLOWER | - |
| 181 | – | WJ01X10228 NUT-FLANGE | - |
| 190 | | FAN BLADE | - |
| 194 | – | WJ95X10008 MOUNTER-MOTOR | - |
| 196 | – | WJ76X10180 CASE-COND | - |
| 198 | – | WJ76X10186 ASSY PLATE PARTITION | - |
| 201 | – | WJ71X10426 PANEL FRONT | - |
| 205 | – | WJ71X10435 FRAME BLADE | - |
| 213 | – | WJ71X10427 BLADE V(A) | - |
| 214 | – | WJ71X10428 BLADE V(B) | - |
| 310 | – | WJ07X10148 PANEL-CONTROL | - |
| 311 | – | WJ07X10147 CASE CONTROL | - |
| 312 | – | WJ26X10180 MEMBRANE PAD | - |
| 332 | – | WJ86X10046 SHUTTER LF | - |
| 342 | – | WJ86X10047 SHUTTER RH | - |
| 352 | – | WJ86X10130 SHUTTER-ANGLE UPP | - |
| 365 | – | WJ14X10064 LEVER DAMPER | - |
| 403 | – | WJ01X10119 NUT WASHER, FAN | - |
| 405 | – | WJ01X10116 GROMMET-ISOLATOR | - |
| 407 | – | WJ86X10024 COVER-TERMINAL | - |
| 410 | – | WJ43X10018 GASKET | - |
| 600 | – | WJ90X10083 CABINET | - |
| 805 | – | WJ66X10065 INSTALL-BRK MOUNT | - |
| 816 | – | WJ23X10061 OLP | - |
| 817 | | WJ27X10050NLA THERMISTOR | Discontinued |
| 960 | – | WJ20X10051 CAPACITOR 6 MFD | - |
| 999 | – | 31-61092 MINI MANUAL | - |
| 999 | – | 49-7473 USE & CARE MANUAL | - |
| 1000 | | WJ26X10084NLA REMOCON ASS'Y | Discontinued |
| 2006 | – | WJ26X10179 ASS'Y MAIN PCB | - |
