Model
GE ASH18DKS1
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH18DKS1Room Air Conditioner Built In
1 diagram44 parts
Parts Sections (1)
Diagram

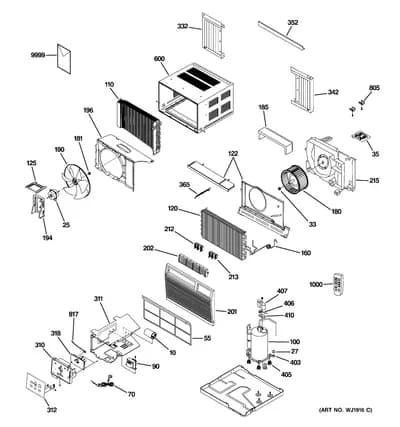

ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 10 |  | CAPACITOR | - |
| 25 | | MOTOR FAN | - |
| 27 | – | WJ01X10299 NUT | - |
| 33 | – | WJ01X10147 NUT-WASHER | - |
| 35 | – | WJ01X10307 ACCESSORY ASM | - |
| 55 | | AIR FILTER | - |
| 70 | | POWER CORD | - |
| 90 | | TRANSFORMER | - |
| 100 | – | WJ98X10214 COMPRESSOR | - |
| 110 | | ASM COND | - |
| 120 | | EVAPORATOR ASM | - |
| 122 | – | WJ76X10248 PLATE EVAP CASING | - |
| 125 | | PLATE REINF | - |
| 160 | – | WJ53X10152 CAPILLARY TUBE ASM | - |
| 180 | – | WJ73X10165 BLOWER | - |
| 181 | – | WJ01X10119 NUT WASHER, FAN | - |
| 185 | – | WJ73X10164 CASE EVAP UP | - |
| 190 | | FAN BLADE | - |
| 194 | | MOUNT MOTOR | - |
| 196 | – | WJ76X10190 CASE-COND | - |
| 201 | | PANEL FRONT | - |
| 202 | | FRAME BLADE | - |
| 212 | – | WJ71X10564 BLADE V A | - |
| 213 | – | WJ71X10565 BLADE V | - |
| 215 | | ASM PARTITION | - |
| 310 | | PANEL CONTROL | - |
| 311 | – | WJ07X10147 CASE CONTROL | - |
| 312 | | SWITCH MEMBRANE | - |
| 318 | | ASM MAIN PCB | - |
| 332 | – | WJ86X10046 SHUTTER LF | - |
| 342 | – | WJ86X10047 SHUTTER RH | - |
| 352 | – | WJ86X10130 SHUTTER-ANGLE UPP | - |
| 365 | – | WJ14X10076 LEVER DAMPER | - |
| 403 | – | WJ01X10298 WASHER COMP | - |
| 405 | – | WJ01X10306 GROMMET ISOLATOR | - |
| 406 | – | WJ23X10097 OVERLOAD PROTECTOR | - |
| 407 | – | WJ86X10126 COVER TERMINAL | - |
| 410 | – | WJ43X10052 GASKET | - |
| 600 | | ASM CABINET | - |
| 805 | – | WJ66X10034 INSTALLATION BRACKET | - |
| 817 | | WJ27X10050NLA THERMISTOR | Discontinued |
| 1000 | | REMOTE CONTROL | $50.22 RepairClinic |
| 9999 | – | 31-61375 MINI MANUAL | - |
| 9999 | – | 49-7555 USE & CARE | - |
