Model
GE ASH218JCDDA1
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH218JCDDA1Room Air Conditioner Built In
1 diagram42 parts
Parts Sections (1)
Diagram

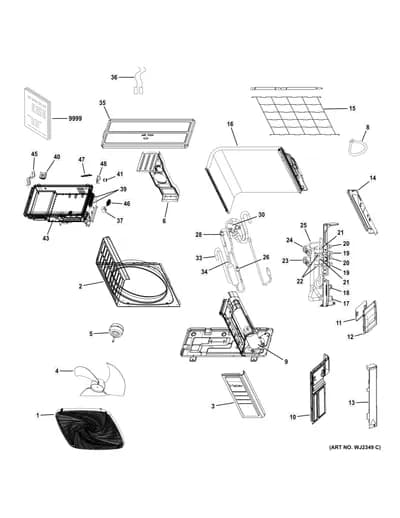

ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

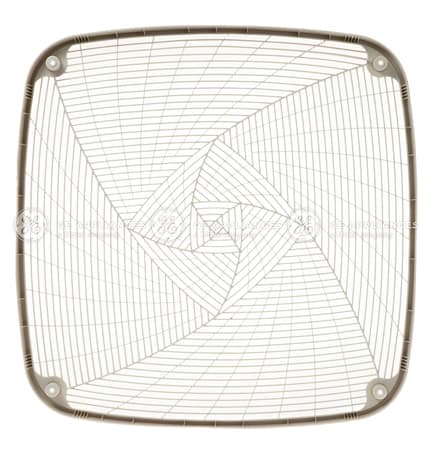

| 1 |  | OUTLET GRILL | - |
| 2 |  | FRONT PANEL | - |
| 3 | | FRONT SERVICE PANEL | - |
| 4 | | FAN BLADE | - |
| 5 | | OUTDOOR FAN MOTOR | - |
| 6 | | MOTOR BRACKET | - |
| 8 | | HEATER | - |
| 9 | | COMPRESSOR | - |
| 10 | | RIGHT SERVICE PANEL | - |
| 11 | | HANDLE BAFFLE | - |
| 12 | | HANDLE | - |
| 13 | | VALVE COVER | - |
| 14 | | BACK PANEL | - |
| 15 | | COIL GUARD - REAR | - |
| 16 | – | WJ88X37693 CONDENSER ASSY | - |
| 17 | | VAPOR SERVICE VALVE | - |

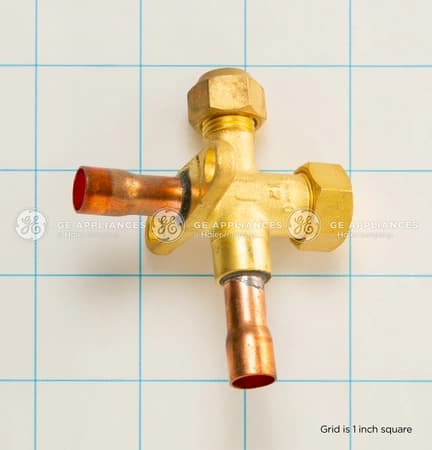

| 18 |  | LIQUID SERVICE VALVE | - |
| 19 | | GAS PIPE 3/8 -9.52mm | - |
| 20 | | LIQUID PIPE 1/4- 6,35 | - |
| 21 | | LIQUID PIPE SENSOR YELLOW | - |
| 22 | | VAPOR PIPE SENSOR RED | - |
| 23 | | E.E.V-B COIL | - |
| 24 |  | E.E.V-A COIL | - |
| 25 |  | EXPANSION VALVE BODY | - |
| 26 |  | HIGH PRESSURE SWITCH | - |
| 28 |  | LOW PRESSURE SWITCH | - |
| 30 |  | 4-WAY VALVE | - |
| 33 | | SUCTION PIPE | - |
| 34 |  | DISCHARGE PIPE | - |
| 35 | | TOP COVER | - |
| 36 | | SENSOR ASSY.(TC,TS,TA,TD,TE) | - |
| 37 | | TERMINAL BLOCK SUPPLY | - |
| 39 | | SMALL SERVICE PCB | - |
| 40 | | INVERTER DRIVER MODULE PCB | - |
| 41 |  | REACTOR | - |
| 43 | | COMMUNICATION TERMINAL BLOCK | - |
| 45 | | MAIN HARNESS ASSY | - |
| 46 | | TERMINAL BLOCK (INDOOR) | - |
| 47 | | OUTDOOR POWER CONTROL BOARD | - |
| 48 | | SERVICE PORT BOARD | - |
| 9999 | – | 31-5000651 PM ATTENTION INSTALLER | - |
| 9999 | – | 31-5000560 PM INSTALL INSTRUCTIONS | - |
