Model
GE ASH220NCDWA
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH220NCDWARoom Air Conditioner Built In
1 diagram37 parts
Parts Sections (1)

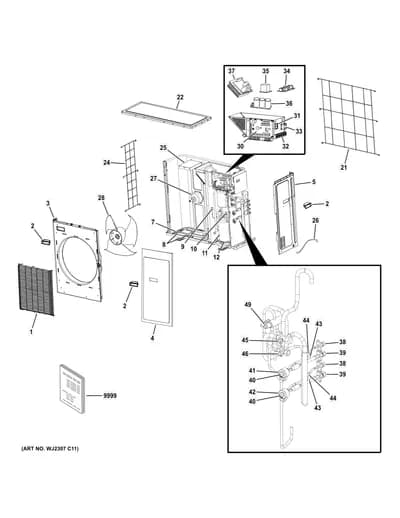

Diagram
ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WJ71X25036NLA FRONT GRILLE | Discontinued |
| 2 | | HANDEL | - |
| 3 | | WJ71X25174NLA FRONTPANEL | Discontinued |
| 4 |  | FRONT SERVICE PANEL | - |
| 5 |  | RIGHT SIDE PANEL | - |
| 7 | | HEATING ELEMENT | - |
| 8 | | BAFFLE PLATE | - |
| 9 |  | LOW PRESSURE SWITCH | - |
| 10 |  | HIGH PRESSURE SWITCH | - |
| 11 | | WJ98X25048NLA COMPRESSOR | Discontinued |
| 12 | | HEATER BAND | - |
| 21 | | REAR GRILLE | - |
| 22 | | TOP PANEL | - |
| 24 | | WJ71X25037NLA LEFT GRILLE | Discontinued |
| 25 | | OUTDOOR FAN MOTOR BRACKET | - |
| 26 | | SENSOR ASSY.(TC,TS,TA,TD,TE) | - |
| 27 | | FAN MOTOR | - |
| 28 | | WJ73X25042NLA FAN BLADE | Discontinued |

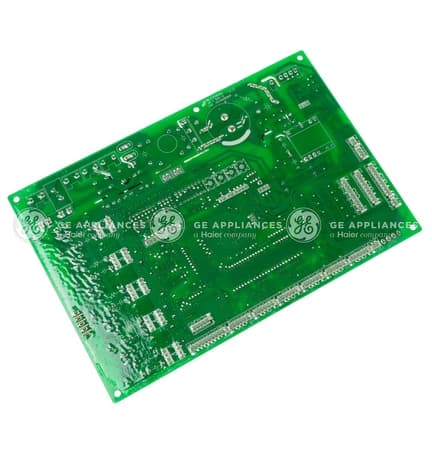

| 30 |  | OUTDOOR POWER CONTROL BOARD | - |

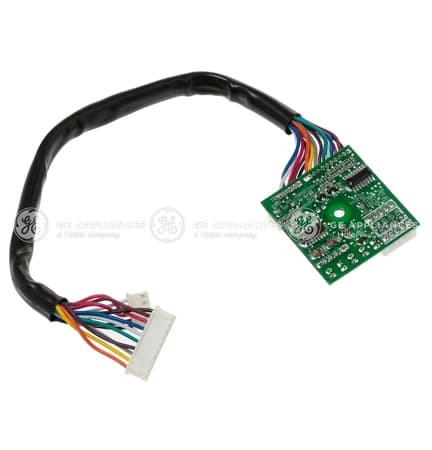

| 31 |  | SERVICE POWER CONTROL BOARD | - |
| 32 | | TERMINAL BLOCK (INDOOR) | - |
| 33 | | Terminal block (SUPPLY) | - |

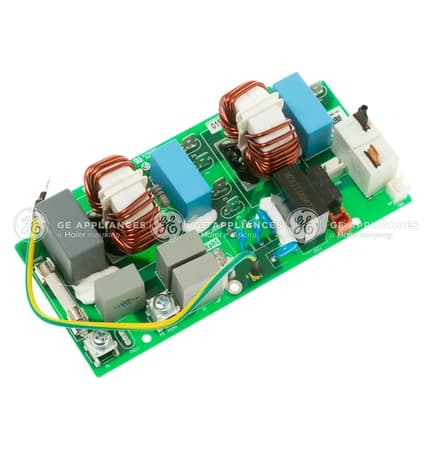

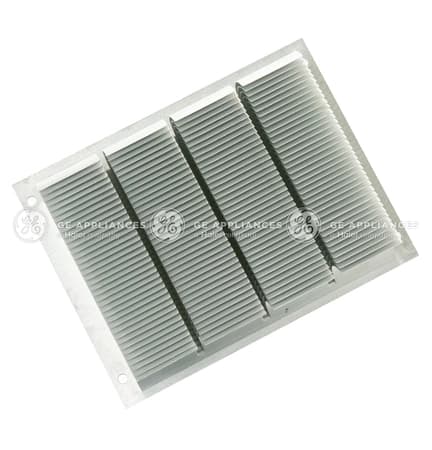

| 34 |  | FILTER POWER CONTROL BOARD | - |
| 35 |  | REACTOR | - |
| 36 | | CAPACITOR POWER CONTROL BOARD | - |
| 37 |  | INVERTER DRIVER MODULE | - |
| 38 | | GAS PIPE 3/8 -9.52mm | - |
| 39 | | LIQUID PIPE 1/4- 6,35 | - |
| 40 |  | EXPANSION VALVE BODY | - |
| 41 | | E.E.V-B COIL | - |
| 42 |  | E.E.V-A COIL | - |
| 43 | | LIQUID PIPE SENSOR YELLOW | - |
| 44 | | VAPOR PIPE SENSOR RED | - |
| 45 | | LIQUID STOP VALVE | - |
| 46 | | GAS STOP VALVE | - |
| 49 |  | 4-WAY VALVE | - |
| 9999 | – | 31-5000275 PM INSTALL INSTRUCTIONS | - |
