Model
GE ASH24DAD1
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH24DAD1Room Air Conditioner Built In
1 diagram45 parts
Parts Sections (1)
Diagram

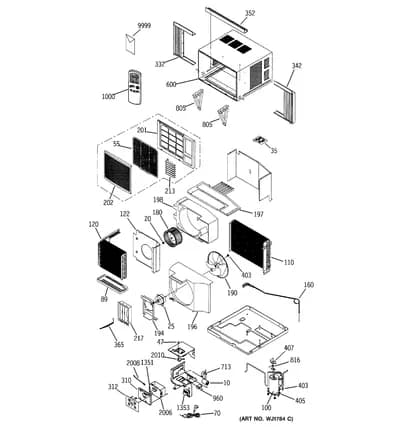

ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
45 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 10 |  | CAPACITOR | - |
| 20 | – | WJ01X10147 NUT-WASHER | - |
| 25 | | MOTOR | - |
| 35 | – | WJ86X10048 HARD WARE PACK | - |
| 47 | – | WJ01X10144 ARM BLADE | - |
| 55 | – | WJ85X10025 GUARD AIR-FILTER | - |
| 70 | – | WJ35X10042 POWER CORD | - |
| 89 | – | WJ89X10033 TRAY-DRAIN | - |
| 100 | – | WJ98X10046 COMPRESSOR | - |
| 110 | | COND ASS'Y | - |
| 120 | – | WJ87X10041 EVAP ASS'Y | - |
| 122 | – | WJ76X10061 PLATE E/CASING | - |
| 160 | | TUBE-CAPILLARY | - |
| 180 | | BLOWER | - |
| 190 | | WJ73X10028NLA FAN BLADE O.D | Discontinued |
| 194 | | MOUNTER-MOTOR | - |
| 196 | | CASE-COND | - |
| 197 | | COVER-EVAP | - |
| 198 | – | WJ76X10087 CASE EVAP | - |
| 201 | | GRILL FRAME | - |
| 202 | – | WJ71X10153 GRILLE-AIR INLET | - |
| 213 | – | WJ71X10140 LOUVERS HORIZONTAL | - |
| 217 | – | WJ71X10215 LOUVER ASSY | - |
| 310 | | PANEL CONTROL | - |
| 312 | | MEMBRANE SWITCH | $88.83 Parts Dr |
| 332 | – | WJ86X10046 SHUTTER LF | - |
| 342 | – | WJ86X10047 SHUTTER RH | - |
| 352 | – | WJ86X10045 SHUTTER-ANGLE UPP | - |
| 365 | – | WJ14X10019 LEVER-DAMPER | - |
| 403 | – | WJ01X10153 NUT-WASHER | - |
| 405 | – | WJ01X10112 GROMMET-ISOLATOR | - |
| 407 | – | WJ86X10014 COVER-TERMINAL | - |
| 600 | – | WJ90X10033 CABINET | - |
| 713 | – | WJ03X10022 CAPACITOR CLIP | - |
| 805 | – | WJ68X10018 INSTALLATION BRACKET | - |
| 816 | | OVERLOAD PROTECTOR | - |
| 960 | – | WJ20X10051 CAPACITOR 6 MFD | - |
| 1000 | | REMO CONTROL | - |
| 1351 | | FUSE(3.15A) | - |
| 1353 | | TRANSFORMER | - |
| 2006 | | MAIN PCB | - |
| 2008 | – | WJ27X10031 THERMISTOR | - |
| 2010 | – | WJ94X10071 LOUVER MOTOR | - |
| 9999 | – | 31-60718 MINI-MANUAL | - |
| 9999 | – | 49-7405 USE & CARE MANUAL | - |
