Model
GE ASH4248UCDDA1
Room Air Conditioner Built In
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ASH4248UCDDA1Room Air Conditioner Built In
1 diagram41 parts
Parts Sections (1)
Diagram

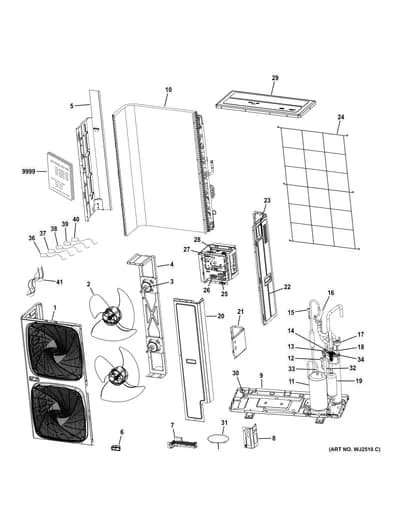

ROOM AIR CONDITIONER
Parts in ROOM AIR CONDITIONER
41 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | FRONT PANEL ASSY. | - |
| 2 | | FAN BLADE | - |
| 3 | | FAN MOTOR(DC) | - |
| 4 | | FAN MOTOR BRACKET | - |
| 5 | | LEFT SIDE PANEL | - |
| 6 | | HANDEL | - |
| 7 | | VALVE BRACKET | - |
| 8 | | FRONT PASSTHROUGH PANEL | - |
| 9 | – | WJ76X32430 BOTTOM BASE PAN | - |
| 10 | | CONDENSOR ASSY | - |
| 11 | | COMPRESSOR | - |
| 12 |  | LOW PRESSURE SWITCH | - |
| 13 | | LIQUID SERVICE VALVE | - |
| 14 | | VAPOR SERVICE VALVE | - |
| 15 |  | HIGH PRESSURE SWITCH | - |
| 16 | | REVERSING VALVE BODY | - |
| 17 | | ELECTRONIC EXPANSION VALVE | - |
| 18 | | STRAINER | - |
| 19 | | ACCUMULATOR | - |
| 20 | | LEFT CORNER ACCESS PANEL | - |
| 21 | | REAR PASSTHROUGH PANEL | - |
| 22 | | RIGHT SIDE PANEL | - |
| 23 | | DIAGNOSTIC BOARD COVER | - |
| 24 | | CONDSENDING COIL GUARD | - |
| 25 | | TERMINAL BLOCK | - |
| 26 | | Terminal block (SUPPLY) | - |
| 27 | | PCB | - |
| 28 | | INVERTER BOARD | - |
| 29 | | TOP COVER | - |
| 30 | | BASE PAN HEATER | - |
| 31 | | COMPRESSOR HEATER | - |
| 32 | | SUCTION PIPE | - |
| 33 | – | WJ53X31326 DISCHARGING PIPE | - |
| 34 | – | WJ53X33553 VALVE SEAT GROUP | - |
| 36 | | DEFROST TEMP. SENSOR | - |
| 37 | | DISCHARGE TEMP. SENSOR | - |
| 38 | | AMBIENT TEMP. SENSOR | - |
| 39 | | EVAPORATOR SENSOR | - |
| 40 | | DEFROST TEMP.SENSOR | - |
| 41 | | WIRING HARNESS | - |
| 9999 | – | 31-5000788 PM INSTALL INSTRUCTIONS | - |
