ModelGE
AZ31H12E4DV6Zoneline
2 diagrams97 parts

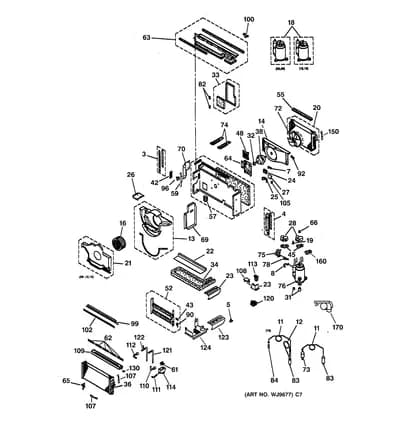

Parts Sections (2)
Diagram

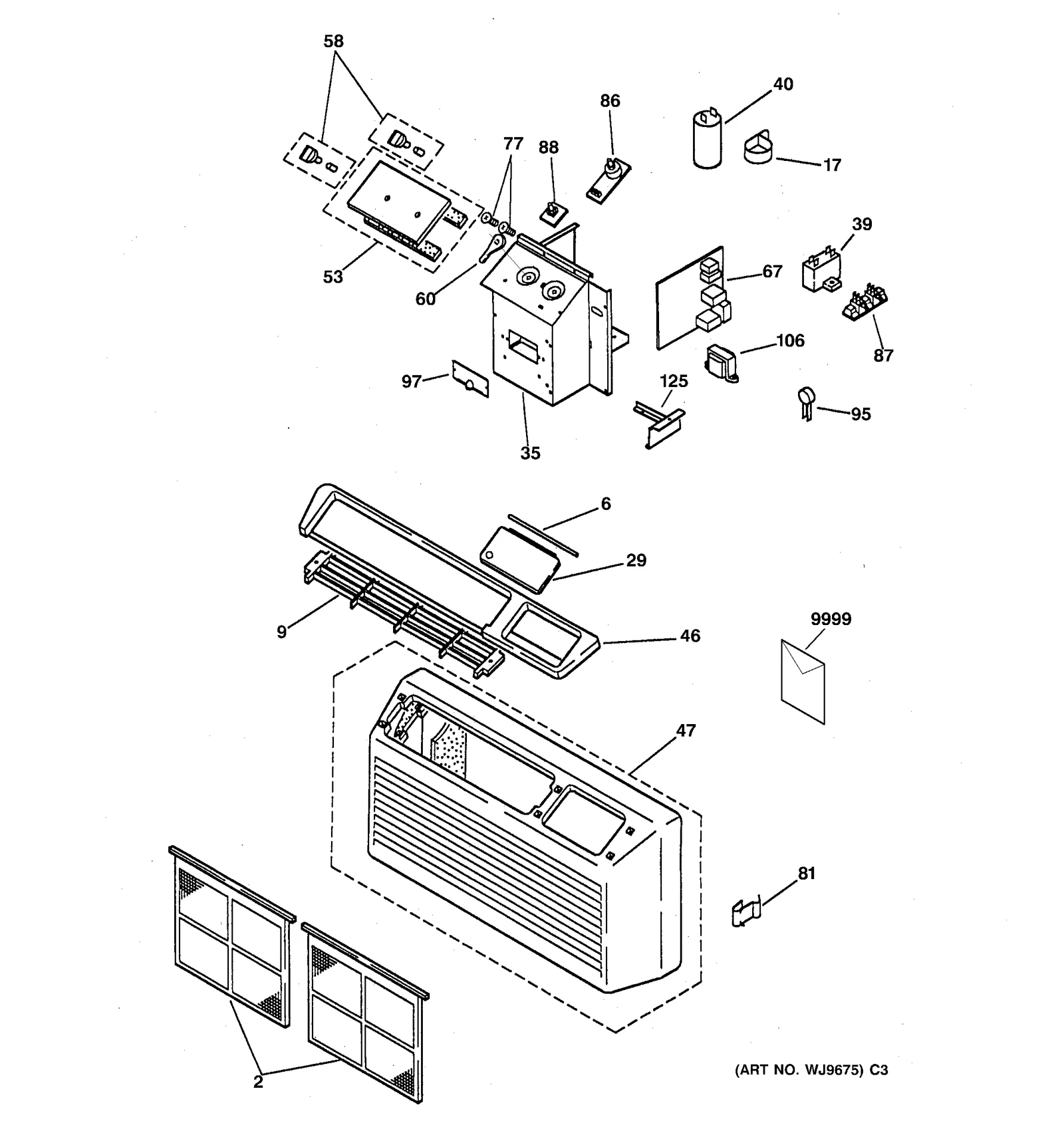

CONTROLS & GRILL ASSEMBLY
Parts in CONTROLS & GRILL ASSEMBLY
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 | – | WP85X0015 AIR FILTER ASM | - |
| 6 |  | WP4X4replaces WP04X0004 HINGE PIN CONTROL DOOR | $10.32 Parts Dr |
| 9 | | WP71X0046NLA GRILLE ASSY | Discontinued |
| 17 | – | WP03X0013 CAPACITOR CLAMP | - |
| 29 | – | WP71X0044 DOOR CONTROL | - |
| 35 | | WP79X0075NLA ELECT.COMPONENT BOX ASM. | Discontinued |
| 39 | | WP20X37replaces WP20X0037 CAPACITOR | - |
| 40 | – | WP20X0040 CAPACITOR | - |
| 46 | | WP71X45replaces WP71X0045 GRILLE-COVER | - |
| 47 | | WP70X0137NLA FRONT BAFFLE ASM | Discontinued |
| 53 | | WP7X68replaces WP07X0069 ESCUTCHEON | - |
| 58 | – | WP12X0014 KNOB ASM | - |
| 60 | – | WP01X0043 STOP LINK | - |
| 67 | | WP29X0062NLA MAIN CIRCUIT BOARD | Discontinued |
| 77 | – | WP01X0024 SHOULDER SCREW | - |
| 81 | | WP02X0036NLA CLIP | Discontinued |
| 86 |  | WP28X56replaces WP28X0056 MAIN SWITCH ASM | - |
| 87 | | WP3X11replaces WP03X0011 TERMINAL BASE | - |
| 88 | | WP26X42replaces WP26X0042 THERMOSTAT ROOM | - |
| 95 | | WP27X54replaces WP27X0041 VARISTOR | - |
| 97 | – | WP79X0074 COVER PLATE, ELEC. BOX | - |
| 106 | – | WP27X0049 TRANSFORMER | - |
| 125 | – | WP01X0042 MTG PLATE | - |
| 9999 | – | 31-60194 MINI-MANUAL | - |
| 9999 | – | 49-7314 USE & CARE BOOK | - |
