Model
GE AZ31H15EADV1
Zoneline
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
AZ31H15EADV1Zoneline
2 diagrams98 parts

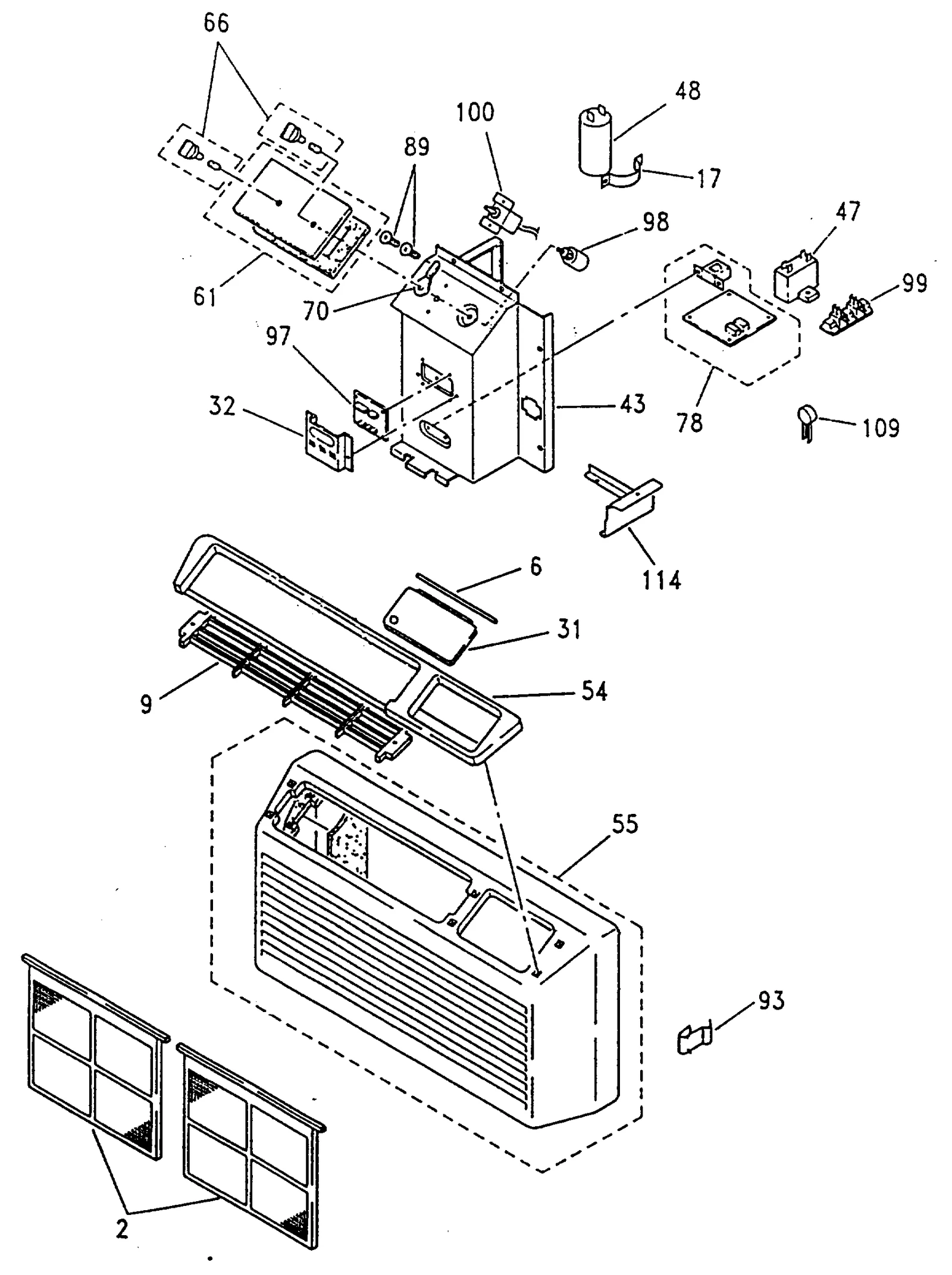

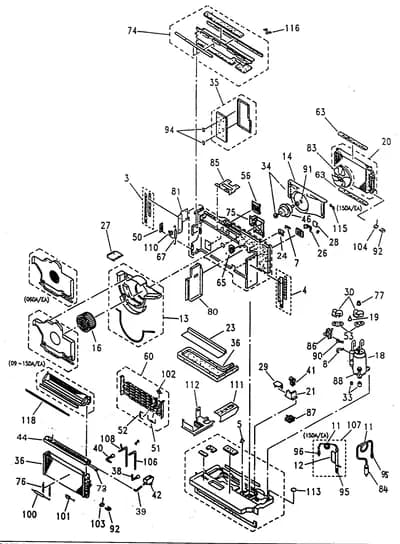

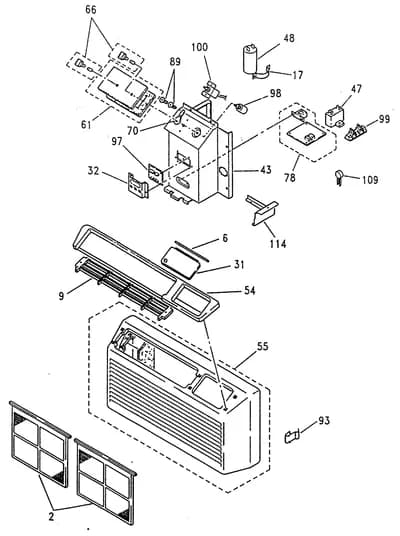

Parts Sections (2)
Diagram
Parts List
Parts in Parts List
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 | – | WP85X0015 AIR FILTER ASM | - |
| 6 |  | WP4X4replaces WP04X0004 HINGE PIN CONTROL DOOR | $10.32 Parts Dr |
| 9 | | WP71X0046NLA GRILLE ASSY | Discontinued |
| 17 | – | WP03X0013 CAPACITOR CLAMP | - |
| 31 | – | WP71X0044 DOOR CONTROL | - |
| 32 | – | WP79X0068 COVER SWITCH | - |
| 37 | – | WP70X0121 DRAIN PAN | - |
| 43 | – | WP79X0065 ELECT.COMPONENT BOX ASM. | - |
| 47 | | WP20X37replaces WP20X0037 CAPACITOR | - |
| 48 | – | WP20X0041 CAPACITOR, COMPRESSOR | - |
| 54 | | WP71X45replaces WP71X0045 GRILLE-COVER | - |
| 55 | – | WP70X0110 FRONT BAFFLE ASM | - |
| 61 | | WP7X68replaces WP07X0069 ESCUTCHEON | - |
| 66 | | WP12X9replaces WP12X0009 KNOB ASM | - |
| 70 | – | WP01X0029 STOP LINK | - |
| 78 | – | WP29X0045 SMART BOARD | - |
| 89 | – | WP01X0024 SHOULDER SCREW | - |
| 93 | | WP02X0036NLA CLIP | Discontinued |
| 97 | – | WP26X0036 AUX. CONT. CIR. BD. | - |
| 98 | | WP26X0037NLA SWITCH | Discontinued |
| 99 | | WP3X11replaces WP03X0011 TERMINAL BASE | - |
| 100 | – | WP28X0046 ROOM THERMOSTAT | - |
| 109 | | WP27X54replaces WP27X0041 VARISTOR | - |
| 114 | – | WP01X0042 MTG PLATE | - |
| 160 | – | WP01X0049 GASKET SEAL | - |
| 9999 | – | 49-7251 USE & CARE MANUAL | - |
