Model
GE AZ32H12E2BM1
Zoneline
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
AZ32H12E2BM1Zoneline
4 diagrams113 parts
Parts Sections (4)
Diagram

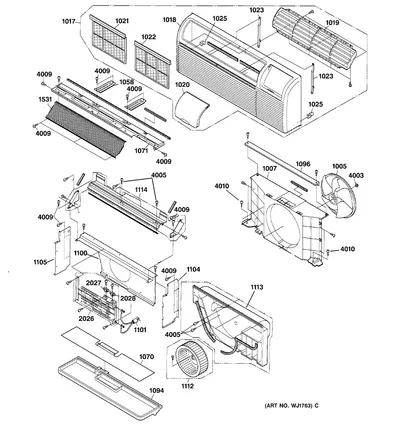

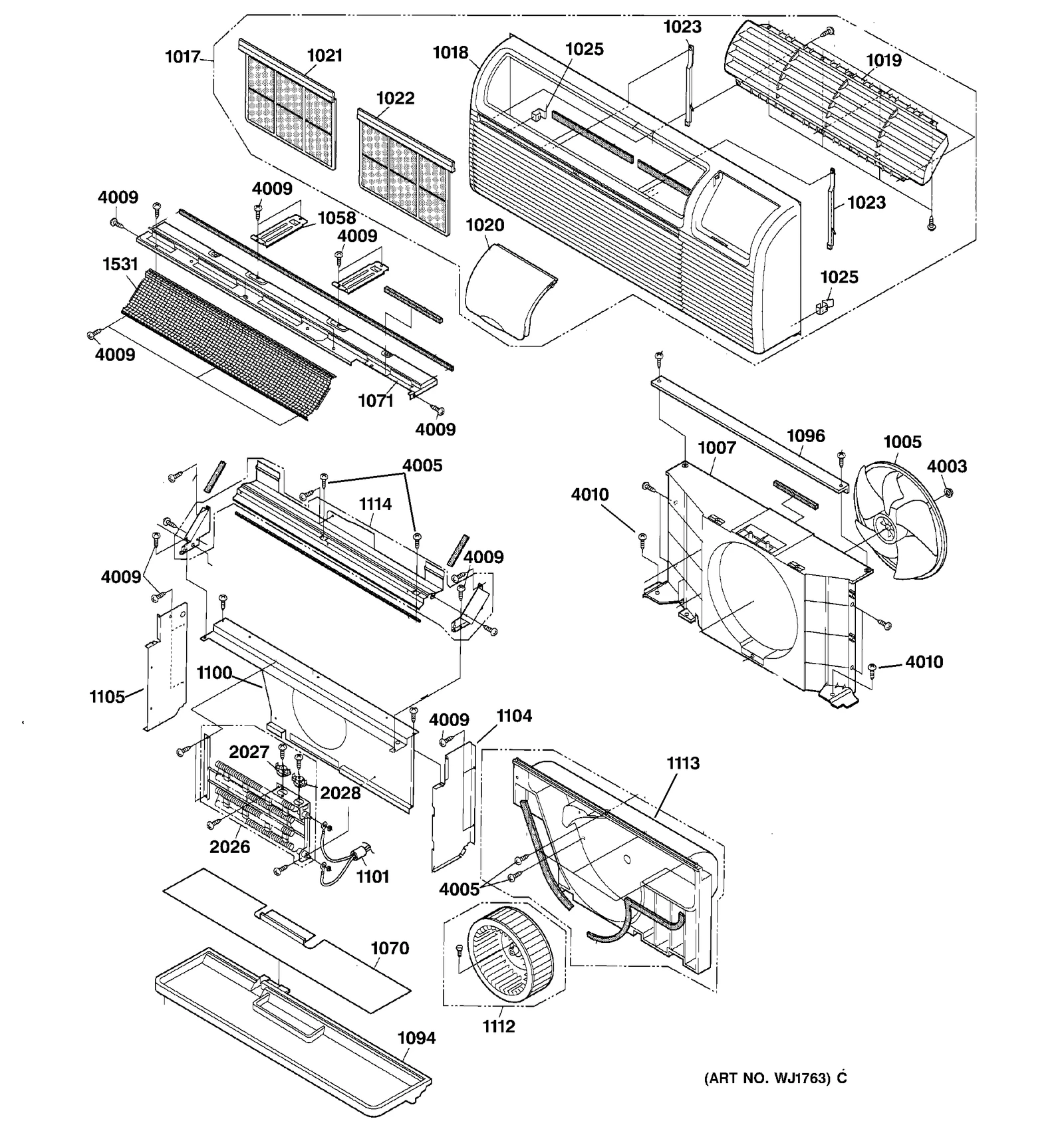

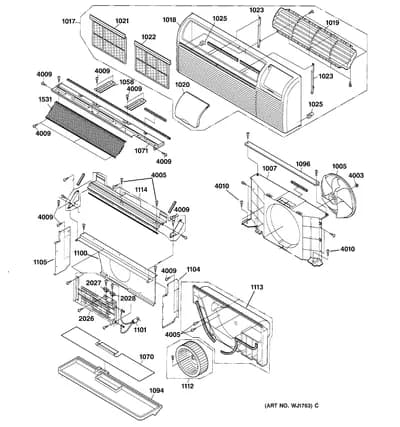

GRILLE & AIR MOVING PARTS
Parts in GRILLE & AIR MOVING PARTS
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1005 |  | WJ73X10037replaces WJ73X10006 PROPELLER FAN | $92.27 Part Advantage |
| 1007 | – | WP76X10001 CONDENSER SHROUD | - |
| 1017 |  | FRONT PANEL ASS'Y | - |
| 1018 | | FRONT PANEL | - |
| 1019 | | WP71X10003NLA R. LOUVER | Discontinued |
| 1020 | | WP71X10004NLA CONTROL COVER | Discontinued |
| 1021 | | WP85X10001NLA AIR FILTER L | Discontinued |
| 1022 | | WP85X10002NLA AIR FILTER R | Discontinued |
| 1023 | – | WJ05X10013 FILTER GUIDE | - |
| 1025 |  | SPRING | $5.87 Parts Dr |
| 1058 | – | WP65X10001 BRACE | - |
| 1070 | – | WP79X10008 DRAIN COVER | - |
| 1071 | – | WP79X10002 BULKHEAD COVER ASSAY | - |
| 1094 | – | WP70X10016 DRAIN TRAY | - |
| 1096 | – | WJ82X10007 SUB ANGLE | - |
| 1100 | – | WP78X10001 ORIFICE | - |
| 1101 | – | WJ40X10010 HEATER INSULATOR | - |
| 1104 | – | WJ82X10009 PLATE R | - |
| 1105 | – | WJ82X10010 PLATE L | - |
| 1112 | | CENTRIFUGAL FAN | - |
| 1113 | – | WP76X10017 SCROLL ASS'Y | - |
| 1114 | – | WP71X10007 PLATE ASS'Y | - |
| 1531 | | WIRE NETTING | - |
| 2026 | – | WP70X10009 HEATER ASS'Y | - |
| 2027 |  | PROTECTOR | $35.65 Parts Dr |
| 2028 |  | WP28X10013replaces WP28X10007 PROTECTOR | $61.56 RepairClinic |
| 4003 |  | WJ01X10041replaces WJ01X0981 SPECIAL NUT | - |
| 4005 | | TAPPING SCREW | - |
| 4009 | | SPECIAL SCREW | - |
| 4010 | | SPECIAL SCREW | - |
