Model
GE AZ35H07D2BM1
Zoneline
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
AZ35H07D2BM1Zoneline
4 diagrams94 parts
Parts Sections (4)

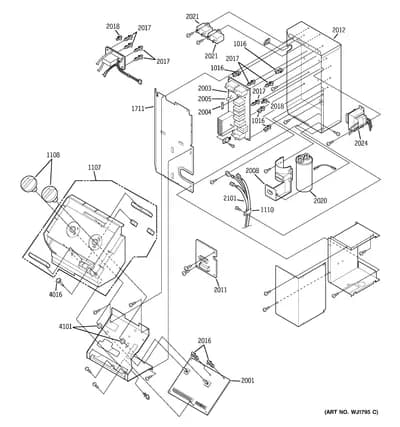

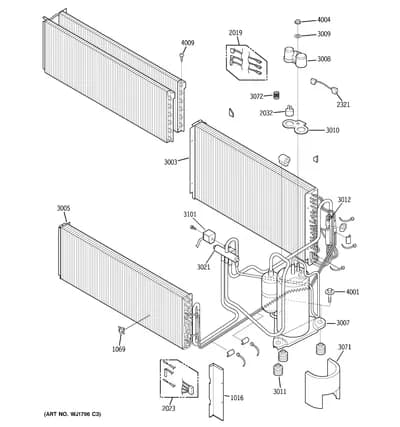

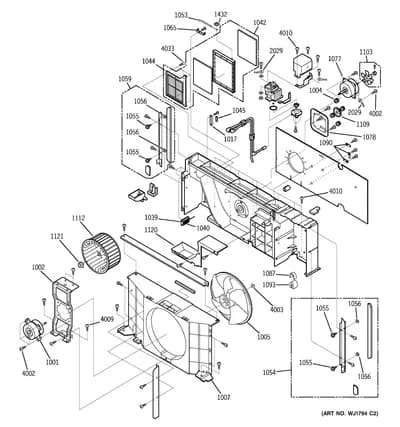

Diagram

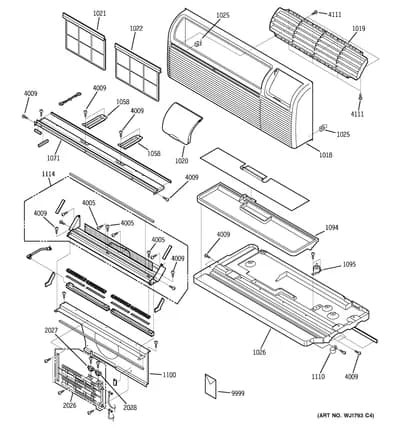

GRILLE, HEATER & BASE PARTS
Parts in GRILLE, HEATER & BASE PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1018 |  | FRONT PANEL | - |
| 1019 | | WP71X10003NLA R. LOUVER | Discontinued |
| 1020 | | WP71X10004NLA CONTROL COVER | Discontinued |
| 1021 | | WP85X10003NLA AIR FILTER L | Discontinued |
| 1022 | | WP85X10004NLA AIR FILTER R | Discontinued |
| 1025 |  | SPRING | $5.87 Parts Dr |
| 1026 | – | WJ89X10039 BASE PAN ASS'Y | - |
| 1058 | – | WP65X10001 BRACE | - |
| 1071 | – | WP79X10011 BULKHEAD COVER ASS'Y | - |
| 1094 | – | WP70X10024 DRAIN TRAY | - |
| 1095 | | WJ58X10041replaces WJ58X10017 DRAIN VALVE | - |
| 1100 | – | WP78X10003 ORIFICE | - |
| 1110 | | WIRE HOLDER | - |
| 1114 | – | WP71X10011 PLATE ASS'Y SK | - |
| 2026 | – | WP70X10026 HEATER ASS'Y | - |
| 2027 |  | PROTECTOR | $35.65 Parts Dr |
| 2028 |  | WP28X10013replaces WP28X10007 PROTECTOR | $61.56 RepairClinic |
| 4005 | | TAPPING SCREW | - |
| 4009 | | SPECIAL SCREW | - |
| 4111 | – | WJ01X10110 SPECIAL SCREW | - |
| 9999 | – | 31-60763 MINI-MANUAL | - |
| 9999 | – | 49-7415 USE & CARE MANUAL | - |
