ModelGE
AZ38H09DABM3Zoneline
4 diagrams78 parts

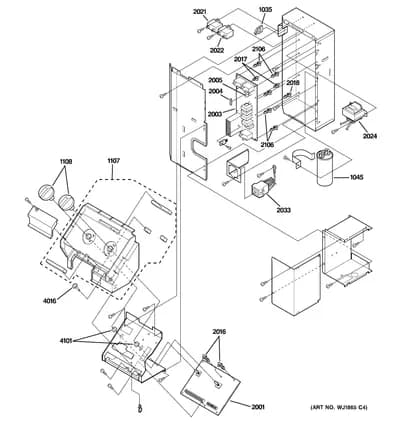

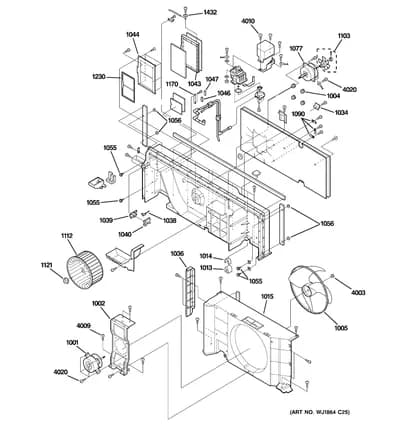

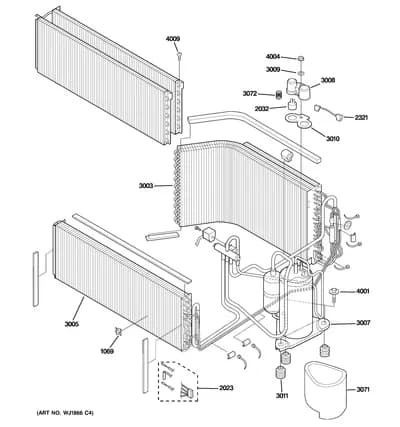

Parts Sections (4)
Diagram

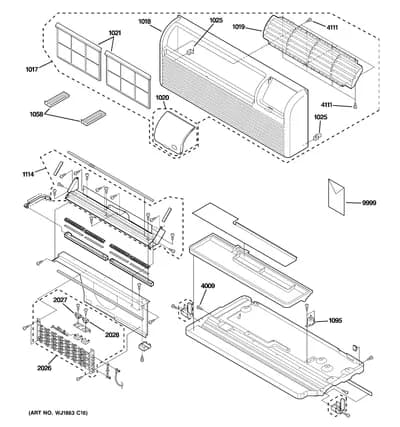

GRILLE, HEATER & BASE PAN PARTS
Parts in GRILLE, HEATER & BASE PAN PARTS
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1017 |  | FRONT PANEL ASS'Y | - |
| 1018 | | WP71X10014NLA FRONT PANEL | Discontinued |
| 1019 | | WP71X10012NLA LOUVER ASS'Y | Discontinued |
| 1020 |  | WP71X10033replaces WP71X10015 CONTROL COVER ASS'Y | $28.42 ApplianceParts Pro |
| 1021 |  | AIR FILTER | $17.11 Part Advantage |
| 1025 |  | SPRING | $5.87 Parts Dr |
| 1058 | – | WP65X10003 BRACE | - |
| 1095 | | WJ58X10041replaces WJ58X10017 DRAIN VALVE | - |
| 1114 | – | WP71X10027 PLATE ASM | - |
| 2026 |  | WP27X22080replaces WP70X10037 HEATER | $141.58 PartSelect |
| 2027 |  | PROTECTOR HEATER | $61.56 RepairClinic |
| 2028 |  | PROTECTOR HEATER | $43.64 Part Advantage |
| 4009 | | SPECIAL SCREW | - |
| 4111 | | TAP TIGHT SCREW | - |
| 9999 | – | 31-61424 MINI-MANUAL | - |
| 9999 | – | 49-7559 USE & CARE | - |
