Model
GE AZ38H12DACM1
Zoneline
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
AZ38H12DACM1Zoneline
4 diagrams82 parts
Parts Sections (4)
Diagram

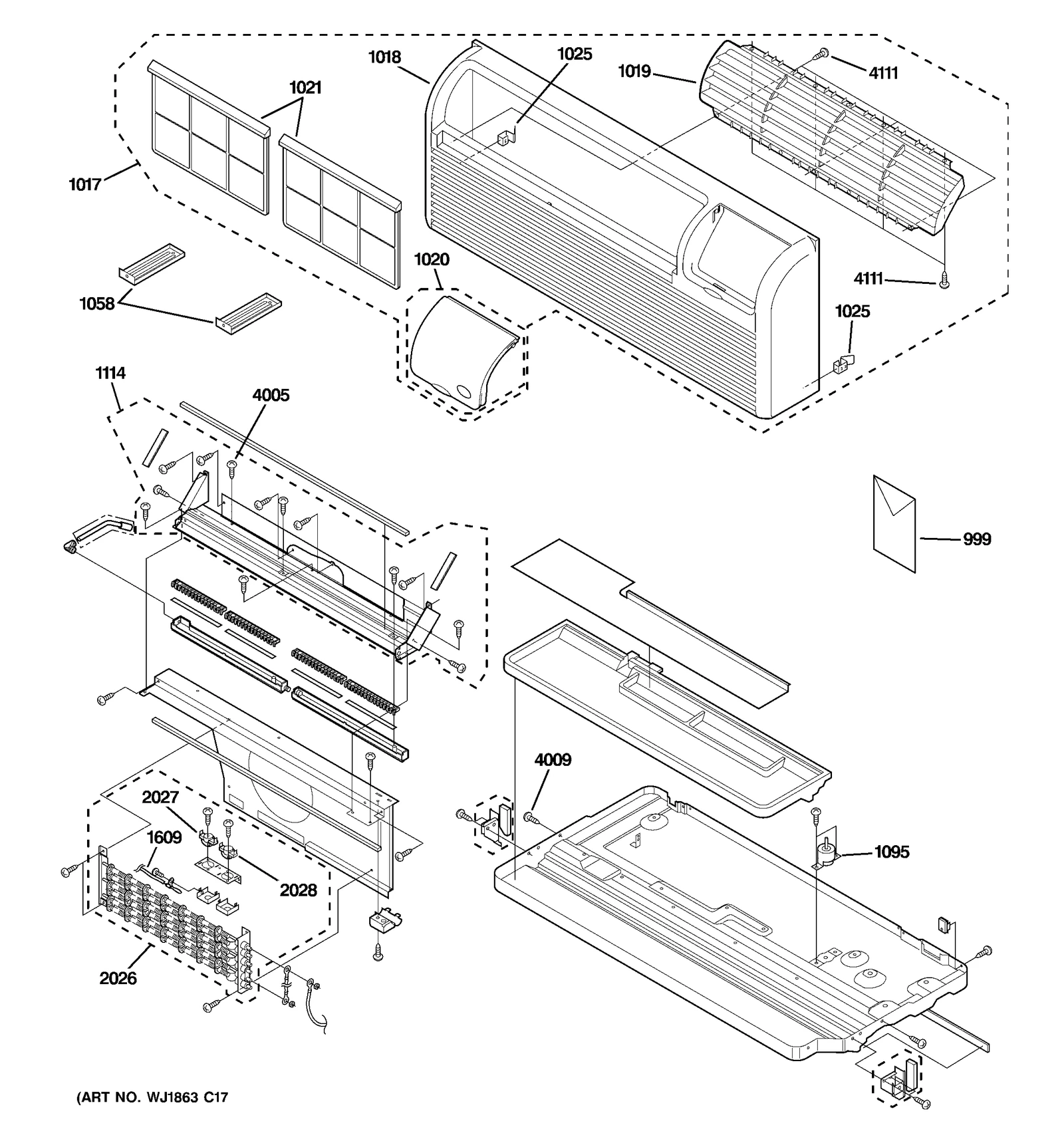

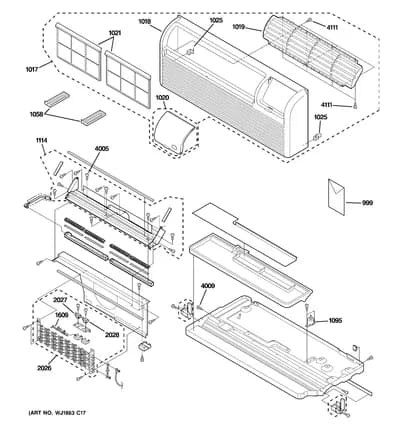

GRILLE, HEATER & BASE PAN PARTS
Parts in GRILLE, HEATER & BASE PAN PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 999 | – | 31-61100 MINI MANUAL | - |
| 999 | – | 49-7484 USE & CARE | - |
| 1017 |  | FRONT PANEL ASS'Y | - |
| 1018 | | WP71X10014NLA FRONT PANEL | Discontinued |
| 1019 | | WP71X10012NLA LOUVER ASS'Y | Discontinued |
| 1020 |  | WP71X10033replaces WP71X10015 CONTROL COVER ASS'Y | $28.42 ApplianceParts Pro |
| 1021 |  | AIR FILTER | $17.11 Part Advantage |
| 1025 |  | SPRING | $5.87 Parts Dr |
| 1058 | – | WP65X10005 BRACE | - |
| 1095 | | WJ58X10041replaces WJ58X10017 DRAIN VALVE | - |
| 1114 | – | WP71X10016 PLATE ASM SK | - |
| 1609 | – | WP27X10041 THERMISTOR | - |
| 2026 |  | WP27X22080replaces WP70X10037 HEATER | $141.58 PartSelect |
| 2027 |  | PROTECTOR HEATER | $61.56 RepairClinic |
| 2028 |  | PROTECTOR HEATER | $43.64 Part Advantage |
| 4005 | | TAPPING SCREW | - |
| 4009 | | SPECIAL SCREW | - |
| 4111 | – | WJ01X10110 SPECIAL SCREW | - |
