Model
Hotpoint CTF14ALCL
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF14ALCLRefrigerator
3 diagrams188 parts
Parts Sections (3)
Diagram
Parts List
Parts in Parts List
45 parts

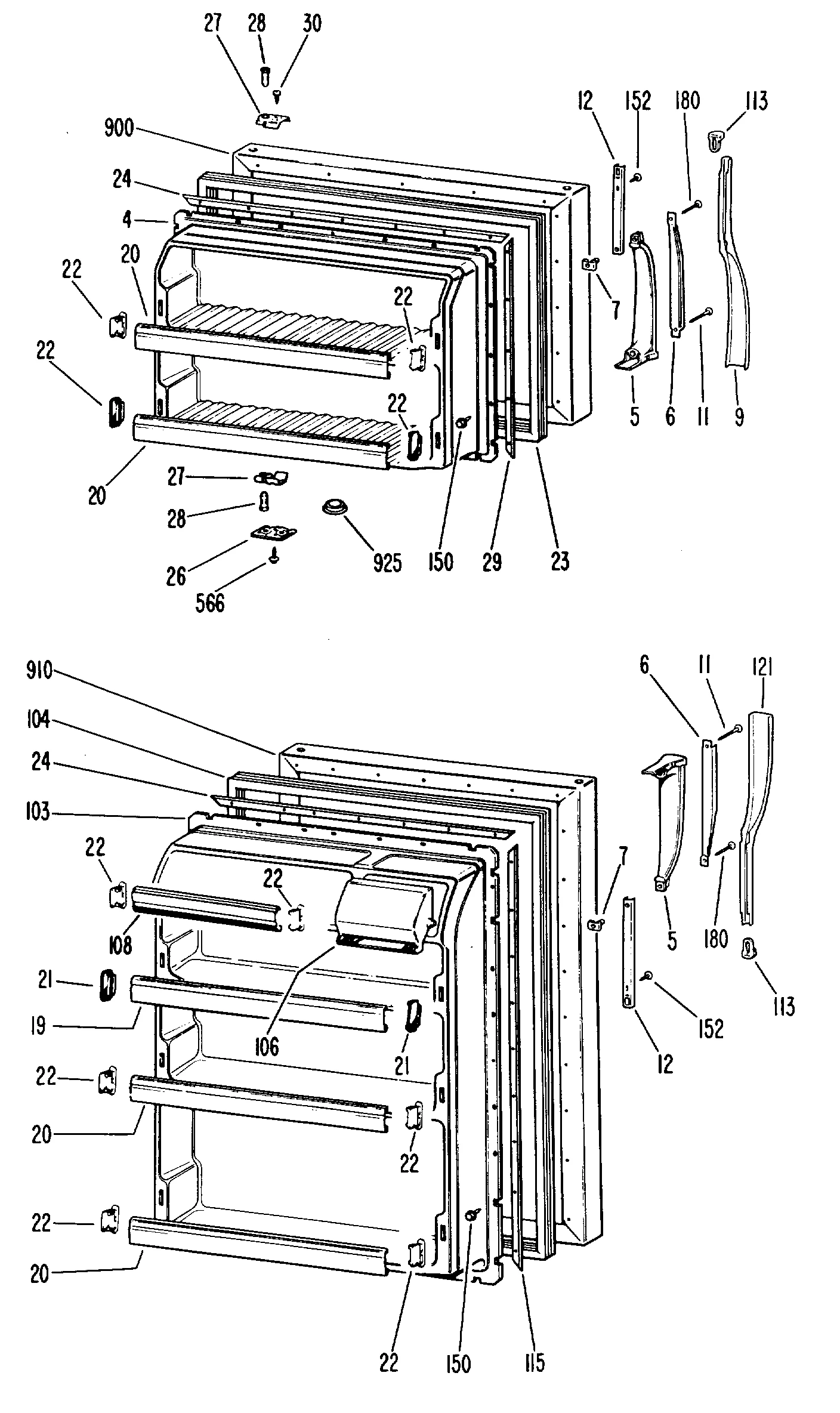

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 4 | – | WR77X0460 DOOR INNER FZ(WH) | - |
| 5 |  | WR12X0451NLA HANDLE DOOR | Discontinued |
| 6 |  | WR12X452replaces WR12X0452 STIFFENER HANDLE | - |
| 7 | – | WR01X1246 FASTENER DOOR HANDLE | - |
| 9 | – | WR12X0736 DOOR HANDLE INSERT | - |
| 11 | – | WZ04X0358 SCR 10-16AB RND 1 11/16S | - |
| 12 | | WR12X0455NLA CHANNEL HANDLE | Discontinued |
| 19 | | FRONT DOOR SHELF | - |
| 20 | | WR17X11782replaces WR71X5992 FRONT DOOR SHELF | $28.42 PartSelect |
| 21 | | WR2X4100replaces WR02X4100 CAP SHELF FRT | - |
| 22 | | CAP SHELF FRT | Discontinued |
| 23 | | WR24X0312NLA GASKET FZ O.DOOR (WH) | Discontinued |
| 24 | – | WR02X4704 RETAINER STRIP | - |
| 26 | – | WR02X7282 STOP DOOR 150 DG | - |
| 27 | – | WR02X7908 NUT CHANNEL | - |
| 28 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 29 | – | WR02X4703 RETAINER STRIP | - |
| 102 | | WR2X4990replaces WR02X4990 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 103 | | WR77X461replaces WR77X0461 DOOR INNER FF(WH) | - |
| 104 | | GASKET FF O.DOOR(WH) | Discontinued |
| 106 | – | WR22X0328 DOOR DAIRY | - |
| 108 | | WR17X11782replaces WR71X5993 FRONT DOOR SHELF | $28.42 PartSelect |
| 113 | | WR12X0320NLA CAP HANDLE | Discontinued |
| 115 | – | WR02X4705 RETAINER STRIP | - |
| 121 | – | WR12X5193 INSERT DOOR HANDLE | - |
| 150 | – | WR01X5030 SCR 6-20 B HX 5/8 S | - |
| 152 | | WZ6X99Dreplaces WZ06X0099 SCR 8-18 AB HXW 3/8 S PL | - |
| 180 | – | WZ05X0227 SCR 10-16 BAT HXW 1-1/8S | - |
| 564 | | WE2X186Dreplaces WR01X1194 SCREW | - |
| 565 | | WR1X1361replaces WR01X1361 RIVET POP | - |
| 566 | | WR01X1487NLA SCREW | Discontinued |
| 582 | | WR01X1138NLA GROMMET SCR | Discontinued |
| 679 | – | WZ06X0133 SCREW BRKT. EVAP. FAN | - |
| 750 | | WR82X177replaces WR82X0177 INSUL-1"X30 1/2"X100 FT. | - |
| 801 | – | WR62X0044 COIL-ICE | - |
| 802 | | WR1X1360replaces WR01X1360 CLIP U | - |
| 802 | – | WR57X0052 ELBOW WATER FITTING | - |
| 803 | – | WR57X0046 WASHER HOSE FITTING | - |
| 803 | – | WR57X0050 FITTING HOSE | - |
| 804 |  | WR57X57replaces WR57X0057 NUT SLEEVE 1/4 | - |
| 805 |  | WR1X5278replaces WR02X3736 STR RELIEF | $8.59 Parts Dr |
| 815 | – | WR57X0073 SCREEN & WASHER PKG. | - |
| 925 | – | WR02X7055 PLUG BUTTON(.370" DIA.) | - |
| 32767 | – | 31-5010 PM ATTENTION INSTALLER | - |
| 32767 | – | 39-6261 GUIDE OWNERS | - |
