Model
Hotpoint CTF14CKBR
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF14CKBRRefrigerator
3 diagrams170 parts
Parts Sections (3)

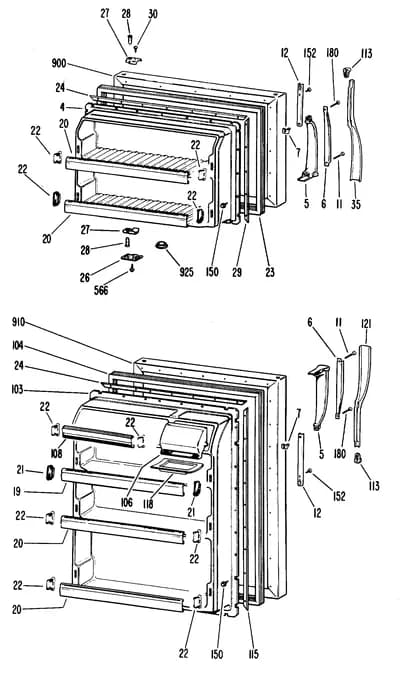

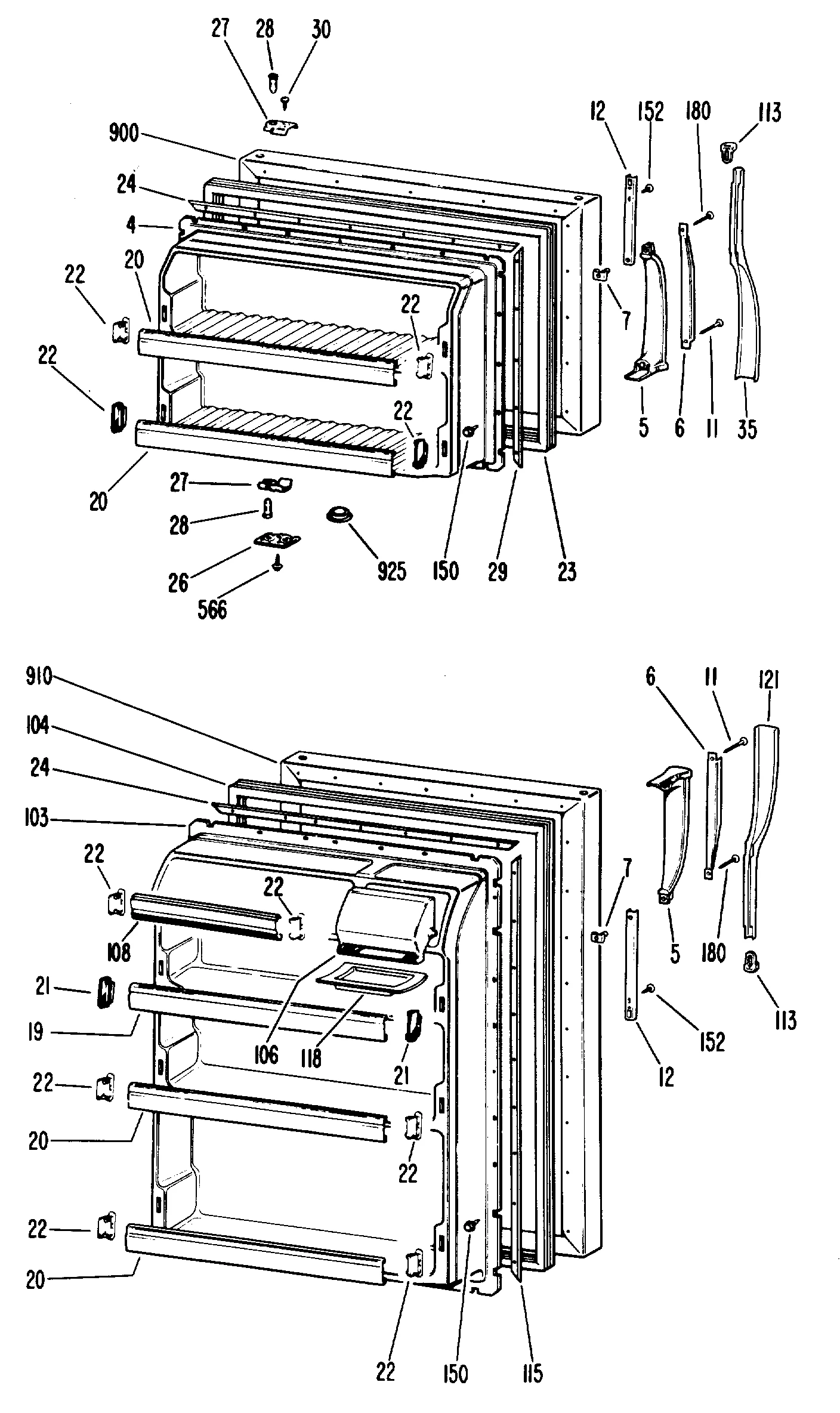

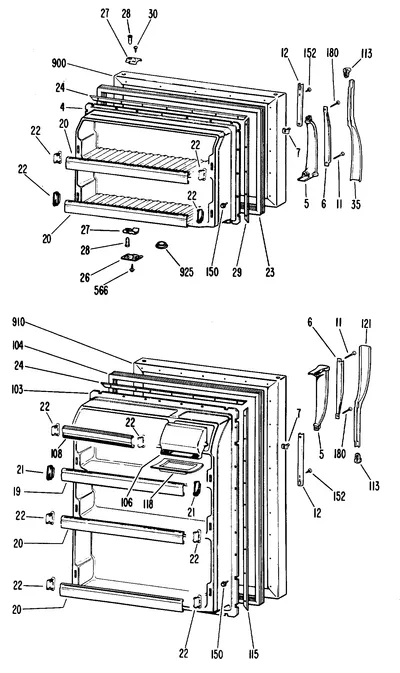

Diagram
Parts List
Parts in Parts List
45 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 4 | – | WR77X0460 DOOR INNER FZ(WH) | - |
| 5 |  | WR12X0451NLA HANDLE DOOR | Discontinued |
| 6 |  | WR12X452replaces WR12X0452 STIFFENER HANDLE | - |
| 7 | – | WR01X1246 FASTENER DOOR HANDLE | - |
| 11 | – | WZ04X0358 SCR 10-16AB RND 1 11/16S | - |
| 12 | | WR12X0455NLA CHANNEL HANDLE | Discontinued |
| 19 | | FRONT DOOR SHELF | - |
| 20 | | WR17X11782replaces WR71X5992 FRONT DOOR SHELF | $28.42 PartSelect |
| 21 | | WR2X4100replaces WR02X4100 CAP SHELF FRT | - |
| 22 | | CAP SHELF FRT | Discontinued |
| 23 | | WR24X0312NLA GASKET FZ O.DOOR (WH) | Discontinued |
| 24 | – | WR02X4704 RETAINER STRIP | - |
| 26 | – | WR02X7282 STOP DOOR 150 DG | - |
| 27 | – | WR02X7908 NUT CHANNEL | - |
| 28 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 29 | – | WR02X4703 RETAINER STRIP | - |
| 35 | – | WR12X0653 INSERT DOOR HANDLE | - |
| 102 | | WR2X4990replaces WR02X4990 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 103 | | WR77X461replaces WR77X0461 DOOR INNER FF(WH) | - |
| 104 | | GASKET FF O.DOOR(WH) | Discontinued |
| 106 | – | WR22X0328 DOOR DAIRY | - |
| 108 | | WR17X11782replaces WR71X5993 FRONT DOOR SHELF | $28.42 PartSelect |
| 113 | | WR12X0320NLA CAP HANDLE | Discontinued |
| 115 | – | WR02X4705 RETAINER STRIP | - |
| 118 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 121 | | WR12X0522NLA INSERT DOOR HANDLE(BRN) | Discontinued |
| 150 | – | WR01X5030 SCR 6-20 B HX 5/8 S | - |
| 150 | – | WR01X5030 SCR 6-20 B HX 5/8 S | - |
| 152 | | WZ6X99Dreplaces WZ06X0099 SCR 8-18 AB HXW 3/8 S PL | - |
| 180 | – | WZ05X0227 SCR 10-16 BAT HXW 1-1/8S | - |
| 230 | | WR02X7258NLA SUPPORT SHELF | Discontinued |
| 247 | – | WR02X4716 SUPPORT TWIST HOOK | - |
| 435 |  | 40A15replaces STD372402 LAMP 40W 120V | $8.96 Parts Dr |
| 564 | | WE2X186Dreplaces WR01X1194 SCREW | - |
| 565 | | WR1X1361replaces WR01X1361 RIVET POP | - |
| 566 | | WR01X1487NLA SCREW | Discontinued |
| 582 | | WR01X1138NLA GROMMET SCR | Discontinued |
| 612 | – | WR02X7137 BRACKET EVAP FAN | - |
| 688 | – | WZ04X0250 SCR 8-15 A PA 3/4 SS | - |
| 730 | – | WR84X0108 CONDENSER ASM | - |
| 740 |  | WR86X25269replaces WR86X0086 MONGRAM SERIES P/S | $45.90 Part Advantage |
| 750 | | WR82X177replaces WR82X0177 INSUL-1"X30 1/2"X100 FT. | - |
| 751 | | UNIMOUNT HIGH SIDE | - |
| 925 | – | WR02X7055 PLUG BUTTON(.370" DIA.) | - |
| 32767 | – | 31-5010 PM ATTENTION INSTALLER | - |
