Model
Hotpoint CTF14EJD
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF14EJDRefrigerator
3 diagrams206 parts
Parts Sections (3)

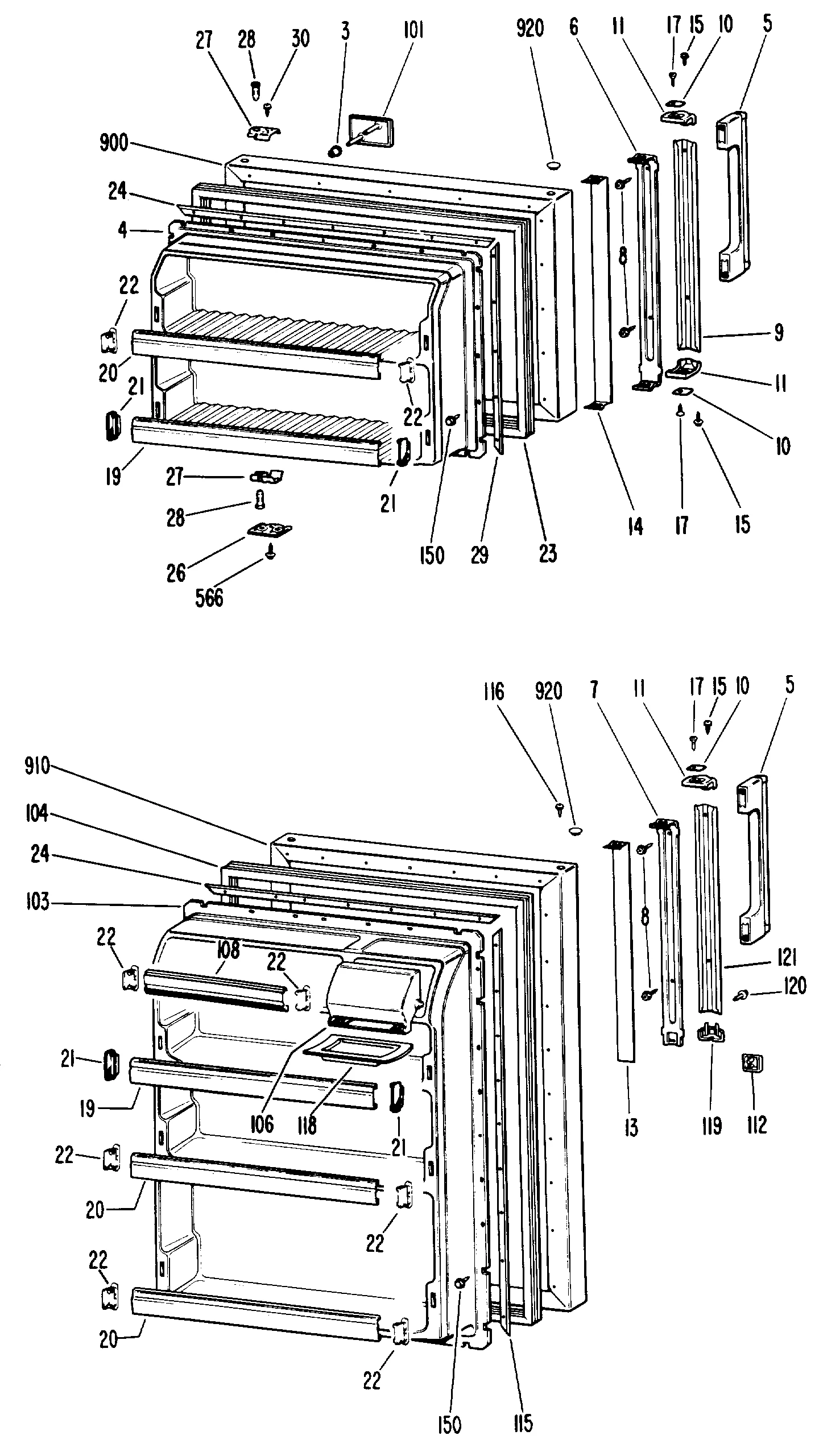

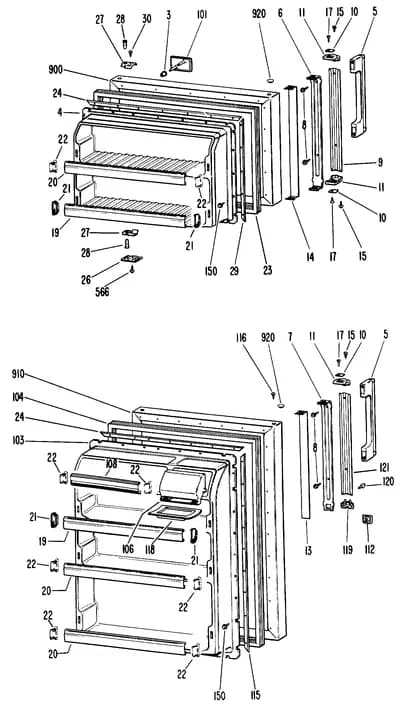

Diagram
Parts List
Parts in Parts List
57 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR77X0460 DOOR INNER FZ(WH) | - |
| 5 | – | WR12X5116 HANDLE DOOR ASM(BRN) | - |
| 6 | – | WR17X2042 STIFFENER HANDLE | - |
| 7 | – | WR01X1560 SCR 10-10 BT 30A HXW5/8S | - |
| 7 | – | WR17X6057 STIFFENER HANDLE | - |
| 9 | – | WR38X5275 TRIM DOOR | - |
| 10 | – | WR02X6289 FILLET PLUG CAP | - |
| 11 | – | WR02X6922 CAP TRIM HANDLE | - |
| 13 | – | WR02X6291 SHIM HANDLE DOOR FF | - |
| 14 | – | WR02X6287 SHIM HANDLE DOOR FRZ | - |
| 15 | | WR1X1564Dreplaces WR01X1564 SCR 4/6-20 AB FL 1/2 S | - |
| 18 | – | WR01X1569 SCR 8/10 16 AB FL 3/4 SS | - |
| 19 | | FRONT DOOR SHELF | - |
| 20 | – | WR71X5989 FRONT DOOR SHELF | - |
| 21 | | WR2X4100replaces WR02X4100 CAP SHELF FRT | - |
| 22 | | CAP SHELF FRT | Discontinued |
| 23 | | WR24X0312NLA GASKET FZ O.DOOR (WH) | Discontinued |
| 24 | – | WR02X4704 RETAINER STRIP | - |
| 26 | – | WR02X7282 STOP DOOR 150 DG | - |
| 27 | – | WR02X7281 NUT CHANNEL DOOR | - |
| 28 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 29 | – | WR02X4703 RETAINER STRIP | - |
| 30 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 101 | – | WR04X5064 NAMEPLATE ASM DOOR HPT | - |
| 103 | | WR77X461replaces WR77X0461 DOOR INNER FF(WH) | - |
| 104 | | GASKET FF O.DOOR(WH) | Discontinued |
| 106 | – | WR22X0327 DOOR DAIRY | - |
| 108 | – | WR71X5990 FRONT DOOR SHELF | - |
| 112 | | WR04X0173NLA NAMEPLATE-RSVL DR.(BRN) | Discontinued |
| 115 | – | WR02X4705 RETAINER STRIP | - |
| 116 | | WR1X1570replaces WR01X1570 SCR 4/6-20 AB PA 1/2 SS | - |
| 118 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 119 | – | WR02X6813 CAP HANDLE | - |
| 120 | – | WR01X1593 SCR 8-32 GX RND 9/16 S | - |
| 121 | – | WR38X5274 TRIM DOOR | - |
| 131 | – | WR01X1567 FASTENER NUT DOOR | - |
| 150 | – | WR01X5030 SCR 6-20 B HX 5/8 S | - |
| 150 | – | WR01X5030 SCR 6-20 B HX 5/8 S | - |
| 242 | – | WR02X7052 BUMPER-COVER | - |
| 292 | | WR01X1326NLA GROMMET SCR | Discontinued |
| 303 | – | WR02X7219 KNOB & SHAFT DAMPER | - |
| 435 |  | 40A15replaces STD372402 LAMP 40W 120V | $8.96 Parts Dr |
| 554 | – | WR01X1483 SCREW | - |
| 564 | | WE2X186Dreplaces WR01X1194 SCREW | - |
| 565 | | WR1X1361replaces WR01X1361 RIVET POP | - |
| 566 | | WR01X1487NLA SCREW | Discontinued |
| 688 | – | WZ04X0250 SCR 8-15 A PA 3/4 SS | - |
| 725 | – | WR87X0226 MACHINE HI SIDE | - |
| 740 |  | WR86X25269replaces WR86X0086 MONGRAM SERIES P/S | $45.90 Part Advantage |
| 750 | | WR82X177replaces WR82X0177 INSUL-1"X30 1/2"X100 FT. | - |
| 920 | | WR2X4930replaces WR02X4930 PLUG BUTTON THIMBLE(WH) | - |
| 921 | – | WR02X4931 PLUG BUTTON THIMBLE(HA) | - |
| 922 | – | WR02X4932 PLUG BUTTON THIMBLE(FA) | - |
| 923 | – | WR02X4933 PLUG BUTTON THIMBLE(CF) | - |
| 924 | – | WR02X4934 PLUG BUTTON THIMBLE(AD) | - |
| 32767 | – | 31-5010 PM ATTENTION INSTALLER | - |
