Model
Hotpoint CTF15AFCR
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF15AFCRRefrigerator
3 diagrams183 parts
Parts Sections (3)

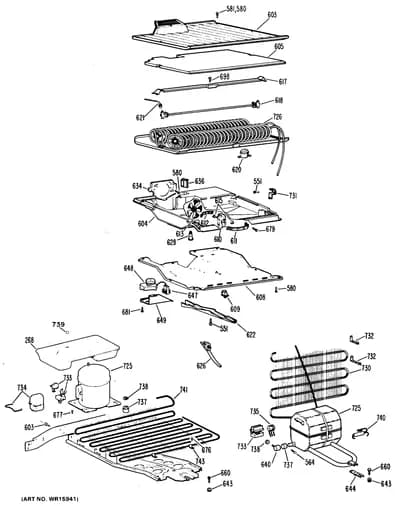

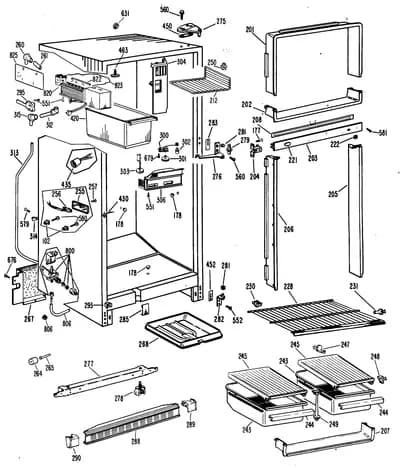

Diagram
Parts List
Parts in Parts List
50 parts

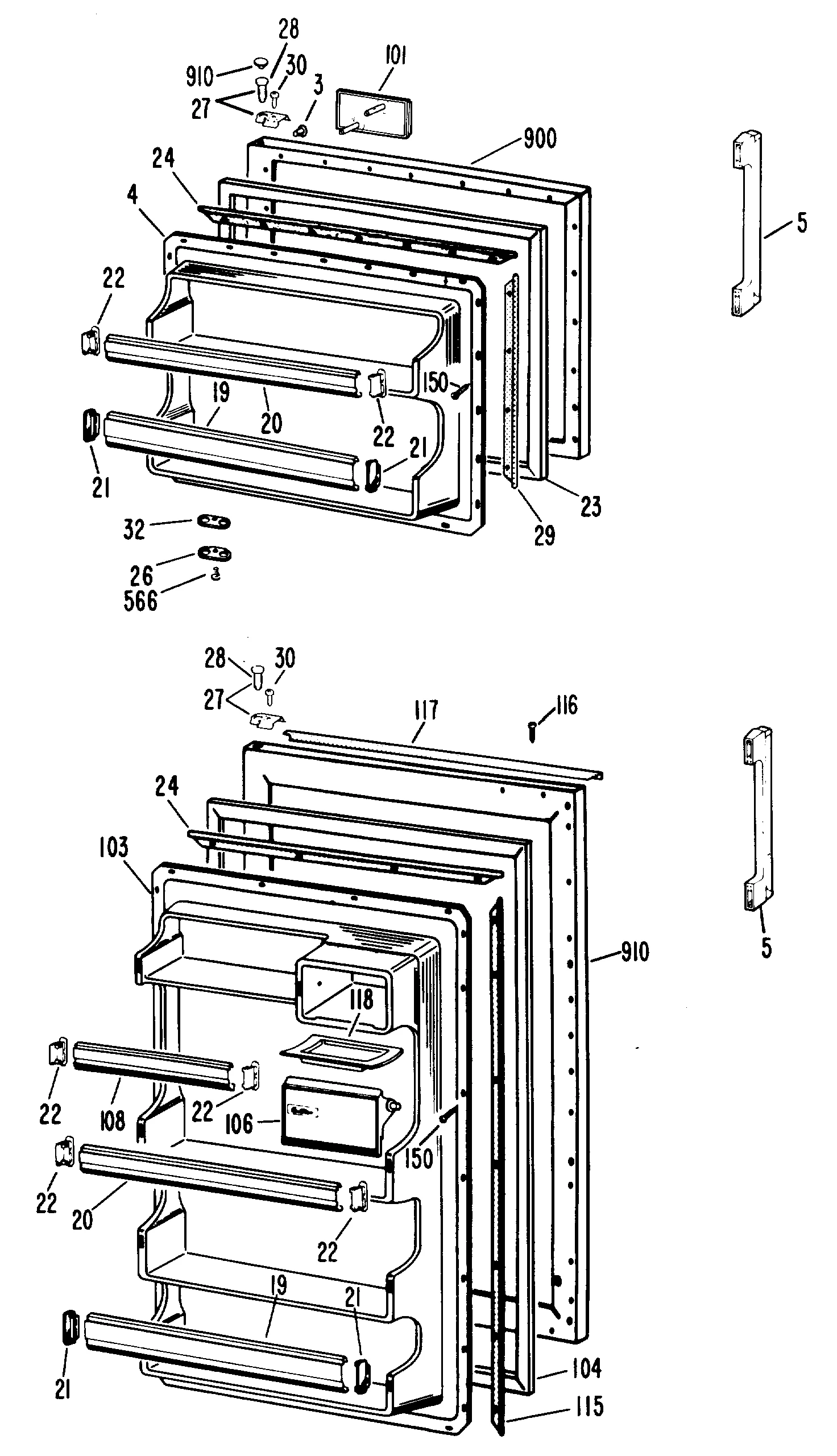

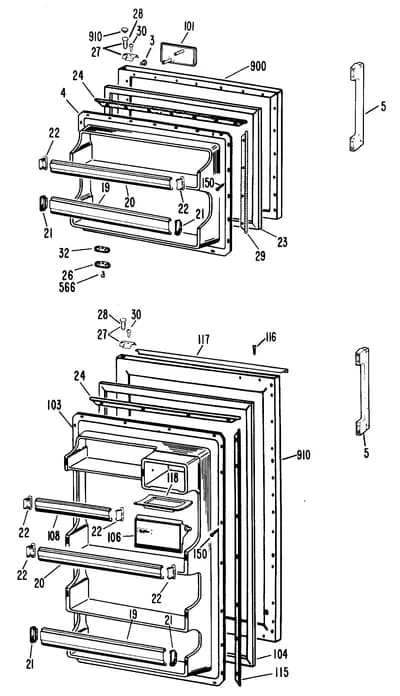

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR77X5493 DOOR INNER FZ | - |
| 5 | – | WR12X5116 HANDLE DOOR ASM(BRN) | - |
| 5 | – | WR12X5163 HANDLE DOOR ASM(BLK) | - |
| 5 | | WZ6X112Dreplaces WZ06X0112 SCREW 10-10X1 | - |
| 19 | – | WR71X5994 FRONT DOOR SHELF | - |
| 20 | | WR17X11782replaces WR71X5992 FRONT DOOR SHELF | $28.42 PartSelect |
| 21 | | WR2X4100replaces WR02X4100 CAP SHELF FRT | - |
| 22 | | CAP SHELF FRT | Discontinued |
| 23 | | WR24X0312NLA GASKET FZ O.DOOR (WH) | Discontinued |
| 24 | – | WR02X4704 RETAINER STRIP | - |
| 26 | – | WR02X7220 STOP DOOR 150 DG | - |
| 27 | | WR1X1561replaces WR02X6277 NUT CHANNEL DOOR | - |
| 28 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 29 | – | WR02X4703 RETAINER STRIP | - |
| 30 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 32 | – | WR02X6292 SHIM DOOR STOP .031 THK. | - |
| 32 | – | WR02X7071 SHIM DOOR STOP .093 THK. | - |
| 61 | – | WR01X1684 GROMMET SCR | - |
| 101 | – | WR04X5064 NAMEPLATE ASM DOOR HPT | - |
| 103 | – | WR77X5542 DOOR INNER FF | - |
| 104 | | WR24X0319NLA GASKET, FF DOOR | Discontinued |
| 106 | – | WR22X5052 DOOR DAIRY | - |
| 108 | | WR17X11782replaces WR71X5993 FRONT DOOR SHELF | $28.42 PartSelect |
| 115 | – | WR02X7102 RETAINER STRIP | - |
| 117 | – | WR38X5339 TRIM DOOR | - |
| 118 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 150 | – | WR01X5030 SCR 6-20 B HX 5/8 S | - |
| 257 | – | WZ05X0160 SCREW TIMER TO BRACKET | - |
| 270 |  | WR2X4754replaces WR01X5223 CLAMP HOSE | $6.95 ApplianceParts Pro |
| 292 | | WR01X1326NLA GROMMET SCR | Discontinued |
| 316 | – | WR02X4628 RETAINER FILL TUBE | - |
| 422 | – | WR01X1332 RIVET-PLASTIC | - |
| 565 | | WR1X1361replaces WR01X1361 RIVET POP | - |
| 566 | | WR01X1487NLA SCREW | Discontinued |
| 582 | | WR01X1138NLA GROMMET SCR | Discontinued |
| 635 | – | WR02X4717 BRACKET FAN ORIFICE | - |
| 684 |  | WB01T10047replaces WZ04X0417 SCREW | - |
| 742 | – | WR01X1691 NUT HEX | - |
| 750 | | WR82X177replaces WR82X0177 INSUL-1"X30 1/2"X100 FT. | - |
| 900 | – | WR78X7331 FRZ O.DOOR-RH CAB(WH) | - |
| 904 | – | WR78X7333 FRZ O.DOOR-RH CAB(AD) | - |
| 905 | – | WR78X7563 FRZ O.DOOR-RH CAB(DS) | - |
| 906 | – | WR78X7564 FRZ O.DOOR-RH CAB(SL) | - |
| 910 | – | WR78X6885 FF O.DOOR-RH CAB(WH) | - |
| 914 | – | WR78X6887 FF O.DOOR-RH CAB(AD) | - |
| 915 | – | WR78X7567 FF O.DOOR-RH CAB(DS) | - |
| 916 | – | WR78X7568 FF O.DOOR-RH CAB(SL) | - |
| 9999 | – | 31-5001 PM ATTENTION INSTALLER | - |
| 9999 | – | 39-6209 PM GUIDE OWNERS | - |
