Model
Hotpoint CTF15GBB
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF15GBBRefrigerator
3 diagrams229 parts
Parts Sections (3)

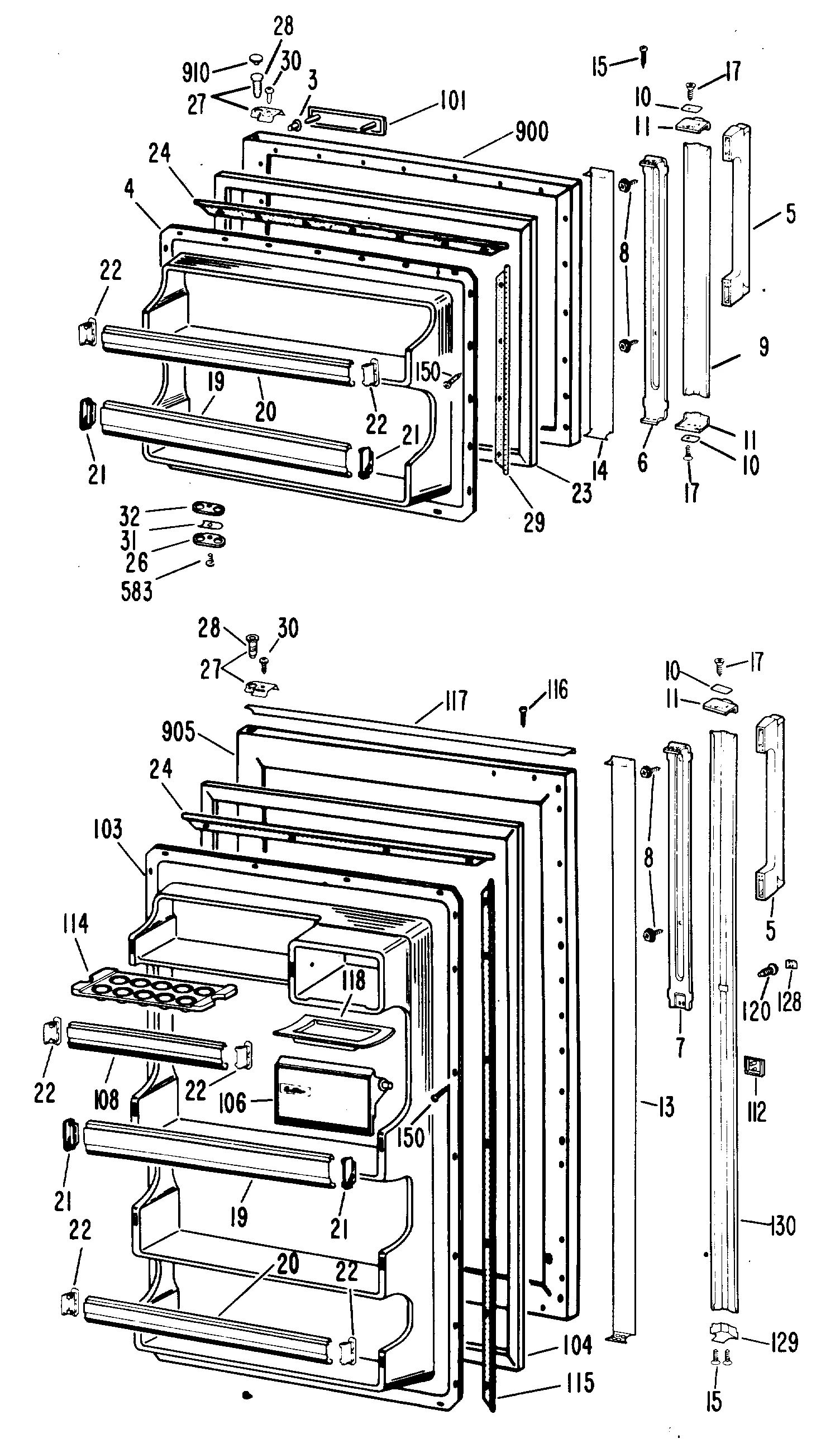

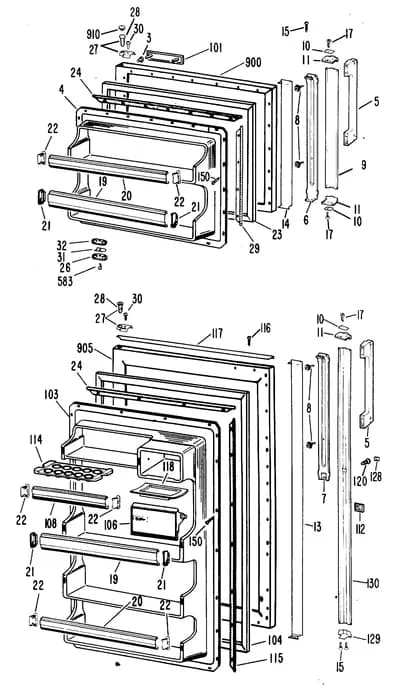

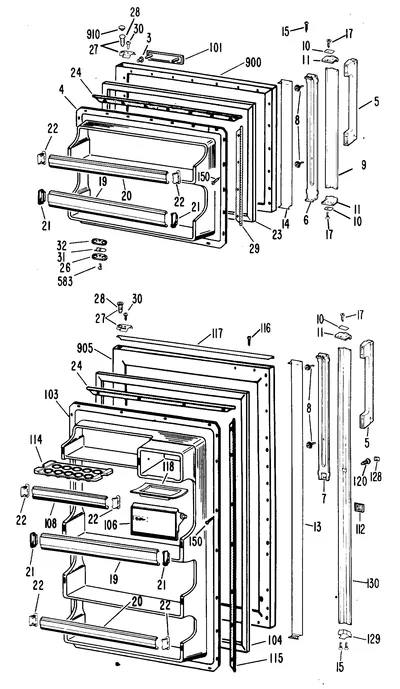

Diagram
Parts List
Parts in Parts List
82 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR77X5493 DOOR INNER FZ | - |
| 5 | – | WR12X5116 HANDLE DOOR ASM(BRN) | - |
| 6 | – | WR17X5847 STIFFENER HANDLE | - |
| 7 | – | WR17X5846 STIFFENER HANDLE | - |
| 8 | – | WR01X1560 SCR 10-10 BT 30A HXW5/8S | - |
| 9 | – | WR38X5275 TRIM DOOR | - |
| 10 | – | WR02X6289 FILLET PLUG CAP | - |
| 11 | – | WR02X6288 CAP TRIM HANDLE | - |
| 13 | – | WR02X6291 SHIM HANDLE DOOR FF | - |
| 14 | – | WR02X6287 SHIM HANDLE DOOR FRZ | - |
| 15 | | WR1X1564Dreplaces WR01X1564 SCR 4/6-20 AB FL 1/2 S | - |
| 17 | – | WR01X1569 SCR 8/10 16 AB FL 3/4 SS | - |
| 19 | – | WR17X5939 FRONT DOOR SHELF | - |
| 20 | – | WR17X5938 FRONT DOOR SHELF | - |
| 21 | | WR2X4100replaces WR02X4100 CAP SHELF FRT | - |
| 22 | | CAP SHELF FRT | Discontinued |
| 23 | | WR24X0312NLA GASKET FZ O.DOOR (WH) | Discontinued |
| 24 | – | WR02X4704 RETAINER STRIP | - |
| 26 | – | WR02X6279 STOP DOOR | - |
| 27 | | WR1X1561replaces WR02X6277 NUT CHANNEL DOOR | - |
| 28 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 29 | – | WR02X4703 RETAINER STRIP | - |
| 30 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 31 | – | WR02X4501 SHIM DOOR STOP | - |
| 32 | – | WR02X6292 SHIM DOOR STOP .031 THK. | - |
| 32 | – | WR02X7071 SHIM DOOR STOP .093 THK. | - |
| 101 | – | WR04X5053 NAMEPLATE ASM | - |
| 103 | – | WR77X5542 DOOR INNER FF | - |
| 104 | | WR24X0319NLA GASKET, FF DOOR | Discontinued |
| 106 | – | WR22X5053 DOOR DAIRY | - |
| 108 | – | WR17X5941 FRONT DOOR SHELF | - |
| 112 | | WR04X5058NLA NAMEPLATE DOOR ASM | Discontinued |
| 114 | – | WR02X6155 RACK EGG | - |
| 115 | – | WR02X7102 RETAINER STRIP | - |
| 116 | | WR1X1570replaces WR01X1570 SCR 4/6-20 AB PA 1/2 SS | - |
| 117 | – | WR38X5350 TRIM DOOR | - |
| 118 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 120 | – | WR01X1593 SCR 8-32 GX RND 9/16 S | - |
| 128 | – | WR02X6294 PLUG BUTTON TRIM(BRN) | - |
| 129 | – | WR02X6296 CAP TRIM H P | - |
| 130 | – | WR38X5349 TRIM DOOR | - |
| 150 | – | WR01X5030 SCR 6-20 B HX 5/8 S | - |
| 177 |  | WZ4X338Dreplaces WR01X5034 SCREW 8-18 A HX 1/2 S | - |
| 231 | | WR02X3440NLA CLIP SHELF TRIM | Discontinued |
| 257 | – | WZ05X0160 SCREW TIMER TO BRACKET | - |
| 270 | – | WR02X3248 PLUG BUTTON 1/4" HOLE | - |
| 307 | – | WR02X4775 LABEL COLD ZONE | - |
| 316 | – | WR02X4628 RETAINER FILL TUBE | - |
| 422 | – | WR01X1332 RIVET-PLASTIC | - |
| 453 | – | WR02X4400 NUT STRIP | - |
| 565 | | WR1X1361replaces WR01X1361 RIVET POP | - |
| 583 | | WZ05X0200NLA SCR 10-16 BAT HXW 1/2 S | Discontinued |
| 621 | – | WR02X4495 CONNECTOR W/LEAD | - |
| 635 | – | WR02X4717 BRACKET FAN ORIFICE | - |
| 677 | – | WR01X1467 SCR 10-32 G HX 3/8 S | - |
| 688 | – | WZ04X0250 SCR 8-15 A PA 3/4 SS | - |
| 734 | – | WR02X3583 CLIP RELAY COVER | - |
| 734 | – | WR02X3867 COVER RELAY | - |
| 750 | | WR82X177replaces WR82X0177 INSUL-1"X30 1/2"X100 FT. | - |
| 900 | – | WR78X7068 FRZ.O.D.(SEE REF. 900) | - |
| 901 | – | WR78X4963 FZ O.D.PNL-RH/LH CAB(HA) | - |
| 902 | – | WR78X4964 FZ O.D.PNL-RH/LH CAB(FA) | - |
| 903 | – | WR78X4965 FZ O.D.PNL-RH/LH CAB(CF) | - |
| 904 | – | WR78X4966 FZ O.D.PNL-RH/LH CAB(AD) | - |
| 905 | – | WR78X7138 FF O.DOOR-RH/LH CAB(WH) | - |
| 906 | – | WR78X7139 FF O.DOOR-RH/LH CAB(HA) | - |
| 907 | – | WR78X7140 FF O.DOOR-RH/LH CAB(FA) | - |
| 908 | – | WR78X7141 FF O.DOOR-RH/LH CAB(CF) | - |
| 909 | – | WR78X7142 FF O.DOOR-RH/LH CAB(AD) | - |
| 910 | | WR2X4930replaces WR02X4930 PLUG BUTTON THIMBLE(WH) | - |
| 911 | – | WR02X4931 PLUG BUTTON THIMBLE(HA) | - |
| 912 | – | WR02X4932 PLUG BUTTON THIMBLE(FA) | - |
| 913 | – | WR02X4933 PLUG BUTTON THIMBLE(CF) | - |
| 914 | – | WR02X4934 PLUG BUTTON THIMBLE(AD) | - |
| 921 | – | WR38X0888 COVER TOP HINGE HOLE(HA) | - |
| 922 | – | WR38X0889 COVER TOP HINGE HOLE(FA) | - |
| 923 | – | WR38X0890 COVER TOP HINGE HOLE(CF) | - |
| 924 | – | WR38X0891 COVER TOP HINGE HOLE(AD) | - |
| 926 | – | WR38X0893 COVER CTR HINGE HOLE(HA) | - |
| 927 | – | WR38X0894 COVER CTR HINGE HOLE(FA) | - |
| 928 | – | WR38X0895 COVER CTR HINGE HOLE(CF) | - |
