Model
Hotpoint CTF16CAD
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF16CADRefrigerator
3 diagrams224 parts
Parts Sections (3)

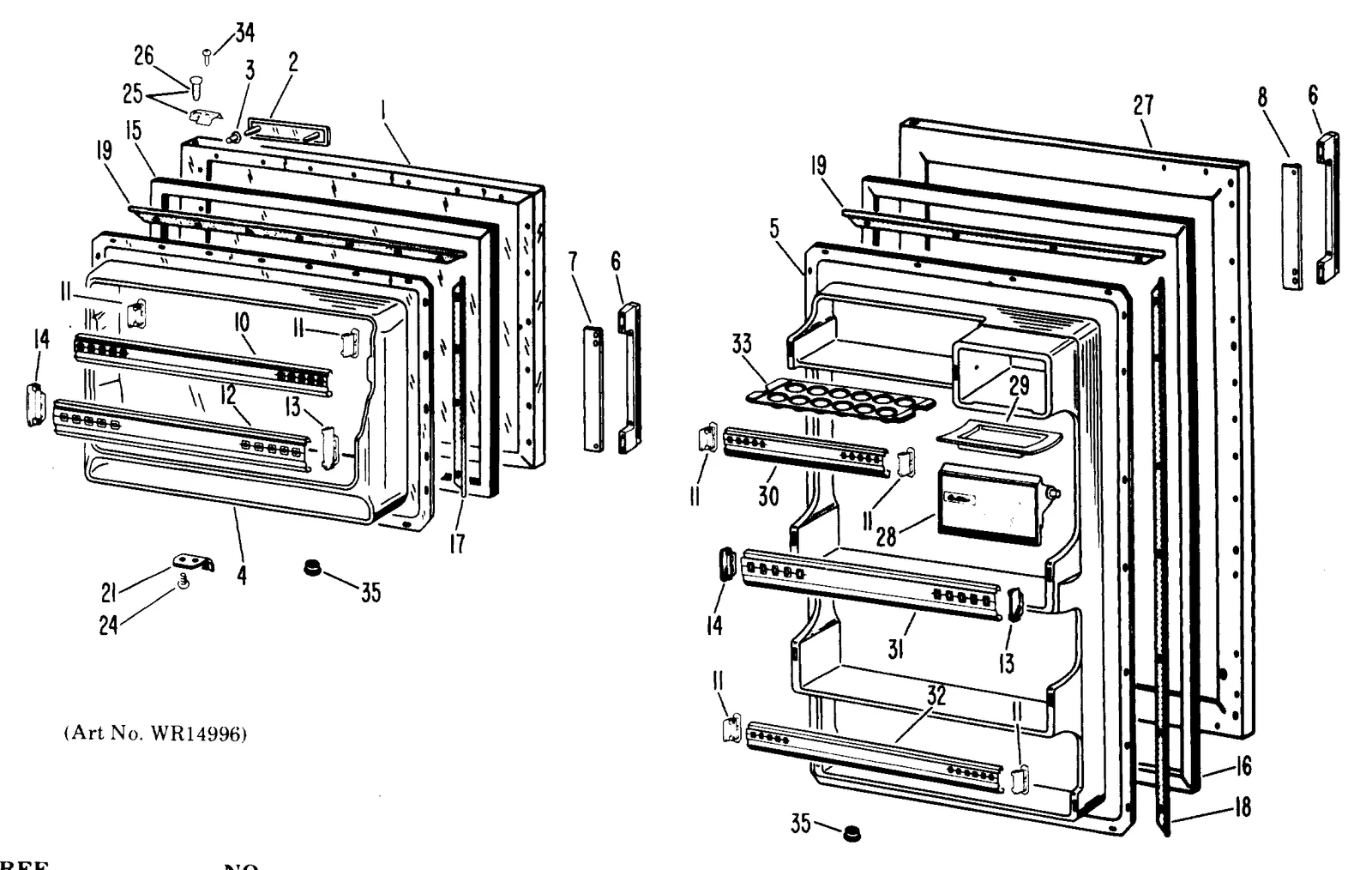

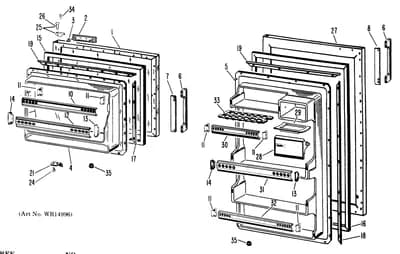

Diagram
Parts List
Parts in Parts List
62 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WR78X6736 FRZ. O.D. PANEL-RH CAB. | - |
| 1 | – | WR78X6737 TOP O.D. PANEL RH CAB. ( | - |
| 1 | – | WR78X6738 FRZ. O.D. PANEL-RH CAB. | - |
| 1 | – | WR78X6740 FRZ. O.D. PANEL-LH CAB. | - |
| 1 | – | WR78X6741 TOP O.D. PANEL LH CAB. ( | - |
| 1 | – | WR78X6742 FRZ. O.D. PANEL-LH CAB. | - |
| 1 | – | WR78X6788 FRZ. O.D. PANEL-RH CAB. | - |
| 1 | – | WR78X6789 FRZ. O.D. PANEL LH CAB. | - |
| 2 | – | WR04X5053 NAMEPLATE ASM | - |
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR77X0221 I.D. PANEL | - |
| 5 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 5 | – | WR77X5456 I.D. PANEL - FF | - |
| 6 | – | WR12X5116 HANDLE DOOR ASM(BRN) | - |
| 6 | | WZ6X112Dreplaces WZ06X0112 SCREW 10-10X1 | - |
| 7 | – | WR02X6141 TAPE FOAM | - |
| 7 | – | WR03X5091 TRIM-RH FZ-LH FF DOOR | - |
| 7 | – | WR03X5103 CAP TRIM-RH FZ-LH FF DR | - |
| 7 | – | WR03X5104 CAP TRIM-LH FZ-RH FF DR | - |
| 7 | – | WR03X5105 CAP TRIM DR | - |
| 7 | – | WR03X5106 CAP TRIM DR | - |
| 8 | – | WR02X6141 TAPE FOAM | - |
| 8 | – | WR03X5091 TRIM-RH FZ-LH FF DOOR | - |
| 8 | – | WR03X5092 TRIM-LH FZ-RH FF DOOR | - |
| 8 | – | WR03X5103 CAP TRIM-RH FZ-LH FF DR | - |
| 8 | – | WR03X5104 CAP TRIM-LH FZ-RH FF DR | - |
| 8 | – | WR03X5105 CAP TRIM DR | - |
| 8 | – | WR03X5106 CAP TRIM DR | - |
| 10 | – | WR71X1187 SHELF FRONT - TOP | - |
| 11 | | CAP SHELF FRT | Discontinued |
| 12 | – | WR71X1216 FRONT DOOR SHELF | - |
| 13 | – | WR02X5800 END CAP-R. SIDE | - |
| 14 | | WR2X5801replaces WR02X5801 END CAP-L. SIDE | - |
| 15 | – | WR24X0298 GASKET, FRZ DOOR | - |
| 16 | – | WR24X0271 GASKET, FF DOOR | - |
| 17 | – | WR02X4949 RETAINER SIDES FRZ. | - |
| 18 | – | WR17X1220 RETAINER STRIP | - |
| 19 | – | WR17X0857 RETAINER TOP BTM | - |
| 21 | – | WR02X4920 STOP DOOR | - |
| 24 | | WZ4X261Dreplaces WZ04X0261 SCR 10-16 B PA 1/2 SS | - |
| 25 | | WR1X1561replaces WR01X1561 NUT CHANNEL DOOR | - |
| 25 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 26 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 27 | – | WR78X6744 FF O.D. PANEL RH CAB. (H | - |
| 27 | – | WR78X6745 O.D. PANEL FF RH CAB. (F | - |
| 27 | – | WR78X6746 FF O.D. PANEL RH CAB. (A | - |
| 27 | – | WR78X6748 FF O.D. PANEL LH CAB. (H | - |
| 27 | – | WR78X6749 O.D. PANEL FF LH CAB. (F | - |
| 27 | – | WR78X6750 FF O.D. PANEL LH CAB. (A | - |
| 27 | – | WR78X6790 FF O.DOOR-RH CAB(WH) | - |
| 27 | – | WR78X6791 FF O.DOOR-LH CAB(WH) | - |
| 28 | – | WR17X5811 BUTTER DOOR | - |
| 29 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 30 | – | WR71X5837 SHELF FRONT (TOP) | - |
| 31 | – | WR71X5838 SHELF FRONT (MIDDLE TWO) | - |
| 32 | – | WR71X5839 SHELF FRONT (BTM.) | - |
| 33 | | WR32X1575replaces WR02X6124 EGG RACK | - |
| 34 | | WR1X1570replaces WR01X1570 SCR 4/6-20 AB PA 1/2 SS | - |
| 35 | – | WR02X7055 PLUG BUTTON(.370" DIA.) | - |
| 35 | – | WR02X7056 PLUG BUTTON(HA) | - |
| 35 | – | WR02X7057 PLUG BUTTON(FA) | - |
| 35 | – | WR02X7059 PLUG BUTTON(AD) | - |
