Model
Hotpoint CTF16CGRL
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF16CGRLRefrigerator
3 diagrams179 parts
Parts Sections (3)

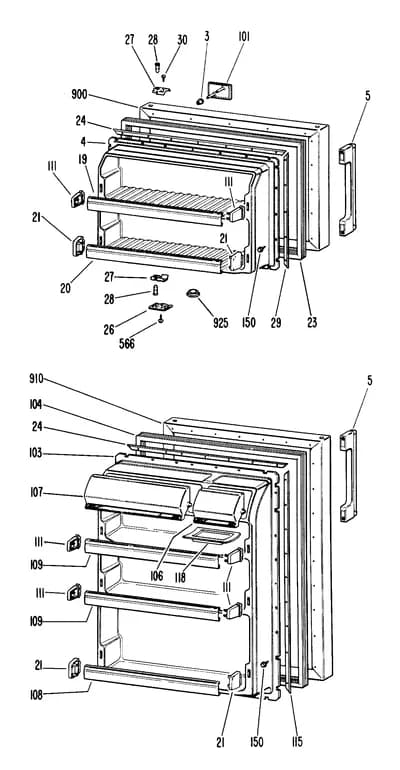

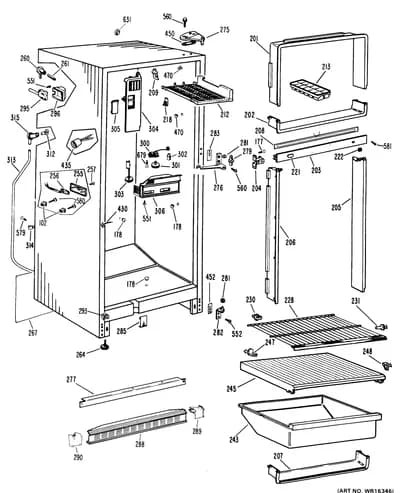

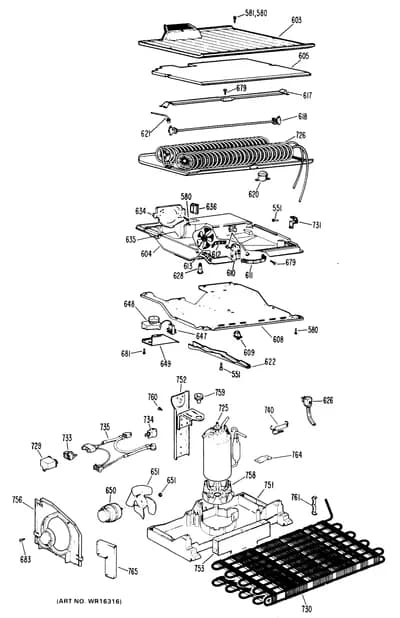

Diagram
Parts List
Parts in Parts List
104 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 102 |  | WR2X4990replaces WR02X4990 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 177 |  | WZ4X338Dreplaces WR01X5034 SCREW 8-18 A HX 1/2 S | - |
| 178 | | WR02X6058NLA PLUG BUTTON(.562"DIA.) | Discontinued |
| 201 | – | WR40X1545 BREAKER FRAME U | - |
| 202 | – | WR02X4775 LABEL COLD ZONE | - |
| 202 | – | WR40X1546 BREAKER STRIP BTM FZ | - |
| 203 | – | WR17X1627 MULLION-O.CASE | - |
| 204 | – | WR02X4706 CLIP BREAKER | - |
| 204 | – | WR02X4709 BRACKET MULLION | - |
| 204 | – | WR14X0333 FOAM STRIP-MULLION | - |
| 205 | – | WR40X1585 BREAKER STRIP-R.SIDE | - |
| 206 | – | WR40X1584 BREAKER STRIP-L.SIDE | - |
| 207 | – | WR02X4707 CLIP BREAKER | - |
| 207 | – | WR40X1549 BREAKER STRIP BTM | - |
| 208 | – | WR51X0306 HEATER MULLION | - |
| 209 | – | WR02X7067 SUPPORT TWIST | - |
| 212 | – | WR17X5957 SHELF ICE TRAY | - |
| 213 |  | WR30X311replaces WR30X5101 TRAY ICE | $5.09 Part Advantage |
| 216 | – | WR01X1332 RIVET-PLASTIC | - |
| 218 | – | WR02X4549 SUPPORT TWIST | - |
| 221 | – | WR02X4922 PLUG BUTTON MULLION | - |
| 222 | – | WR13X0357 GROMMET DOOR STOP | - |
| 228 | – | WR71X5883 SHELF STATIONARY | - |
| 230 | | WR02X7258NLA SUPPORT SHELF | Discontinued |
| 231 | | WR2X3158replaces WR02X3158 SUPPORT SHELF | - |
| 243 | | PAN | - |
| 245 | | COVER VEG PAN | Discontinued |
| 247 | – | WR02X4716 SUPPORT TWIST HOOK | - |
| 248 | | WR2X6817replaces WR02X6817 SUPPORT TWIST | - |
| 255 | – | WR03X0399 BEZEL ENERGY SAVER | - |
| 256 | – | WR02X4677 COVER WIRING | - |
| 256 | – | WR23X0179 HARNESS PWR SVR | - |
| 257 | – | WZ05X0160 SCREW TIMER TO BRACKET | - |
| 260 | – | WR02X6161 GROMMET WATER FILL | - |
| 261 | | TUBE WATER FILL | Discontinued |
| 264 | | WR2X5676replaces WR02X5676 GLIDER ADJ.-5/16-18 THD. | - |
| 275 | – | WR13X5132 HINGE TOP & PIN ASM | - |
| 276 | – | WR13X0564 HINGE CENTER | - |
| 277 | – | WR63X0084 RAIL MACH MTG FRT | - |
| 279 | – | WR02X7063 HINGE PIN | - |
| 282 | | WR13X519replaces WR13X0519 HINGE BTM & PIN ASM | - |
| 285 | – | WR02X4720 COVER TUBE SEAL ASM | - |
| 288 | – | WR79X5147 GRILLE O. CASE | - |
| 289 | – | WR02X6810 END CAP-GRILLE-R.SIDE | - |
| 290 | – | WR02X6811 END CAP-GRILLE-L.SIDE | - |
| 292 | | WR01X1326NLA GROMMET SCR | Discontinued |
| 293 | – | WR02X7080 CLIP-0. CASE-END CAP | - |
| 295 | – | WR23X0162 RECEPTACLE ICEMAKER | - |
| 296 | – | WR02X4512 COVER IM RECEPTACLE | - |
| 300 | | CONTROL, TEMPERATURE | Discontinued |
| 301 | – | WR02X4509 SLEEVE VINYL | - |
| 301 | – | WR02X7218 KNOB TEMP CONT | - |
| 302 | – | WR02X3613 POST CONTROL BULB | - |
| 303 | – | WR02X7219 KNOB & SHAFT DAMPER | - |
| 304 | | DUCT AIR FZ VERT | - |
| 305 | – | WR02X4708 INSERT AIR DUCT | - |
| 306 | | HOUSING CONT | - |
| 312 | – | WR02X6327 SPOUT DRAIN | - |
| 313 | – | WR17X6202 TUBE DRAIN | - |
| 314 | – | WR02X4516 CLAMP TUBE | - |
| 315 | – | WR02X4626 GROMMET DRAIN | - |
| 430 | – | WR51X0305 HEATER O.CASE | - |
| 435 |  | 40A15replaces STD372402 LAMP 40W 120V | $8.96 Parts Dr |
| 435 | – | WR02X4049 SOCKET LAMP | - |
| 450 | | WR2X4194replaces WR02X4194 SHIM HINGE TOP | - |
| 452 | – | WR02X7190 NUTSTRIP-BTM. HINGE | - |
| 470 |  | WR2X3139replaces WR02X3139 PLUG BUTTON | - |
| 551 | | WZ04X0244NLA SCREW-FRONT | Discontinued |
| 552 | | WR01X1587NLA SCREW | Discontinued |
| 560 | | WR01X1249NLA SCREW | Discontinued |
| 564 | | WE2X186Dreplaces WR01X1194 SCREW | - |
| 565 | | WR1X1361replaces WR01X1361 RIVET POP | - |
| 579 | – | WR01X5427 SCR 8-18 B HXW 1/2 S | - |
| 580 | – | WR01X1557 SCR 8-32 F HXW 5/8 SNSSP | - |
| 581 | – | WZ06X0075 SCR 8-18 BAT TR 3/4SSPLW | - |
| 582 | | WR01X1138NLA GROMMET SCR | Discontinued |
| 631 | | WR02X4829NLA SEAL PLUG(1.79 HEX HOLE) | Discontinued |
| 648 |  | WR9X502replaces WR09X0414 DEFROST CONTROL | $63.48 Part Advantage |
| 651 | | WR1X1715replaces WR01X1715 NUT | - |
| 676 |  | WD2X5166replaces WZ04X0263 SCR 10-16 AB HXW 1/2 | $9.92 Parts Dr |
| 677 | – | WR01X1467 SCR 10-32 G HX 3/8 S | - |
| 679 | – | WZ04X0287 SCR 8-18 AB HX 3/8 S | - |
| 679 | – | WZ06X0133 SCREW BRKT. EVAP. FAN | - |
| 684 |  | WB01T10047replaces WZ04X0417 SCREW | - |
| 688 | – | WZ04X0250 SCR 8-15 A PA 3/4 SS | - |
| 725 | – | WR87X0226 MACHINE HI SIDE | - |
| 733 | – | WR07X0187 RELAY | - |
| 740 |  | WR86X25269replaces WR86X0086 MONGRAM SERIES P/S | $45.90 Part Advantage |
| 750 | | WR82X177replaces WR82X0177 INSUL-1"X30 1/2"X100 FT. | - |
| 761 | – | WR02X7538 CLIP COND | - |
| 930 | – | WR38X1078 COVER T0P HINGE HOLE(WH) | - |
| 930 | – | WR38X1079 COVER T0P HINGE HOLE(AD) | - |
| 930 | – | WR38X1080 COVER T0P HINGE HOLE(HA) | - |
| 931 | – | WR38X1105 COVER HGE HOLE(WH) | - |
| 931 | – | WR38X1106 COVER HGE HOLE(AD) | - |
| 931 | – | WR38X1107 COVER HGE HOLE(HA) | - |
| 32767 | – | 31-5010 PM ATTENTION INSTALLER | - |
| 32767 | – | 39-6238 OWNERS GUIDE | - |
| 32767 | – | WR01X1254 RIVET SEMI TUBULAR | - |
| 32767 | – | WR02X3856 SHIM CENTER HINGE | - |
| 32767 | – | WR02X4198 NUTSTRIP TOP HINGE | - |
| 32767 | | WR1X1361replaces WR02X4222 RIVET POP | - |
| 32767 | | WR2X9443replaces WR02X4497 SHIM HINGE | $16.13 RepairClinic |
| 32767 |  | WR2X4686Dreplaces WR02X4686 CONNECTOR ELECT | - |
