Model
Hotpoint CTF16GGB
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF16GGBRefrigerator
3 diagrams239 parts
Parts Sections (3)

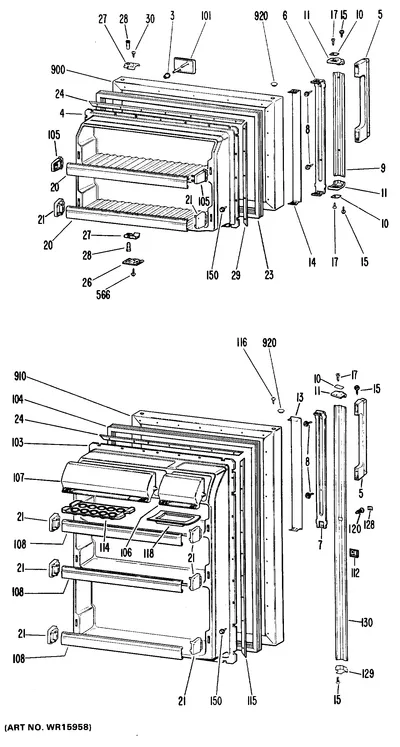

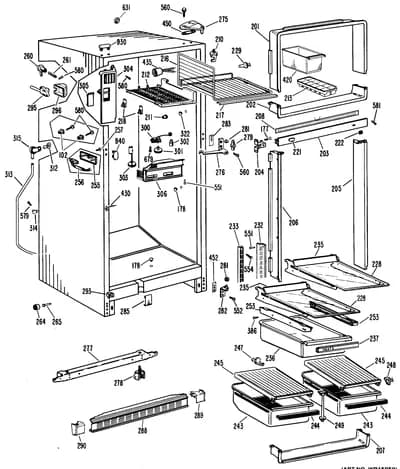

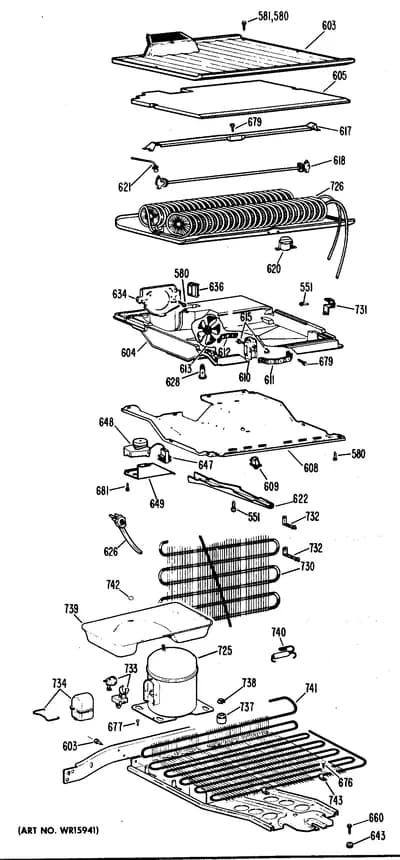

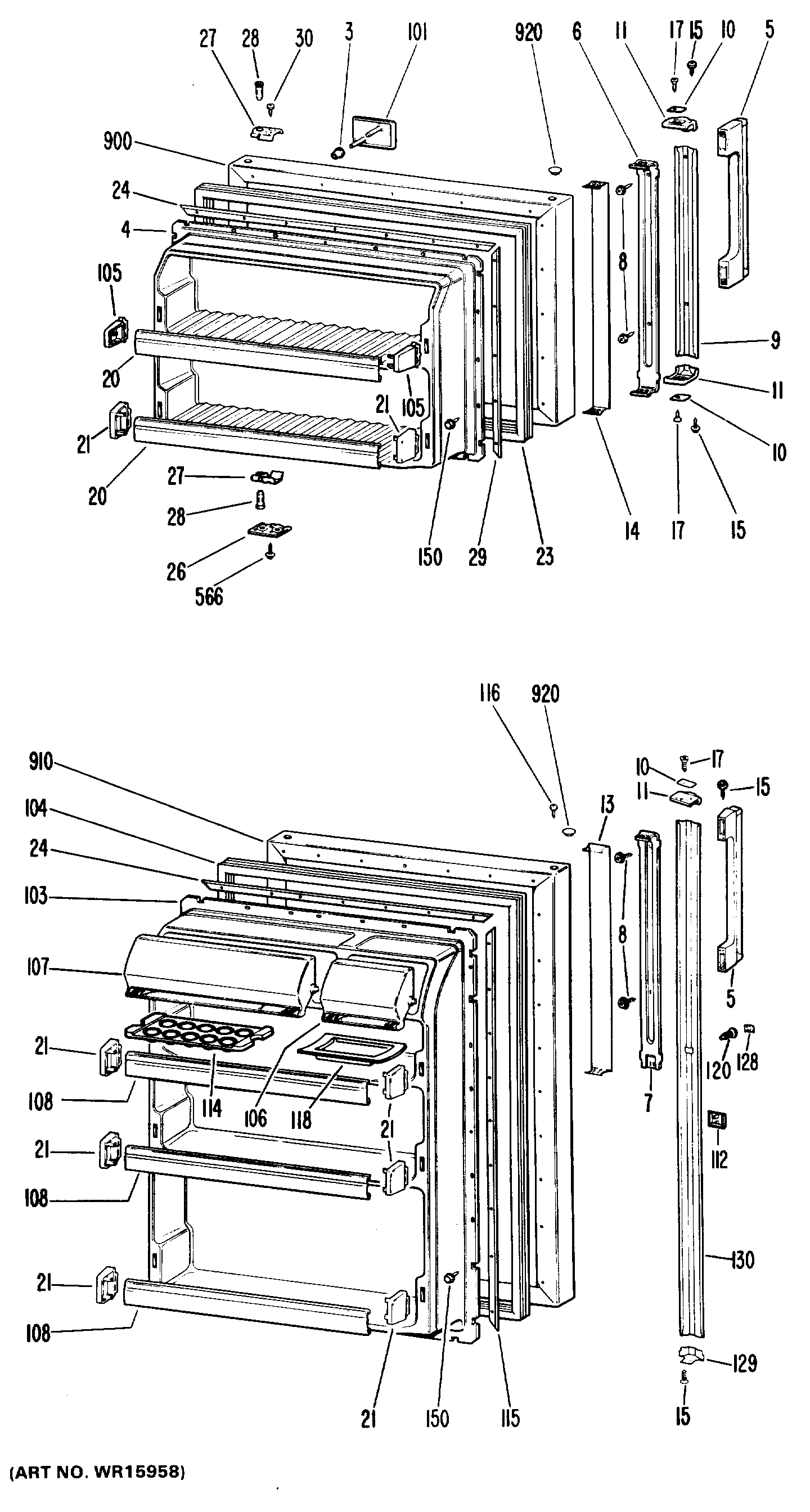

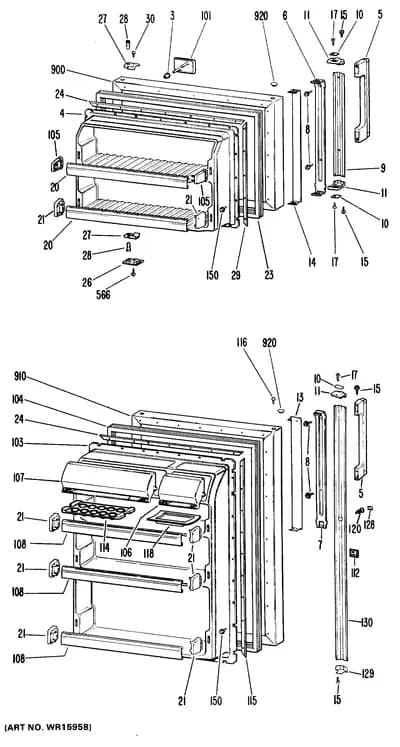

Diagram
Parts List
Parts in Parts List
100 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR77X0455 DOOR INNER FZ(WH) | - |
| 5 | – | WR12X5116 HANDLE DOOR ASM(BRN) | - |
| 5 | – | WR12X5163 HANDLE DOOR ASM(BLK) | - |
| 6 | – | WR17X2042 STIFFENER HANDLE | - |
| 7 | – | WR01X1560 SCR 10-10 BT 30A HXW5/8S | - |
| 7 | – | WR17X5846 STIFFENER HANDLE | - |
| 9 | – | WR38X5275 TRIM DOOR | - |
| 10 | – | WR02X6289 FILLET PLUG CAP | - |
| 11 | – | WR02X6922 CAP TRIM HANDLE | - |
| 13 | – | WR02X6291 SHIM HANDLE DOOR FF | - |
| 14 | – | WR02X6287 SHIM HANDLE DOOR FRZ | - |
| 15 | | WR1X1564Dreplaces WR01X1564 SCR 4/6-20 AB FL 1/2 S | - |
| 18 | – | WR01X1569 SCR 8/10 16 AB FL 3/4 SS | - |
| 20 | – | WR71X1706 FRONT DOOR SHELF | - |
| 21 | – | WR02X6934 CAP SHELF FRT | - |
| 23 | | WR24X0312NLA GASKET FZ O.DOOR (WH) | Discontinued |
| 24 | – | WR02X4704 RETAINER STRIP | - |
| 26 | – | WR02X7282 STOP DOOR 150 DG | - |
| 27 | – | WR02X7281 NUT CHANNEL DOOR | - |
| 28 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 29 | – | WR02X4703 RETAINER STRIP | - |
| 30 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 101 | – | WR04X5064 NAMEPLATE ASM DOOR HPT | - |
| 103 | – | WR77X0456 DOOR INNER FF(WH) | - |
| 104 | | WR24X0319NLA GASKET, FF DOOR | Discontinued |
| 105 | – | WR02X6932 CAP SHELF FRT | - |
| 106 | – | WR22X0315 DOOR BUTTER | - |
| 107 | – | WR22X0316 DOOR DAIRY | - |
| 108 | | FRONT DOOR SHELF | - |
| 112 | | WR04X0173NLA NAMEPLATE-RSVL DR.(BRN) | Discontinued |
| 112 | | WR04X0174NLA NAMEPLATE-RSVL DR.(BLK) | Discontinued |
| 114 | – | WR19X0033 RACK(WH)-12 EGGS | - |
| 115 | – | WR02X7102 RETAINER STRIP | - |
| 116 | | WR1X1570replaces WR01X1570 SCR 4/6-20 AB PA 1/2 SS | - |
| 118 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 120 | – | WR01X1593 SCR 8-32 GX RND 9/16 S | - |
| 128 | – | WR02X6294 PLUG BUTTON TRIM(BRN) | - |
| 129 | – | WR02X6296 CAP TRIM H P | - |
| 130 | – | WR38X5349 TRIM DOOR | - |
| 131 | – | WR01X1567 FASTENER NUT DOOR | - |
| 150 | – | WR01X5030 SCR 6-20 B HX 5/8 S | - |
| 150 | – | WR01X5030 SCR 6-20 B HX 5/8 S | - |
| 207 | – | WR02X4707 CLIP BREAKER | - |
| 207 | – | WR40X1549 BREAKER STRIP BTM | - |
| 216 | – | WR01X1332 RIVET-PLASTIC | - |
| 231 | | WR02X3440NLA CLIP SHELF TRIM | Discontinued |
| 261 | | TUBE WATER FILL | Discontinued |
| 264 |  | WR2X3594replaces WR02X3594 WHEEL MOBILITY | $22.67 RepairClinic |
| 265 | | WR02X4742NLA AXLE WHEEL | Discontinued |
| 270 | – | WR02X3248 PLUG BUTTON 1/4" HOLE | - |
| 288 | – | WR79X5156 GRILLE O. CASE(SL) | - |
| 292 | | WR01X1326NLA GROMMET SCR | Discontinued |
| 316 | – | WR02X4628 RETAINER FILL TUBE | - |
| 435 |  | 40A15replaces STD372402 LAMP 40W 120V | $8.96 Parts Dr |
| 564 | | WE2X186Dreplaces WR01X1194 SCREW | - |
| 565 | | WR1X1361replaces WR01X1361 RIVET POP | - |
| 566 | | WR01X1487NLA SCREW | Discontinued |
| 582 | | WR01X1138NLA GROMMET SCR | Discontinued |
| 582 | – | WR01X1571 SCR 12-24 8PAR 7/8 SS PP | - |
| 635 | – | WR01X1684 GROMMET SCR | - |
| 635 | – | WR02X4717 BRACKET FAN ORIFICE | - |
| 644 | – | WR02X2375 GROMMET | - |
| 684 |  | WB01T10047replaces WZ04X0417 SCREW | - |
| 688 | – | WZ04X0250 SCR 8-15 A PA 3/4 SS | - |
| 750 | | WR82X177replaces WR82X0177 INSUL-1"X30 1/2"X100 FT. | - |
| 900 | – | WR78X7644 FRZ O.DOOR RH/LH WH | - |
| 901 | – | WR78X7645 FRZ O.DOOR RH/LH HA | - |
| 903 | – | WR78X7646 FRZ O.DOOR RH/LH AD | - |
| 910 | – | WR78X7649 FF O.DOOR RH/LH WH | - |
| 911 | – | WR78X7650 FF O.DOOR RH/LH HA | - |
| 913 | – | WR78X7651 FF O.DOOR RH/LH AD | - |
| 920 | | WR2X4930replaces WR02X4930 PLUG BUTTON THIMBLE(WH) | - |
| 921 | – | WR02X4931 PLUG BUTTON THIMBLE(HA) | - |
| 922 | – | WR02X4932 PLUG BUTTON THIMBLE(FA) | - |
| 923 | – | WR02X4933 PLUG BUTTON THIMBLE(CF) | - |
| 924 | – | WR02X4934 PLUG BUTTON THIMBLE(AD) | - |
| 925 | – | WR02X7241 PLUG BUTTON THIMBLE(DS) | - |
| 926 | – | WR02X7242 PLUG BUTTON THIMBLE(SL) | - |
| 930 | – | WR38X0887 COVER TOP HINGE HOLE(WH) | - |
| 931 | – | WR38X0888 COVER TOP HINGE HOLE(HA) | - |
| 932 | – | WR38X0889 COVER TOP HINGE HOLE(FA) | - |
| 933 | – | WR38X0890 COVER TOP HINGE HOLE(CF) | - |
| 934 | – | WR38X0891 COVER TOP HINGE HOLE(AD) | - |
| 935 | – | WR38X1044 COVER TOP HINGE HOLE(DS) | - |
| 936 | – | WR38X1045 COVER TOP HINGE HOLE(SL) | - |
| 940 | – | WR38X0892 COVER CTR HINGE HOLE(WH) | - |
| 941 | – | WR38X0893 COVER CTR HINGE HOLE(HA) | - |
| 942 | – | WR38X0894 COVER CTR HINGE HOLE(FA) | - |
| 943 | – | WR38X0895 COVER CTR HINGE HOLE(CF) | - |
| 944 | – | WR38X0896 COVER CTR HINGE HOLE(AD) | - |
| 945 | – | WR38X1046 COVER CTR HINGE HOLD(DS) | - |
| 946 | – | WR38X1047 COVER CTR HINGE HOLD(SL) | - |
| 32767 | – | 31-5010 PM ATTENTION INSTALLER | - |
| 32767 | – | 39-6211 PM GUIDE OWNERS | - |
| 32767 | – | WR01X1254 RIVET SEMI TUBULAR | - |
| 32767 | – | WR02X3856 SHIM CENTER HINGE | - |
| 32767 | | WR1X1361replaces WR02X4222 RIVET POP | - |
| 32767 | | WR2X9443replaces WR02X4497 SHIM HINGE | $16.13 RepairClinic |
| 32767 |  | WR2X4686Dreplaces WR02X4686 CONNECTOR ELECT | - |
