Model
Hotpoint CTF16GJC
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF16GJCRefrigerator
3 diagrams237 parts
Parts Sections (3)

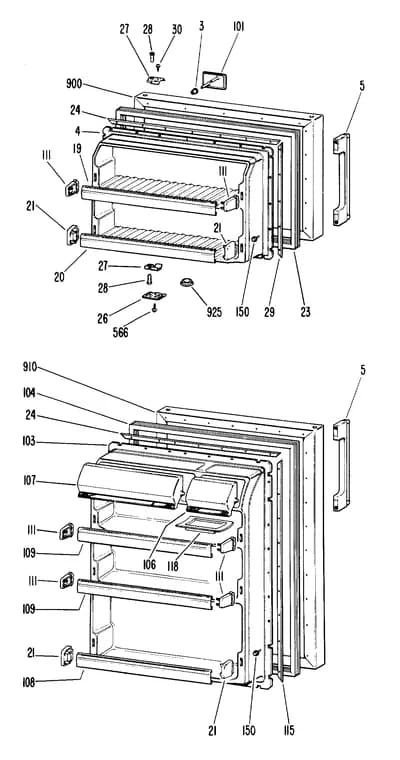

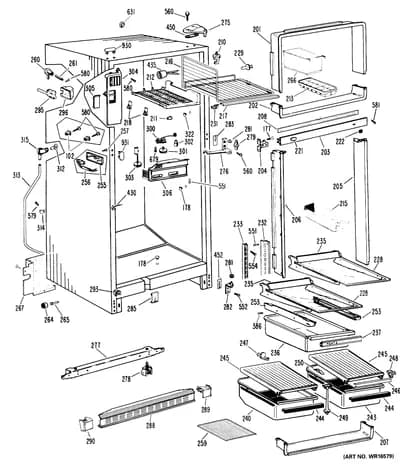

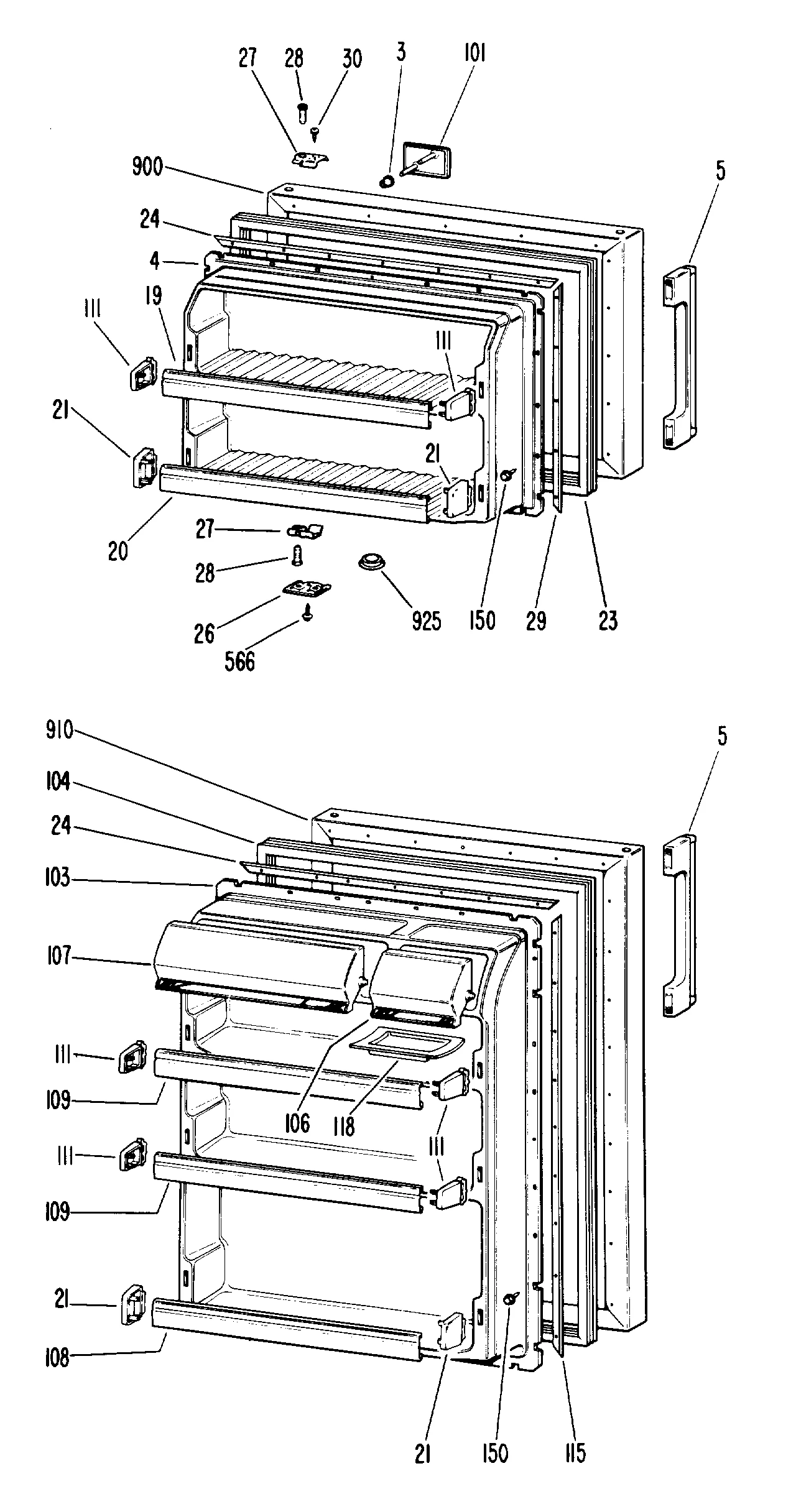

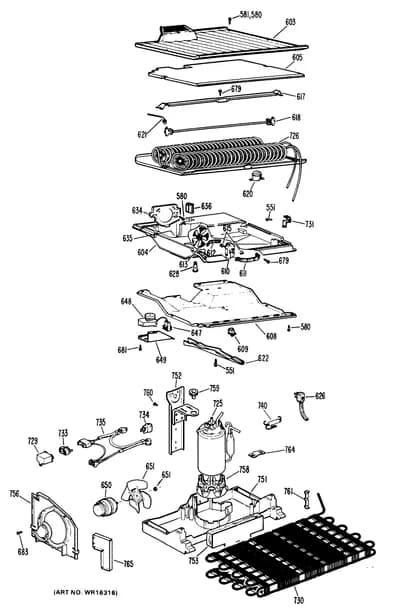

Diagram
Parts List
Parts in Parts List
82 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR77X0455 DOOR INNER FZ(WH) | - |
| 5 | – | WR12X5116 HANDLE DOOR ASM(BRN) | - |
| 6 | – | WR17X2042 STIFFENER HANDLE | - |
| 7 | – | WR01X1560 SCR 10-10 BT 30A HXW5/8S | - |
| 7 | – | WR17X6057 STIFFENER HANDLE | - |
| 9 | – | WR38X5275 TRIM DOOR | - |
| 10 | – | WR02X6289 FILLET PLUG CAP | - |
| 11 | – | WR02X6922 CAP TRIM HANDLE | - |
| 13 | – | WR02X6291 SHIM HANDLE DOOR FF | - |
| 14 | – | WR02X6287 SHIM HANDLE DOOR FRZ | - |
| 15 | | WR1X1564Dreplaces WR01X1564 SCR 4/6-20 AB FL 1/2 S | - |
| 18 | – | WR01X1569 SCR 8/10 16 AB FL 3/4 SS | - |
| 19 | | WR17X11782replaces WR71X1707 FRONT DOOR SHELF | $28.42 PartSelect |
| 20 | – | WR71X1706 FRONT DOOR SHELF | - |
| 21 | – | WR02X6934 CAP SHELF FRT | - |
| 23 | | WR24X0312NLA GASKET FZ O.DOOR (WH) | Discontinued |
| 24 | – | WR02X4704 RETAINER STRIP | - |
| 26 | – | WR02X7282 STOP DOOR 150 DG | - |
| 27 | – | WR02X7281 NUT CHANNEL DOOR | - |
| 28 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 29 | – | WR02X4703 RETAINER STRIP | - |
| 30 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 101 | – | WR04X5064 NAMEPLATE ASM DOOR HPT | - |
| 103 | – | WR77X0456 DOOR INNER FF(WH) | - |
| 104 | | WR24X0319NLA GASKET, FF DOOR | Discontinued |
| 106 | – | WR22X0315 DOOR BUTTER | - |
| 107 | – | WR22X0316 DOOR DAIRY | - |
| 108 | | FRONT DOOR SHELF | - |
| 111 |  | WR2X7283replaces WR02X7283 CAP SHELF FRONT | - |
| 112 | | WR04X0173NLA NAMEPLATE-RSVL DR.(BRN) | Discontinued |
| 115 | – | WR02X7102 RETAINER STRIP | - |
| 116 | | WR1X1570replaces WR01X1570 SCR 4/6-20 AB PA 1/2 SS | - |
| 118 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 119 | – | WR02X6813 CAP HANDLE | - |
| 120 | – | WR01X1593 SCR 8-32 GX RND 9/16 S | - |
| 121 | – | WR38X5274 TRIM DOOR | - |
| 131 | – | WR01X1567 FASTENER NUT DOOR | - |
| 150 | – | WR01X5030 SCR 6-20 B HX 5/8 S | - |
| 150 | – | WR01X5030 SCR 6-20 B HX 5/8 S | - |
| 201 | – | WR40X1545 BREAKER FRAME U | - |
| 242 | – | WR02X7052 BUMPER-COVER | - |
| 265 | | WR02X4742NLA AXLE WHEEL | Discontinued |
| 291 | – | WR74X0177 CLOSURE GRILLE | - |
| 292 | | WR01X1326NLA GROMMET SCR | Discontinued |
| 435 |  | 40A15replaces STD372402 LAMP 40W 120V | $8.96 Parts Dr |
| 564 | | WE2X186Dreplaces WR01X1194 SCREW | - |
| 564 | – | WZ04X0284 SCR 6-20 AB TR 3/8 SS | - |
| 565 | | WR1X1361replaces WR01X1361 RIVET POP | - |
| 566 | | WR01X1487NLA SCREW | Discontinued |
| 568 | – | WZ05X0137 SCR 8-32 SPEC DRILL PT | - |
| 582 | | WR01X1138NLA GROMMET SCR | Discontinued |
| 676 |  | WD2X5166replaces WZ04X0263 SCR 10-16 AB HXW 1/2 | $9.92 Parts Dr |
| 677 | – | WR01X1467 SCR 10-32 G HX 3/8 S | - |
| 684 |  | WB01T10047replaces WZ04X0417 SCREW | - |
| 688 | – | WZ04X0250 SCR 8-15 A PA 3/4 SS | - |
| 725 | – | WR87X0226 MACHINE HI SIDE | - |
| 740 |  | WR86X25269replaces WR86X0086 MONGRAM SERIES P/S | $45.90 Part Advantage |
| 750 | | WR82X177replaces WR82X0177 INSUL-1"X30 1/2"X100 FT. | - |
| 920 | | WR2X4930replaces WR02X4930 PLUG BUTTON THIMBLE(WH) | - |
| 921 | – | WR02X4931 PLUG BUTTON THIMBLE(HA) | - |
| 922 | – | WR02X4932 PLUG BUTTON THIMBLE(FA) | - |
| 923 | – | WR02X4933 PLUG BUTTON THIMBLE(CF) | - |
| 924 | – | WR02X4934 PLUG BUTTON THIMBLE(AD) | - |
| 925 | – | WR02X7241 PLUG BUTTON THIMBLE(DS) | - |
| 926 | – | WR02X7242 PLUG BUTTON THIMBLE(SL) | - |
| 930 | – | WR38X1059 COVER TOP HINGE HOLE(WH) | - |
| 930 | – | WR38X1060 COVER-TOP HINGE HOLE(HA) | - |
| 930 | – | WR38X1061 COVER-TOP HINGE HOLE(AD) | - |
| 32767 | – | 31-5010 PM ATTENTION INSTALLER | - |
| 32767 | – | 39-6232 PM GUIDE OWNERS | - |
| 32767 | – | 39-6300 PM RSVBL HDW INST HPT | - |
| 32767 | – | WR01X1254 RIVET SEMI TUBULAR | - |
| 32767 | – | WR02X3856 SHIM CENTER HINGE | - |
| 32767 | – | WR02X4198 NUTSTRIP TOP HINGE | - |
| 32767 | | WR1X1361replaces WR02X4222 RIVET POP | - |
| 32767 | | WR2X9443replaces WR02X4497 SHIM HINGE | $16.13 RepairClinic |
| 32767 |  | WR2X4686Dreplaces WR02X4686 CONNECTOR ELECT | - |
| 32767 | – | WR38X1062 COVER-TOP HINGE HOLE(DS) | - |
| 32767 | – | WR38X1063 COVER-TOP HINGE HOLE(SL) | - |
| 32767 | – | WR38X1067 COVER-CTR HINGE HOLE(DS) | - |
| 32767 | – | WR38X1068 COVER-CTR HINGE HOLE(SL) | - |
