Model
Hotpoint CTF16GKC
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF16GKCRefrigerator
3 diagrams206 parts
Parts Sections (3)
Diagram
Parts List

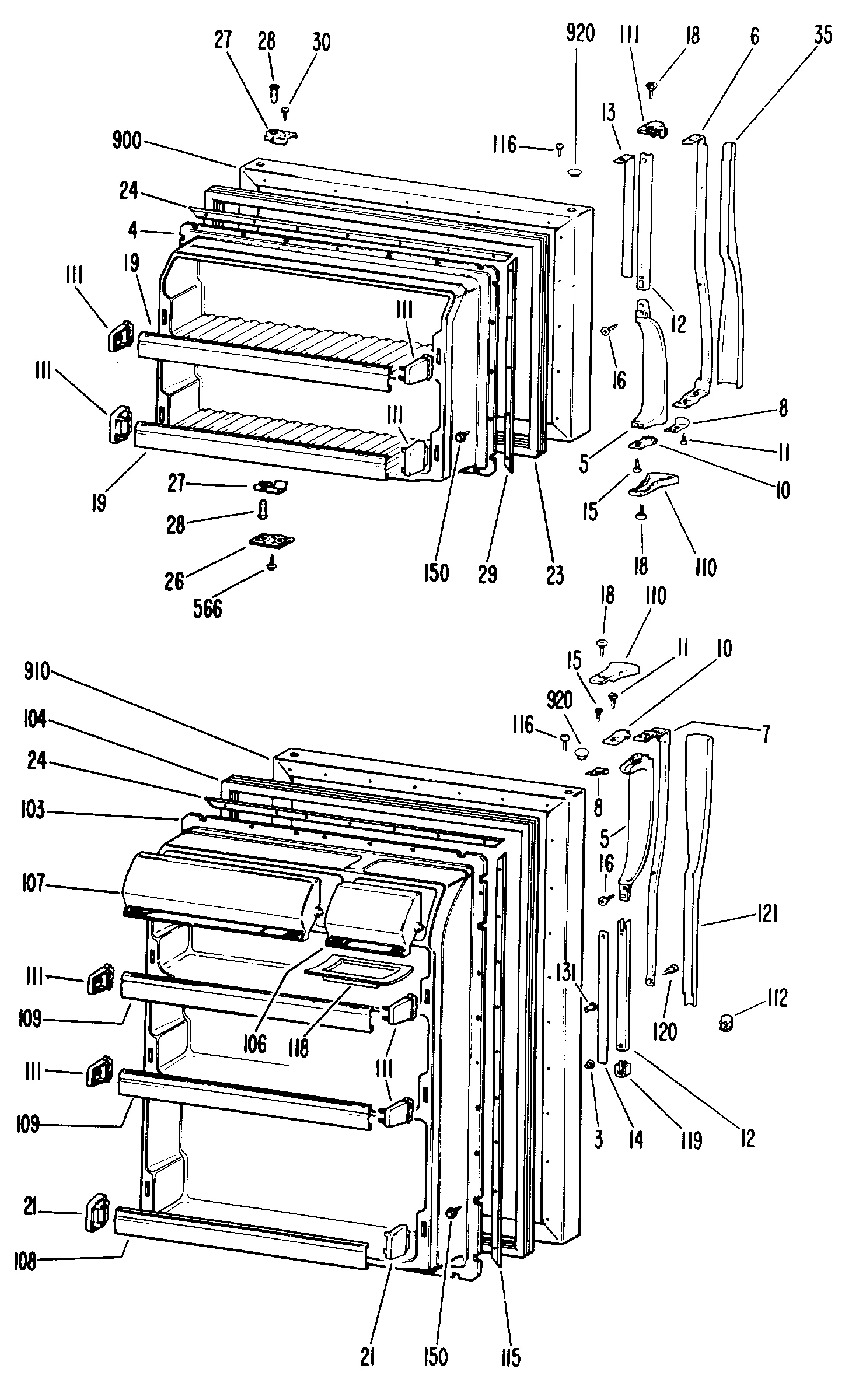

Parts in Parts List
57 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR77X0455 DOOR INNER FZ(WH) | - |
| 5 | | WR12X0463NLA HANDLE DOOR | Discontinued |
| 6 | – | WR12X0654 STIFFENER HANDLE | - |
| 7 | – | WR12X0655 STIFFENER HANDLE | - |
| 8 | – | WR02X4730 SPACER MULLION | - |
| 8 | | WR02X7793NLA SHIM HANDLE ASM | Discontinued |
| 10 | | WR02X7140NLA CLIP HANDLE | Discontinued |
| 11 | – | WZ04X0352 SCREW 8-18 B 7/16 | - |
| 12 | | WR12X0455NLA CHANNEL HANDLE | Discontinued |
| 13 | – | WR02X6303 SHIM HANDLE DOOR | - |
| 14 | – | WR02X4926 SHIM HANDLE DOOR | - |
| 16 | | WR1X1565Dreplaces WR01X1565 SCR 8-32 MA FL 21/32 S | - |
| 18 |  | WR1X1726Dreplaces WR01X1726 SCR 10-16 AB 3/4 SS | $23.52 Part Advantage |
| 19 | | WR17X11782replaces WR71X1707 FRONT DOOR SHELF | $28.42 PartSelect |
| 20 | – | WR71X1706 FRONT DOOR SHELF | - |
| 21 | – | WR02X6934 CAP SHELF FRT | - |
| 23 | | WR24X0312NLA GASKET FZ O.DOOR (WH) | Discontinued |
| 24 | – | WR02X4704 RETAINER STRIP | - |
| 26 | – | WR02X7282 STOP DOOR 150 DG | - |
| 27 | – | WR02X7908 NUT CHANNEL | - |
| 28 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 29 | – | WR02X4703 RETAINER STRIP | - |
| 30 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 35 | – | WR12X0653 INSERT DOOR HANDLE | - |
| 103 | – | WR77X0456 DOOR INNER FF(WH) | - |
| 104 | | WR24X0319NLA GASKET, FF DOOR | Discontinued |
| 106 | – | WR22X0315 DOOR BUTTER | - |
| 107 | – | WR22X0316 DOOR DAIRY | - |
| 108 | | FRONT DOOR SHELF | - |
| 110 | – | WR02X7913 CAP TRIM HANDLE | - |
| 111 |  | WR2X7283replaces WR02X7283 CAP SHELF FRONT | - |
| 111 | | WR02X7792NLA CAP TRIM HANDLE | Discontinued |
| 112 | | WR04X0180NLA NAMEPLATE DR RSV(WH) | Discontinued |
| 115 | – | WR02X7102 RETAINER STRIP | - |
| 119 | – | WR02X4928 CAP HANDLE | - |
| 120 | – | WR01X1592 SCR 8-32 SPECIAL PA S | - |
| 121 | | WR12X0522NLA INSERT DOOR HANDLE(BRN) | Discontinued |
| 131 | – | WR01X1567 FASTENER NUT DOOR | - |
| 150 | – | WR01X5030 SCR 6-20 B HX 5/8 S | - |
| 150 | – | WR01X5030 SCR 6-20 B HX 5/8 S | - |
| 212 | | SHELF ICE TRAY | - |
| 213 |  | WR30X311replaces WR30X0271 TRAY ICE | $5.09 Part Advantage |
| 242 | – | WR02X7052 BUMPER-COVER | - |
| 292 | | WR01X1326NLA GROMMET SCR | Discontinued |
| 435 |  | 40A15replaces STD372402 LAMP 40W 120V | $8.96 Parts Dr |
| 564 | | WE2X186Dreplaces WR01X1194 SCREW | - |
| 565 | | WR1X1361replaces WR01X1361 RIVET POP | - |
| 566 | | WR01X1487NLA SCREW | Discontinued |
| 582 | | WR01X1138NLA GROMMET SCR | Discontinued |
| 750 | | WR82X177replaces WR82X0177 INSUL-1"X30 1/2"X100 FT. | - |
| 920 | | WR2X4930replaces WR02X4930 PLUG BUTTON THIMBLE(WH) | - |
| 921 | – | WR02X4931 PLUG BUTTON THIMBLE(HA) | - |
| 922 | – | WR02X4932 PLUG BUTTON THIMBLE(FA) | - |
| 923 | – | WR02X4933 PLUG BUTTON THIMBLE(CF) | - |
| 924 | – | WR02X4934 PLUG BUTTON THIMBLE(AD) | - |
| 32767 | – | 31-5010 PM ATTENTION INSTALLER | - |
