Model
Hotpoint CTF17AAB
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF17AABRefrigerator
3 diagrams172 parts
Parts Sections (3)
Diagram
Parts List
Parts in Parts List
48 parts

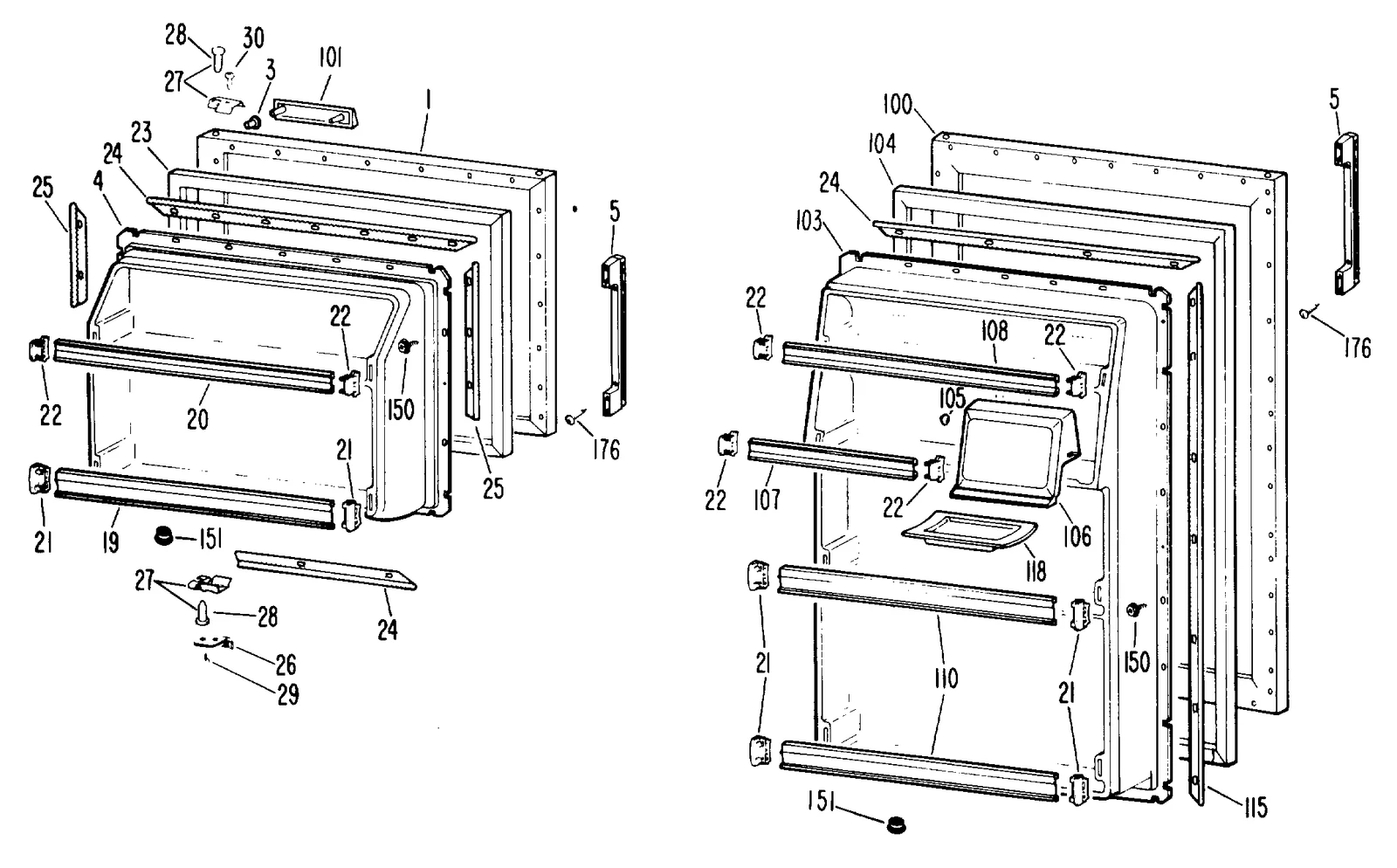

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WR78X6837 FRZ O.DOOR-RH CAB.(WH) | - |
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR77X5513 DOOR INNER FZ | - |
| 5 | – | WR12X5116 HANDLE DOOR ASM(BRN) | - |
| 19 | – | WR71X1216 FRONT DOOR SHELF | - |
| 20 | – | WR17X5904 FRONT DOOR SHELF | - |
| 21 | | WR2X4100replaces WR02X4100 CAP SHELF FRT | - |
| 22 | | CAP SHELF FRT | Discontinued |
| 23 | | WR24X0302NLA GASKET O.DOOR FZ (WH) | Discontinued |
| 24 | – | WR17X0857 RETAINER TOP BTM | - |
| 25 | – | WR17X1209 RETAINER SIDES | - |
| 26 | – | WR02X6293 STOP DOOR | - |
| 27 | | WR1X1561replaces WR02X6277 NUT CHANNEL DOOR | - |
| 28 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 29 | | WZ4X261Dreplaces WZ04X0261 SCR 10-16 B PA 1/2 SS | - |
| 30 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 100 | – | WR78X6843 FF O.DOOR-RH CAB.(WH) | - |
| 101 | – | WR04X5053 NAMEPLATE ASM | - |
| 103 | – | WR77X5514 DOOR INNER FF | - |
| 104 | | WR24X0303NLA GASKET O.DOOR FF (WH) | Discontinued |
| 105 | – | WR02X6349 PLUG BUTTON(.218"DIA.) | - |
| 106 | – | WR22X5039 DOOR DAIRY | - |
| 107 | – | WR17X5918 SHELF FRONT | - |
| 108 | – | WR17X5905 FRONT DOOR SHELF | - |
| 110 | – | WR71X1217 FRONT DOOR SHELF | - |
| 115 | – | WR17X1530 RETAINER STRIP | - |
| 118 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 150 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 151 | – | WR02X7055 PLUG BUTTON(.370" DIA.) | - |
| 176 | | WZ6X112Dreplaces WZ06X0112 SCREW 10-10X1 | - |
| 210 | – | WR02X7016 SUPPORT FRZ SHELF | - |
| 280 | – | WR02X4400 NUT STRIP | - |
| 303 | – | WR02X7008 SHAFT DAMPER | - |
| 305 | – | WR02X7009 INSUL FOAM NOZZLE | - |
| 305 | – | WR14X0283 WR02X7985 | - |
| 322 | – | WR02X6345 PLUG BUTTON | - |
| 354 |  | WR60X114replaces WR02X3198 COMP. RING, EVAP. FAN | $14.23 Part Advantage |
| 551 | | WZ04X0244NLA SCREW-FRONT | Discontinued |
| 562 | – | WZ04X0331 SCR 8-15 A RND 1 1/2 SS | - |
| 565 | | WR1X1361replaces WR01X1361 RIVET POP | - |
| 570 | – | WZ04X0331 SCR 8-15 A RND 1 1/2 SS | - |
| 649 | – | WR02X7027 BRACKET DEFROST CONTROL | - |
| 687 | – | WZ04X0224 SCR 6-19 HI/LO HXW 1/2 S | - |
| 694 | – | WZ05X0247 SCR 12-24 C HXW 3/8 S | - |
| 731 | – | WR02X4621 CLIP COND | - |
| 734 | – | WR02X3583 CLIP RELAY COVER | - |
| 734 | – | WR02X3867 COVER RELAY | - |
| 9999 | – | 39-6167 FRESH - FROZEN FOOD STOR | - |
