Model
Hotpoint CTF17CCBR
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF17CCBRRefrigerator
3 diagrams201 parts
Parts Sections (3)

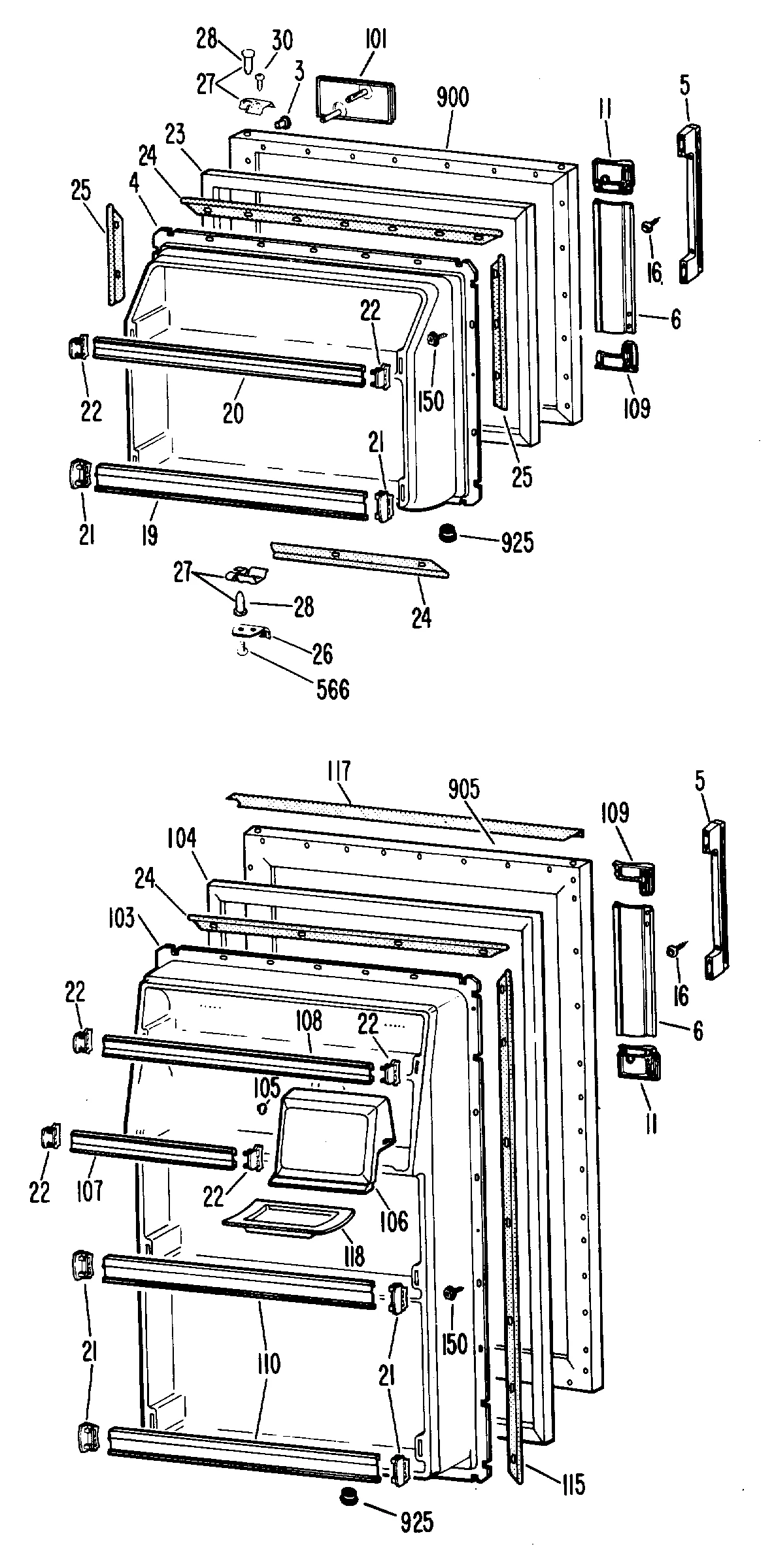

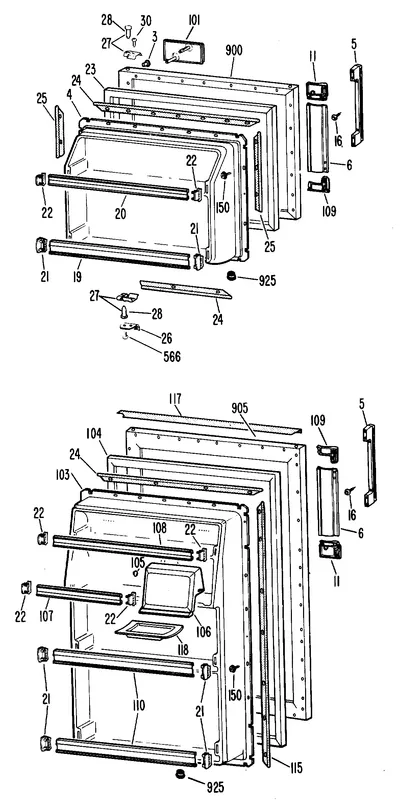

Diagram
Parts List
Parts in Parts List
61 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR77X5513 DOOR INNER FZ | - |
| 5 | – | WR12X5116 HANDLE DOOR ASM(BRN) | - |
| 6 | – | WR03X5091 TRIM-RH FZ-LH FF DOOR | - |
| 6 | – | WR03X5092 TRIM-LH FZ-RH FF DOOR | - |
| 7 | – | WR02X6141 TAPE FOAM | - |
| 11 | – | WR03X5103 CAP TRIM-RH FZ-LH FF DR | - |
| 11 | – | WR03X5104 CAP TRIM-LH FZ-RH FF DR | - |
| 16 | | WZ6X112Dreplaces WZ06X0112 SCREW 10-10X1 | - |
| 19 | – | WR71X5977 FRONT DOOR SHELF | - |
| 20 | – | WR71X5976 FRONT DOOR SHELF | - |
| 21 | | WR2X4100replaces WR02X4100 CAP SHELF FRT | - |
| 22 | | CAP SHELF FRT | Discontinued |
| 23 | | WR24X0302NLA GASKET O.DOOR FZ (WH) | Discontinued |
| 24 | – | WR17X0857 RETAINER TOP BTM | - |
| 25 | – | WR17X1209 RETAINER SIDES | - |
| 26 | – | WR02X6293 STOP DOOR | - |
| 27 | | WR1X1561replaces WR02X6277 NUT CHANNEL DOOR | - |
| 28 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 30 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 101 | – | WR04X5064 NAMEPLATE ASM DOOR HPT | - |
| 103 | – | WR77X5514 DOOR INNER FF | - |
| 104 | | WR24X0303NLA GASKET O.DOOR FF (WH) | Discontinued |
| 105 | – | WR02X6349 PLUG BUTTON(.218"DIA.) | - |
| 106 | – | WR22X5042 DOOR DAIRY | - |
| 107 | – | WR71X5980 FRONT DOOR SHELF | - |
| 108 | | WR17X11782replaces WR71X5979 FRONT DOOR SHELF | $28.42 PartSelect |
| 109 | – | WR03X5105 CAP TRIM DR | - |
| 109 | – | WR03X5106 CAP TRIM DR | - |
| 110 | | FRONT DOOR SHELF | - |
| 115 | – | WR17X1530 RETAINER STRIP | - |
| 117 | – | WR38X5384 TRIM DOOR | - |
| 118 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 150 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 176 | – | WZ05X0166 SCREW | - |
| 284 | – | WR02X7083 NUTSTRIP-TOP HINGE | - |
| 305 | – | WR02X7009 INSUL FOAM NOZZLE | - |
| 422 | – | WR01X1332 RIVET-PLASTIC | - |
| 551 | | WZ04X0244NLA SCREW-FRONT | Discontinued |
| 553 | – | WZ04X0343 SCR 6-20 B TR 1/4 SS | - |
| 566 | | WR01X1487NLA SCREW | Discontinued |
| 569 | – | WR01X1545 RIVET POP | - |
| 573 | – | WZ04X0254 SCREW | - |
| 649 | – | WR02X7027 BRACKET DEFROST CONTROL | - |
| 655 | | WR01X1601NLA GROMMET SCR | Discontinued |
| 676 |  | WD2X5166replaces WZ04X0263 SCR 10-16 AB HXW 1/2 | $9.92 Parts Dr |
| 687 | – | WZ04X0224 SCR 6-19 HI/LO HXW 1/2 S | - |
| 694 | – | WZ05X0247 SCR 12-24 C HXW 3/8 S | - |
| 731 | – | WR02X4621 CLIP COND | - |
| 734 | – | WR02X3583 CLIP RELAY COVER | - |
| 734 | – | WR02X3867 COVER RELAY | - |
| 900 | – | WR78X7294 FRZ O.DOOR-RH CAB(WH) | - |
| 901 | – | WR78X7295 FRZ O.DOOR-RH CAB(HA) | - |
| 904 | – | WR78X7296 FRZ O.DOOR-RH CAB(AD) | - |
| 905 | – | WR78X6843 FF O.DOOR-RH CAB.(WH) | - |
| 906 | – | WR78X6844 FF O.DOOR-RH CAB.(HA) | - |
| 909 | – | WR78X6845 FF O.DOOR-RH CAB.(AD) | - |
| 925 | – | WR02X7055 PLUG BUTTON(.370" DIA.) | - |
| 926 | – | WR02X7056 PLUG BUTTON(HA) | - |
| 929 | – | WR02X7059 PLUG BUTTON(AD) | - |
| 9999 | – | 39-6193 PM GUIDE OWNERS CTF17/19 | - |
