Model
Hotpoint CTF17EAB
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF17EABRefrigerator
3 diagrams223 parts
Parts Sections (3)
Diagram
Parts List

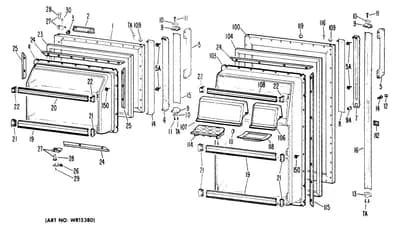

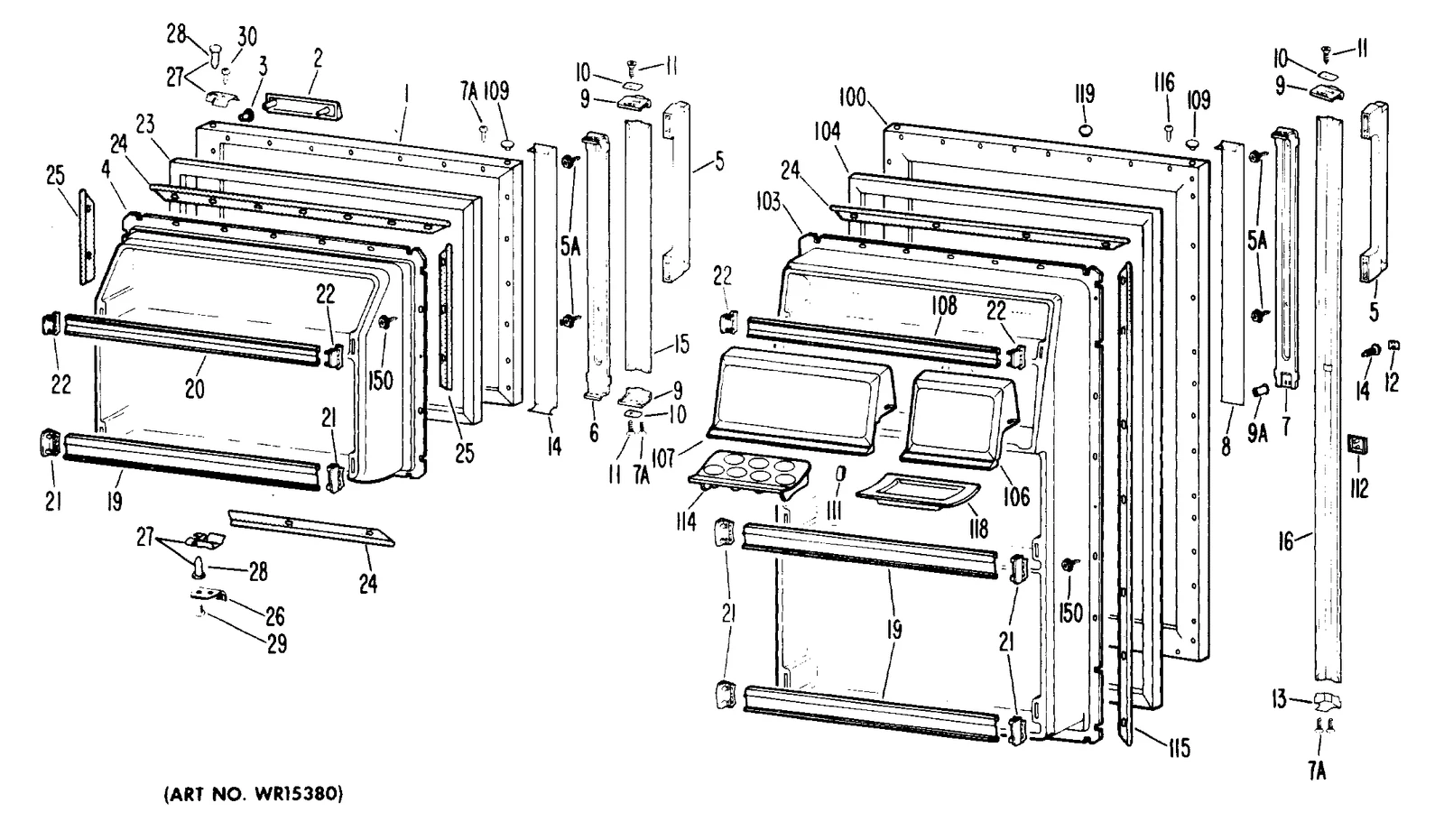

Parts in Parts List
74 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WR78X7089 FRZ O.DOOR-RH/LH CAB(WH) | - |
| 1 | – | WR78X7090 FRZ O.DOOR-RH/LH CAB(HA) | - |
| 1 | – | WR78X7091 FRZ O.DOOR-RH/LH CAB(FA) | - |
| 1 | – | WR78X7093 FRZ O.DOOR-RH/LH CAB(AD) | - |
| 2 | – | WR04X5053 NAMEPLATE ASM | - |
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR77X5513 DOOR INNER FZ | - |
| 5 | – | WR01X1560 SCR 10-10 BT 30A HXW5/8S | - |
| 5 | – | WR12X5116 HANDLE DOOR ASM(BRN) | - |
| 6 | – | WR17X5850 STIFFENER HANDLE | - |
| 7 | | WR1X1564Dreplaces WR01X1564 SCR 4/6-20 AB FL 1/2 S | - |
| 7 | – | WR17X5849 STIFFENER HANDLE | - |
| 8 | – | WR02X6295 SHIM HANDLE DOOR | - |
| 9 | – | WR01X1567 FASTENER NUT DOOR | - |
| 9 | – | WR02X6288 CAP TRIM HANDLE | - |
| 10 | – | WR02X6289 FILLET PLUG CAP | - |
| 11 | – | WR01X1569 SCR 8/10 16 AB FL 3/4 SS | - |
| 12 | – | WR02X6294 PLUG BUTTON TRIM(BRN) | - |
| 13 | – | WR02X6296 CAP TRIM H P | - |
| 14 | – | WR02X6297 SHIM HANDLE DOOR | - |
| 15 | – | WR38X5280 TRIM FZ DOOR(BRN) | - |
| 16 | – | WR38X5304 TRIM DOOR(BRN) | - |
| 19 | | SHELF FRONT | - |
| 20 | – | WR17X5897 SHELF FRONT FF DOOR | - |
| 21 | | WR2X4100replaces WR02X4100 CAP SHELF FRT | - |
| 22 | | CAP SHELF FRT | Discontinued |
| 23 | | WR24X0302NLA GASKET O.DOOR FZ (WH) | Discontinued |
| 24 | – | WR17X0857 RETAINER TOP BTM | - |
| 25 | – | WR17X1209 RETAINER SIDES | - |
| 26 | – | WR02X6293 STOP DOOR | - |
| 27 | | WR1X1561replaces WR02X6277 NUT CHANNEL DOOR | - |
| 28 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 29 | | WZ4X261Dreplaces WZ04X0261 SCR 10-16 B PA 1/2 SS | - |
| 30 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 100 | – | WR78X7094 FF O.DOOR-RH/LH CAB.(WH) | - |
| 100 | – | WR78X7095 FF O.DOOR-RH/LH CAB.(HA) | - |
| 100 | – | WR78X7096 FF O.DOOR-RH/LH CAB.(FA) | - |
| 100 | – | WR78X7098 FF O.DOOR-RH/LH CAB.(AD) | - |
| 103 | – | WR77X5514 DOOR INNER FF | - |
| 104 | | WR24X0303NLA GASKET O.DOOR FF (WH) | Discontinued |
| 106 | – | WR22X5031 DOOR DAIRY ASM | - |
| 107 | – | WR22X5032 DOOR DAIRY ASM | - |
| 108 | – | WR17X5892 SHELF FRONT FF DR. | - |
| 109 | | WR2X4930replaces WR02X4930 PLUG BUTTON THIMBLE(WH) | - |
| 109 | – | WR02X4931 PLUG BUTTON THIMBLE(HA) | - |
| 109 | – | WR02X4932 PLUG BUTTON THIMBLE(FA) | - |
| 109 | – | WR02X4934 PLUG BUTTON THIMBLE(AD) | - |
| 111 | – | WR02X6340 PLUG BUTTON(1.0"X.25") | - |
| 112 | | WR04X5058NLA NAMEPLATE DOOR ASM | Discontinued |
| 114 | – | WR02X6318 RACK EGG (7 EGGS) | - |
| 115 | – | WR17X1530 RETAINER STRIP | - |
| 116 | | WR1X1570replaces WR01X1570 SCR 4/6-20 AB PA 1/2 SS | - |
| 118 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 119 | – | WR02X4805 PLUG BUTTON (WH) | - |
| 120 | – | WR01X1593 SCR 8-32 GX RND 9/16 S | - |
| 150 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 205 | – | WR02X6344 COVER SUPPORT | - |
| 231 | | WR02X3440NLA CLIP SHELF TRIM | Discontinued |
| 241 | | WR17X2188replaces WR17X5894 HANDLE PAN L. SIDE | - |
| 277 | | WR2X4194replaces WR02X4194 SHIM HINGE TOP | - |
| 280 | – | WR02X4400 NUT STRIP | - |
| 303 | – | WR02X7008 SHAFT DAMPER | - |
| 305 | – | WR02X7009 INSUL FOAM NOZZLE | - |
| 305 | – | WR14X0283 WR02X7985 | - |
| 354 |  | WR60X114replaces WR02X3198 COMP. RING, EVAP. FAN | $14.23 Part Advantage |
| 565 | | WR1X1361replaces WR01X1361 RIVET POP | - |
| 649 | – | WR02X7027 BRACKET DEFROST CONTROL | - |
| 687 | – | WZ04X0224 SCR 6-19 HI/LO HXW 1/2 S | - |
| 694 | – | WZ05X0247 SCR 12-24 C HXW 3/8 S | - |
| 731 | – | WR02X4621 CLIP COND | - |
| 734 | – | WR02X3583 CLIP RELAY COVER | - |
| 734 | – | WR02X3867 COVER RELAY | - |
| 9999 | – | 30-6030 FRESH - FROZEN FOOD STOR | - |
| 9999 | – | 39-6160 FRESH - FROZEN FOOD STOR | - |
