Model
Hotpoint CTF17GCDR
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF17GCDRRefrigerator
3 diagrams233 parts
Parts Sections (3)
Diagram
Parts List
Parts in Parts List
77 parts

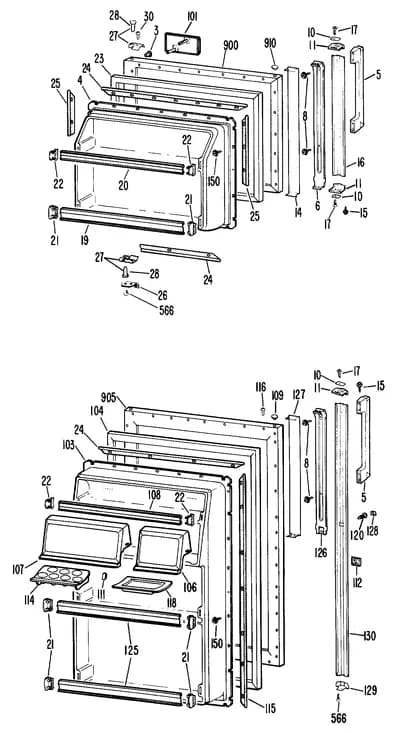

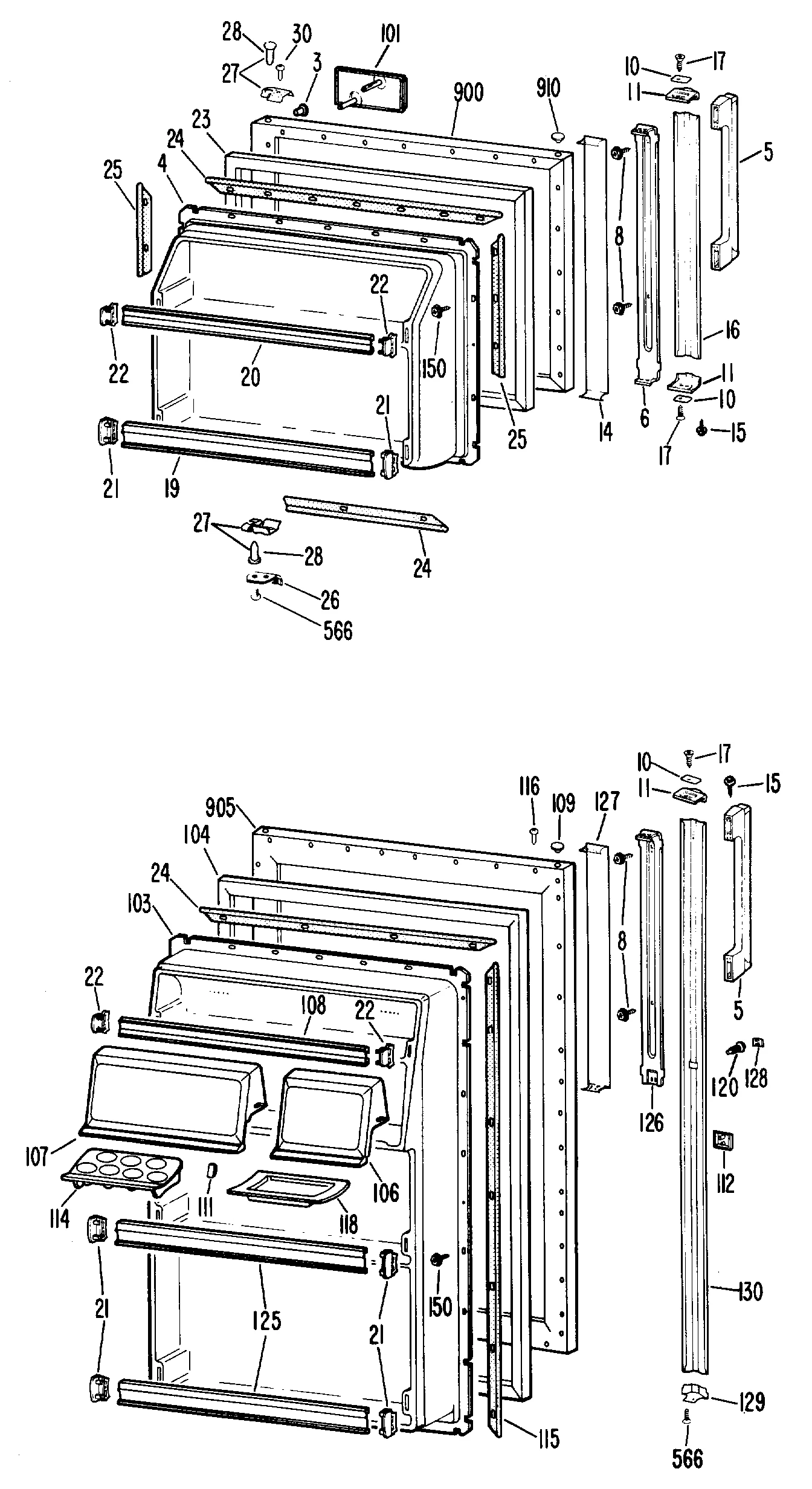

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR77X5513 DOOR INNER FZ | - |
| 5 | – | WR12X5116 HANDLE DOOR ASM(BRN) | - |
| 6 | – | WR17X5850 STIFFENER HANDLE | - |
| 8 | – | WR01X1560 SCR 10-10 BT 30A HXW5/8S | - |
| 10 | – | WR02X6289 FILLET PLUG CAP | - |
| 11 | – | WR02X6922 CAP TRIM HANDLE | - |
| 14 | – | WR02X6297 SHIM HANDLE DOOR | - |
| 15 | | WR1X1564Dreplaces WR01X1564 SCR 4/6-20 AB FL 1/2 S | - |
| 16 | – | WR38X5280 TRIM FZ DOOR(BRN) | - |
| 17 | – | WR01X1569 SCR 8/10 16 AB FL 3/4 SS | - |
| 19 | | FRONT DOOR SHELF | - |
| 20 | – | WR71X5966 FRONT DOOR SHELF | - |
| 21 | | WR2X4100replaces WR02X4100 CAP SHELF FRT | - |
| 22 | | CAP SHELF FRT | Discontinued |
| 23 | | WR24X0302NLA GASKET O.DOOR FZ (WH) | Discontinued |
| 24 | – | WR17X0857 RETAINER TOP BTM | - |
| 25 | – | WR17X1209 RETAINER SIDES | - |
| 26 | – | WR02X7230 STOP DOOR | - |
| 27 | – | WR02X7229 NUT CHANNEL | - |
| 28 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 30 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 101 | – | WR04X5064 NAMEPLATE ASM DOOR HPT | - |
| 103 | – | WR77X5627 DOOR INNER FF | - |
| 104 | | WR24X0303NLA GASKET O.DOOR FF (WH) | Discontinued |
| 106 | – | WR22X5056 DOOR DAIRY ASM | - |
| 107 | – | WR22X5058 DOOR DAIRY | - |
| 108 | – | WR71X5969 FRONT DOOR SHELF | - |
| 111 | – | WR02X6340 PLUG BUTTON(1.0"X.25") | - |
| 112 | | WR04X0173NLA NAMEPLATE-RSVL DR.(BRN) | Discontinued |
| 114 | – | WR19X5013 RACK EGG (7 EGGS) | - |
| 115 | – | WR17X1530 RETAINER STRIP | - |
| 116 | | WR1X1570replaces WR01X1570 SCR 4/6-20 AB PA 1/2 SS | - |
| 118 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 120 | – | WR01X1593 SCR 8-32 GX RND 9/16 S | - |
| 125 | | FRONT DOOR SHELF | - |
| 126 | – | WR17X5849 STIFFENER HANDLE | - |
| 127 | – | WR02X6295 SHIM HANDLE DOOR | - |
| 128 | – | WR02X6294 PLUG BUTTON TRIM(BRN) | - |
| 129 | – | WR02X6296 CAP TRIM H P | - |
| 130 | – | WR38X5304 TRIM DOOR(BRN) | - |
| 150 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 176 | – | WZ05X0166 SCREW | - |
| 209 | – | WR02X6346 SUPPORT TWIST FZ SHELF | - |
| 218 | – | WR14X0328 GASKET MULLION | - |
| 231 | | WR02X3440NLA CLIP SHELF TRIM | Discontinued |
| 284 | – | WR02X7083 NUTSTRIP-TOP HINGE | - |
| 305 | – | WR02X7009 INSUL FOAM NOZZLE | - |
| 422 | – | WR01X1332 RIVET-PLASTIC | - |
| 553 | – | WZ04X0343 SCR 6-20 B TR 1/4 SS | - |
| 561 | | WR01X1645NLA SCR12-24TT HXW 1 3/64SPP | Discontinued |
| 566 | | WR01X1487NLA SCREW | Discontinued |
| 569 | – | WR01X1545 RIVET POP | - |
| 573 | – | WZ04X0254 SCREW | - |
| 649 | – | WR02X7027 BRACKET DEFROST CONTROL | - |
| 655 | | WR01X1601NLA GROMMET SCR | Discontinued |
| 687 | – | WZ04X0224 SCR 6-19 HI/LO HXW 1/2 S | - |
| 694 | – | WZ05X0247 SCR 12-24 C HXW 3/8 S | - |
| 731 | – | WR02X4621 CLIP COND | - |
| 734 | – | WR02X3583 CLIP RELAY COVER | - |
| 734 | – | WR02X3867 COVER RELAY | - |
| 900 | – | WR78X7404 FRZ O.DOOR-RH/LH CAB(WH) | - |
| 901 | – | WR78S7405 FRZ. O.DOOR-RH/LH CAB (H | - |
| 902 | – | WR78X7406 FRZ O.DOOR-RH/LH CAB(FA) | - |
| 903 | – | WR78X7407 FRZ O.DOOR-RH/LH CAB(CF) | - |
| 904 | – | WR78X7408 FRZ O.DOOR-RH/LH CAB(AD) | - |
| 905 | – | WR78X7409 FF O.DOOR-RH/LH CAB(WH) | - |
| 906 | – | WR78X7410 FF O.DOOR-RH/LH CAB(HA) | - |
| 907 | – | WR78X7411 FF O.DOOR-RH/LH CAB(FA) | - |
| 908 | – | WR78X7412 FF O.DOOR-RH/LH CAB(CF) | - |
| 909 | – | WR78X7413 FF O.DOOR-RH/LH CAB(AD) | - |
| 910 | | WR2X4930replaces WR02X4930 PLUG BUTTON THIMBLE(WH) | - |
| 911 | – | WR02X4931 PLUG BUTTON THIMBLE(HA) | - |
| 912 | – | WR02X4932 PLUG BUTTON THIMBLE(FA) | - |
| 913 | – | WR02X4933 PLUG BUTTON THIMBLE(CF) | - |
| 914 |  | WR2X4944replaces WR02X4944 CLIP SHELF TRIM | - |
| 9999 | – | 39-6201 PM GUIDE OWNERS | - |
