Model
Hotpoint CTF18EAB
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF18EABRefrigerator
3 diagrams237 parts
Parts Sections (3)

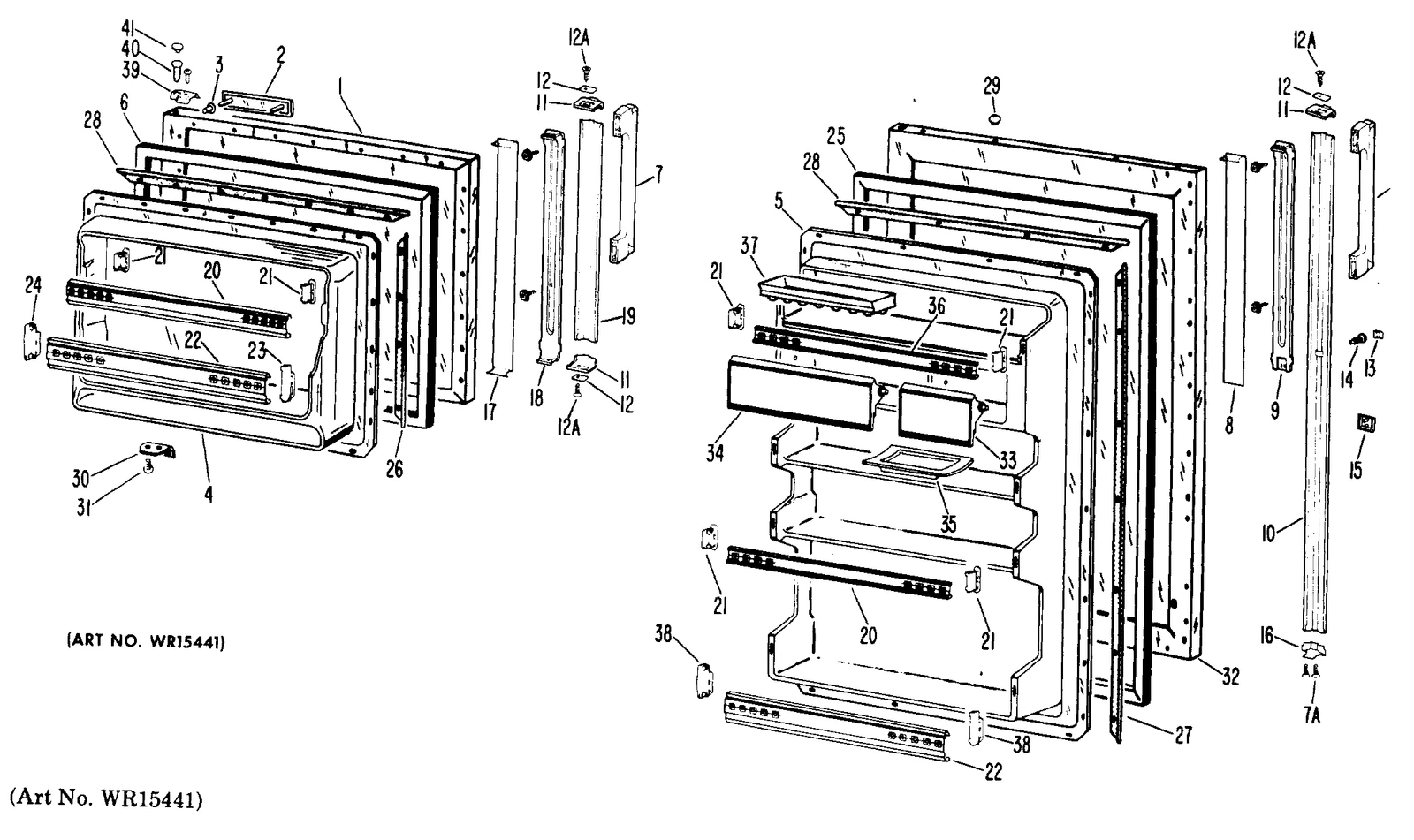

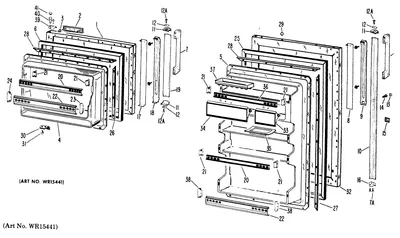

Diagram
Parts List
Parts in Parts List
63 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WR78X4973 FRZ. O.D. PANEL (HA) | - |
| 1 | – | WR78X4974 FRZ. O.D. PANEL (FA) | - |
| 1 | – | WR78X4976 FRZ. O.D. PANEL (AD) | - |
| 1 | – | WR78X7051 FRZ. O.D. PANEL (SN WH) | - |
| 2 | – | WR04X5053 NAMEPLATE ASM | - |
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR77X0221 I.D. PANEL | - |
| 5 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 5 | – | WR77X5438 I.D. PANEL FF | - |
| 6 | – | WR24X5137 GASKET FRZ. | - |
| 7 | – | WR01X1560 SCR 10-10 BT 30A HXW5/8S | - |
| 7 | – | WR12X5116 HANDLE DOOR ASM(BRN) | - |
| 8 | – | WR02X6301 SHIM | - |
| 9 | | WR1X1564Dreplaces WR01X1564 SCR 4/6-20 AB FL 1/2 S | - |
| 9 | – | WR17X5851 SUPPORT | - |
| 10 | – | WR38X5285 TRIM | - |
| 11 | – | WR02X6288 CAP TRIM HANDLE | - |
| 12 | – | WR01X1569 SCR 8/10 16 AB FL 3/4 SS | - |
| 12 | – | WR02X6289 FILLET PLUG CAP | - |
| 13 | – | WR02X6294 PLUG BUTTON TRIM(BRN) | - |
| 14 | | WR01X5478NLA SCREW TRIM TO DOOR | Discontinued |
| 14 | | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 15 | | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 15 | | WR04X5058NLA NAMEPLATE DOOR ASM | Discontinued |
| 16 | | WR1X1564Dreplaces WR01X1564 SCR 4/6-20 AB FL 1/2 S | - |
| 16 | – | WR02X6296 CAP TRIM H P | - |
| 17 | – | WR02X6297 SHIM HANDLE DOOR | - |
| 18 | | WR1X1564Dreplaces WR01X1564 SCR 4/6-20 AB FL 1/2 S | - |
| 18 | – | WR17X5852 SUPPORT | - |
| 19 | – | WR38X5283 TRIM | - |
| 20 | – | WR17X5816 SHELF FRONT TOP | - |
| 21 | | CAP SHELF FRT | Discontinued |
| 22 | | SHELF FRONT | - |
| 23 | – | WR02X5800 END CAP-R. SIDE | - |
| 24 | | WR2X5801replaces WR02X5801 END CAP-L. SIDE | - |
| 25 | – | WR24X0272 GASKET, FF DOOR | - |
| 26 | – | WR02X4949 RETAINER SIDES FRZ. | - |
| 27 | – | WR17X0911 RETAINER-SIDES | - |
| 28 | – | WR17X0857 RETAINER TOP BTM | - |
| 29 | – | WR02X4805 PLUG BUTTON (WH) | - |
| 29 | – | WR02X4862 PLUG BUTTON (HA) | - |
| 29 | – | WR02X4863 PLUG BUTTON O. DOOR (FA) | - |
| 29 | – | WR02X4865 PLUG BUTTON (AD) | - |
| 30 | – | WR02X4920 STOP DOOR | - |
| 31 | | WZ4X261Dreplaces WZ04X0261 SCR 10-16 B PA 1/2 SS | - |
| 32 | | WR1X1570replaces WR01X1570 SCR 4/6-20 AB PA 1/2 SS | - |
| 32 | – | WR78X4978 FF O.D. PANEL (HA) | - |
| 32 | – | WR78X4979 O.D. PANEL FF (FA) | - |
| 32 | – | WR78X4981 FF O.D. PANEL (AD) | - |
| 32 | – | WR78X7055 FF O.D. PANEL (SN WH) | - |
| 33 | – | WR22X5024 BUTTER DOOR | - |
| 34 | – | WR22X5025 CHEESE DOOR | - |
| 35 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 36 | – | WR17X5818 SHELF FRONT (TOP)-FF DR. | - |
| 37 | – | WR02X6247 EGG RACK | - |
| 38 | | WR2X4100replaces WR02X4100 CAP SHELF FRT | - |
| 39 | | WR1X1561replaces WR01X1561 NUT CHANNEL DOOR | - |
| 39 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 40 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 41 | | WR2X4930replaces WR02X4930 PLUG BUTTON THIMBLE(WH) | - |
| 79 | – | WR02X4922 PLUG BUTTON MULLION | - |
| 87 | – | WR82X0199 COVER ACCESS ASM | - |
| 116 | – | WR02X4099 BRACKET GRILLE L. SIDE | - |
