Model
Hotpoint CTF18ELC
Refrigerator
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF18ELCRefrigerator
2 diagrams249 parts
Parts Sections (2)

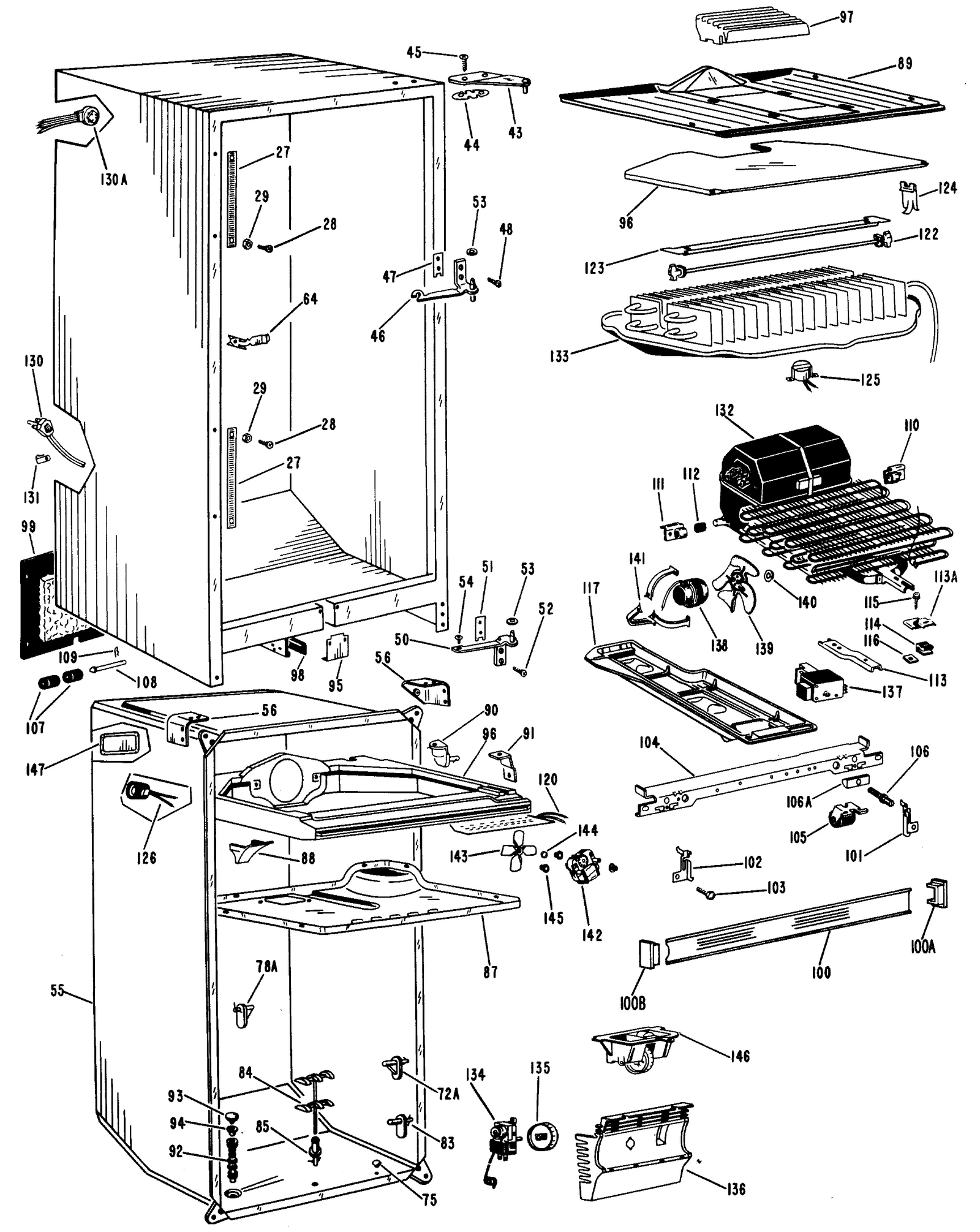

Diagram
Parts List
Parts in Parts List
123 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 27 | – | WR10X0120 STRIKE | - |
| 28 | – | WZ02X0505 SCREW - STRIKE | - |
| 29 | – | WR01X1133 NUT - SCREW | - |
| 43 | – | WR13X0419 HINGE BRACKET-RH CAB. TO | - |
| 43 | – | WR13X0420 HINGE BRACKET-LH CAB. TO | - |
| 43 | – | WR13X0454 HINGE COVER | - |
| 44 |  | WR2X4194replaces WR02X3845 SHIM | - |
| 45 | | WR01X1249NLA SCREW | Discontinued |
| 46 | – | WR13X0440 HINGE CENTER-RH CAB. | - |
| 46 | – | WR13X0441 HINGE CENTER-LH CAB. | - |
| 47 | – | WR02X3856 SHIM CENTER HINGE | - |
| 48 | | WR01X1134NLA SCREW | Discontinued |
| 50 | – | WR13X0444 HINGE BRACKET-RH CAB.-BT | - |
| 50 | – | WR13X0445 HINGE BRACKET-LH CAB.-BT | - |
| 51 | – | WR02X3857 SHIM | - |
| 52 | | WR01X1188NLA SCR 12-24 BP HXW 7/8 S | Discontinued |
| 53 | – | WR01X1114 WASHER | - |
| 54 |  | WZ2X464Dreplaces WZ02X0464 SCREW 8-32 X 3/8 | - |
| 55 | – | WR80X0530 INNER LINER | - |
| 56 | | WE2X186Dreplaces WR01X1122 SCR 1/4-14 BA HX 1 S NS | - |
| 56 | – | WR02X3858 BRACKET LINER TO OC | - |
| 56 | | WZ05X0141NLA SCREW | Discontinued |
| 64 | – | WR02X3859 CLIP BREAKER STRIP | - |
| 72 | – | WR02X4060 SUPPORT | - |
| 75 |  | WR2X3139replaces WR02X3139 PLUG BUTTON | - |
| 78 | – | WR02X4017 SIDE SUPPORT-MEAT PAN CO | - |
| 83 | – | WR02X4018 SUPPORT-COVER | - |
| 84 | – | WR02X4019 CENTER POST | - |
| 85 | | WR02X4020NLA SUPPORT-BTM. POST | Discontinued |
| 87 | | WR01X1108NLA SCREW GROMMET | Discontinued |
| 87 | – | WR17X0906 LINER TOP - FF | - |
| 87 | | WZ04X0244NLA SCREW-FRONT | Discontinued |
| 88 | – | WR02X3537 DRAIN GROMMET | - |
| 89 | – | WR02X4028 PLUG BUTTON | - |
| 89 | – | WR17X0943 FREEZER BOTTOM | - |
| 89 | – | WZ06X0072 SCREW-BOTTTOM | - |
| 90 | – | WR02X4022 SUPPORT-REAR | - |
| 91 | – | WR02X4023 SUPPORT-FRONT | - |
| 91 |  | WZ4X241Dreplaces WZ04X0241 SCR 8-15 AB TR 1/2 SS | $14.87 Part Advantage |
| 92 | – | WR02X2103 TUBE DRAIN | - |
| 93 | | WR02X2904NLA CAP - TUBE | Discontinued |
| 94 | – | WR02X1349 BUSHING | - |
| 95 | – | WR02X3861 COVER TUBE SEAL | - |
| 95 | – | WZ04X0224 SCR 6-19 HI/LO HXW 1/2 S | - |
| 96 | – | WR17X0944 EVAPORATOR HOUSING(EL-B, | - |
| 96 | – | WR17X1121 EVAPORATOR HOUSING (EL-F | - |
| 97 | – | WR74X0113 GRILLE EVAPORATOR | - |
| 98 | – | WR02X3862 BAFFLE AIR EXTN BTM | - |
| 98 | – | WR02X3863 BAFFLE AIR EXTN BTM | - |
| 99 | – | WR17X0710 ACCESS COVER | - |
| 99 |  | WD2X5166replaces WZ04X0263 SCR 10-16 AB HXW 1/2 | $9.92 Parts Dr |
| 100 | – | WR02X5776 CAP GRILLE R. SIDE | - |
| 100 | | WR2X6384replaces WR02X5777 CAP GRILLE L. SIDE | - |
| 100 | – | WR74X0116 GRILLE RH CAB. | - |
| 100 | – | WR74X0117 GRILLE LH CAB. | - |
| 101 | – | WR02X4098 BRACKET GRILLE R. SIDE | - |
| 102 | – | WR02X4099 BRACKET GRILLE L. SIDE | - |
| 103 | | WE2X186Dreplaces WR01X1194 SCREW | - |
| 104 | | WR1X1361replaces WR01X1344 POP RIVET | - |
| 104 | – | WR02X4082 RETAINER-SCREW | - |
| 104 | – | WR17X0965 FRONT CHANNEL | - |
| 105 | – | WR02X4083 FRONT WHEEL ASM. | - |
| 106 | – | WR01X1345 ADJUSTING SCREW | - |
| 106 | – | WR02X4084 WEDGE - MOBILITY | - |
| 107 |  | WR2X3594replaces WR02X3594 WHEEL MOBILITY | $22.67 RepairClinic |
| 108 | – | WR02X3597 AXLE-REAR WHEEL | - |
| 109 | | WR02X3598NLA COTTER PIN | Discontinued |
| 110 | – | WR02X1864 CUP & BRACKET ASM-R.SIDE | - |
| 111 | – | WR02X1865 CUP & BRACKET ASM-L.SIDE | - |
| 112 | – | WR02X2202 SLEEVE COMP MTG | - |
| 112 | – | WZ06X0062 SCREW - CHANNEL TO CASE | - |
| 113 | – | WR02X2810 BRKT-OIL MTG. | - |
| 113 | – | WR02X3928 EXT.-FRONT UNIT MOUNTING | - |
| 114 | – | WR02X2811 ISOLATOR-OIL COOLER MTG. | - |
| 115 | – | WZ04X0299 SCREW MACHINE MTG. REAR | - |
| 116 | – | WR02X2812 NUT FOR SCREW | - |
| 117 | – | WR32X0523 EVAPORATING PAN | - |
| 120 | – | WR51X0136 HEATER-LINER TOP-FF | - |
| 122 | – | WR51X0107 HEATER, DEFROST | - |
| 123 | – | WR02X3362 DEFLECTOR - HEATER | - |
| 124 | – | WR02X3363 CLIP-DEFLECTOR | - |
| 125 |  | WR50X50replaces WR50X0004 THERMOSTAT, DEFROST | $8.54 Part Advantage |
| 126 | – | WR02X4049 SOCKET LAMP | - |
| 130 |  | WR23X10300replaces WR23X0067 POWER CORD | - |
| 130 | – | WR23X0139 RECEPTACLE FOR I.M. PLUG | - |
| 131 |  | WR1X5278replaces WR02X2769 STRAIN RELIEF | $8.59 Parts Dr |
| 131 | | WR82X177replaces WR82X0175 ROLL INSUL.(1"X30-1/2"X1 | - |
| 131 | | WR82X177replaces WR82X0176 ROLL INSUL. (2"X30-1/2"X | - |
| 131 | | WR82X177replaces WR82X0177 INSUL-1"X30 1/2"X100 FT. | - |
| 132 |  | WR87X10082replaces WR87X0030 COMPRESSOR, HIGH SIDE | $1,119.62 RepairClinic |
| 132 | | WR87X10082replaces WR87X0040 COMPRESSOR, HIGH SIDE | $1,119.62 RepairClinic |
| 133 | – | WR85X0043 EVAPORATOR, LOW SIDE | - |
| 134 | – | WR09X0254 CONTROL, TEMPERATURE | - |
| 135 | – | WR02X4102 WHEEL - CONTROL | - |
| 136 | – | WR17X0929 HOUSING - CONTROL | - |
| 137 | – | WR02X3369 MOUNT CLIP | - |
| 137 | – | WR02X3583 CLIP RELAY COVER | - |
| 137 | – | WR02X3755 TIMER MTG. BRKT. | - |
| 137 | – | WR02X3756 SPADE TERM. W/4" LEAD WI | - |
| 137 | – | WR02X3867 COVER RELAY | - |
| 137 | – | WR07X0105 RELAY | - |
| 137 | – | WR08X0032 GUARDETTE | - |
| 137 | | WR09X0253NLA DEFROST TIMER | Discontinued |
| 137 | – | WR62X0022 CAPACITOR | - |
| 137 | | WD2X5166replaces WZ04X0263 SCR 10-16 AB HXW 1/2 | $9.92 Parts Dr |
| 138 |  | WR60X177replaces WR60X0077 FAN BLADE, EVAP MOTOR | $158.68 Part Advantage |
| 139 | | WR60X0042NLA BLADE CONDENSER FAN | Discontinued |
| 140 | | WR01X0950NLA NUT (KEPS) FOR BLADE | Discontinued |
| 141 | – | WR02X2413 BRACKET | - |
| 141 | – | WR02X2471 FEMALE PLUG (TWO PRONG) | - |
| 141 | – | WZ05X0164 SCREW FAN MTR/BRKT | - |
| 142 | | WR2X2945replaces WR02X2945 GROMMET | - |
| 142 | – | WR02X3898 MTG. BRKT. - FRONT | - |
| 142 | – | WR02X3936 BRACKET-LG. | - |
| 142 | | FAN MOTOR-EVAP. | Discontinued |
| 142 | – | WZ04X0287 SCR 8-18 AB HX 3/8 S | - |
| 143 |  | WR60X114replaces WR60X0080 FAN BLADE | $14.23 Part Advantage |
| 144 | | WR60X114replaces WR02X3198 COMP. RING, EVAP. FAN | $14.23 Part Advantage |
| 145 | | WR2X2945replaces WR02X2945 GROMMET | - |
| 145 | – | WZ04X0308 SCREW - SPACER | - |
| 146 | – | WR02X4041 HOUSING WHEEL - SHAFT AS | - |
| 146 | – | WR17X1120 HOUSING WHEEL - SHAFT AS | - |
| 147 | – | WR02X4027 PLUG BUTTON ICEMAKER | - |
