Model
Hotpoint CTF19EBFR
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF19EBFRRefrigerator
3 diagrams242 parts
Parts Sections (3)
Diagram
Parts List
Parts in Parts List
74 parts

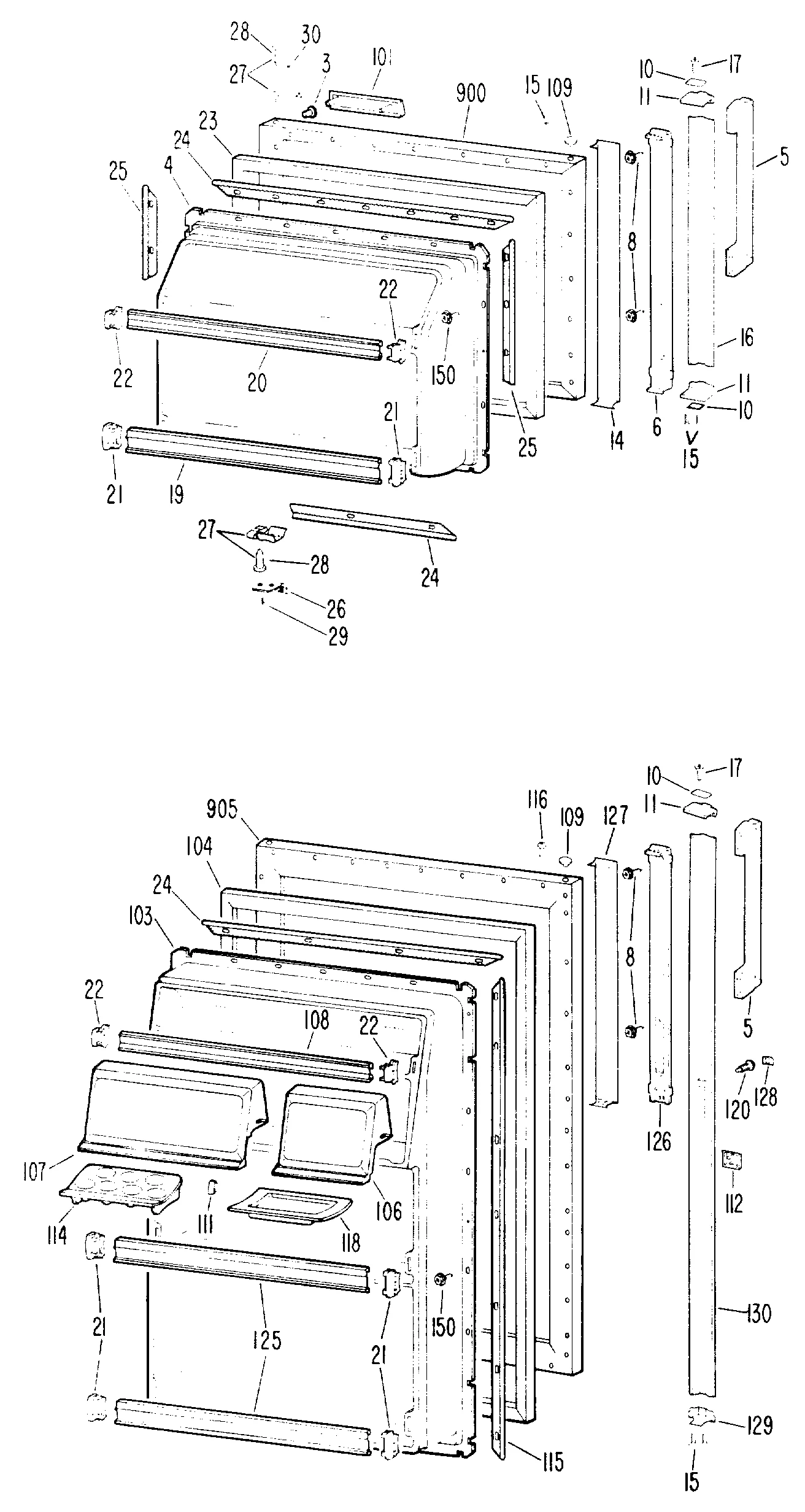

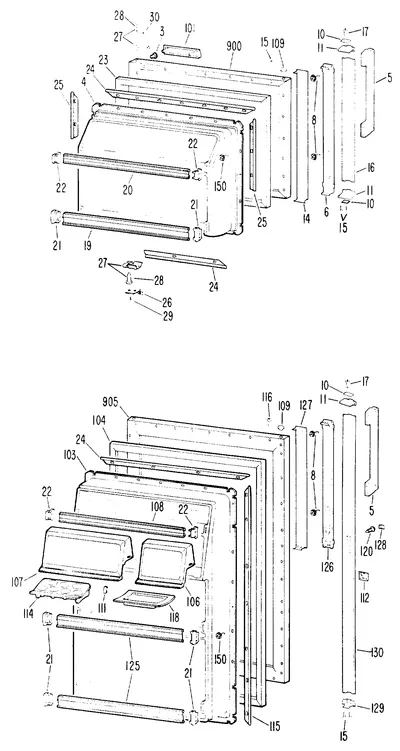

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR77X5526 DOOR INNER FZ | - |
| 5 | – | WR12X5116 HANDLE DOOR ASM(BRN) | - |
| 6 | – | WR17X5850 STIFFENER HANDLE | - |
| 8 | – | WR01X1560 SCR 10-10 BT 30A HXW5/8S | - |
| 10 | – | WR02X6289 FILLET PLUG CAP | - |
| 11 | – | WR02X6288 CAP TRIM HANDLE | - |
| 14 | – | WR02X6297 SHIM HANDLE DOOR | - |
| 15 | | WR1X1564Dreplaces WR01X1564 SCR 4/6-20 AB FL 1/2 S | - |
| 16 | – | WR38X5280 TRIM FZ DOOR(BRN) | - |
| 17 | – | WR01X1569 SCR 8/10 16 AB FL 3/4 SS | - |
| 19 | – | WR17X5932 FRONT DOOR 1 | - |
| 19 | – | WR17X5951 FRONT DOOR SHELF | - |
| 20 | – | WR17X5919 FRONT DOOR SHELF | - |
| 20 | – | WR17X5950 FRONT DOOR SHELF | - |
| 21 | | WR2X4100replaces WR02X4100 CAP SHELF FRT | - |
| 22 | | CAP SHELF FRT | Discontinued |
| 23 | | WR24X0310NLA GASKET O.DOOR FZ (WH) | Discontinued |
| 24 | – | WR17X1589 RETAINER STRIP | - |
| 25 | – | WR17X1209 RETAINER SIDES | - |
| 26 | – | WR02X6293 STOP DOOR | - |
| 27 | | WR1X1561replaces WR02X6277 NUT CHANNEL DOOR | - |
| 28 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 29 | | WZ4X261Dreplaces WZ04X0261 SCR 10-16 B PA 1/2 SS | - |
| 30 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 101 | – | WR04X5053 NAMEPLATE ASM | - |
| 103 | – | WR77X5527 DOOR INNER FF | - |
| 104 | | WR24X0311NLA GASKET O.DOOR FF (WH) | Discontinued |
| 106 | – | WR22X5031 DOOR DAIRY ASM | - |
| 107 | – | WR22X5040 DOOR DAIRY ASM | - |
| 108 | – | WR17X5934 FRONT DOOR SHELF | - |
| 108 | | FRONT DOOR SHELF | - |
| 109 | | WR2X4930replaces WR02X4930 PLUG BUTTON THIMBLE(WH) | - |
| 111 | – | WR02X6340 PLUG BUTTON(1.0"X.25") | - |
| 112 | | WR04X5058NLA NAMEPLATE DOOR ASM | Discontinued |
| 114 | – | WR02X6318 RACK EGG (7 EGGS) | - |
| 114 | – | WR19X5004 RACK EGG (9 EGGS) | - |
| 115 | – | WR17X1530 RETAINER STRIP | - |
| 116 | | WR1X1570replaces WR01X1570 SCR 4/6-20 AB PA 1/2 SS | - |
| 118 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 120 | – | WR01X1593 SCR 8-32 GX RND 9/16 S | - |
| 125 | – | WR17X5933 FRONT DOOR SHELF | - |
| 125 | – | WR17X5952 FRONT DOOR SHELF | - |
| 126 | – | WR17X5849 STIFFENER HANDLE | - |
| 127 | – | WR02X6295 SHIM HANDLE DOOR | - |
| 128 | – | WR02X6294 PLUG BUTTON TRIM(BRN) | - |
| 129 | – | WR02X6296 CAP TRIM H P | - |
| 130 | – | WR38X5304 TRIM DOOR(BRN) | - |
| 150 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 231 | | WR02X3440NLA CLIP SHELF TRIM | Discontinued |
| 280 | – | WR02X7190 NUTSTRIP-BTM. HINGE | - |
| 305 | – | WR02X7009 INSUL FOAM NOZZLE | - |
| 649 | – | WR02X7027 BRACKET DEFROST CONTROL | - |
| 655 | | WR01X1601NLA GROMMET SCR | Discontinued |
| 676 |  | WD2X5166replaces WZ04X0263 SCR 10-16 AB HXW 1/2 | $9.92 Parts Dr |
| 684 |  | WB01T10047replaces WZ04X0417 SCREW | - |
| 687 | – | WZ04X0224 SCR 6-19 HI/LO HXW 1/2 S | - |
| 694 | – | WZ05X0247 SCR 12-24 C HXW 3/8 S | - |
| 731 | – | WR02X4621 CLIP COND | - |
| 734 | – | WR02X3583 CLIP RELAY COVER | - |
| 734 | – | WR02X3867 COVER RELAY | - |
| 900 | – | WR78X7128 FRZ O.DOOR-RH/LH CAB(WH) | - |
| 900 | – | WR78X7129 FRZ O.DOOR-RH/LH CAB(HA) | - |
| 900 | – | WR78X7130 FRZ O.DOOR-RH/LH CAB(FA) | - |
| 900 | – | WR78X7132 FRZ O.DOOR-RH/LH CAB(AD) | - |
| 905 | – | WR78X7133 FF O.DOOR-RH/LH CAB.(WH) | - |
| 905 | – | WR78X7134 FF O.DOOR-RH/LH CAB.(HA) | - |
| 905 | – | WR78X7135 FF O.DOOR-RH/LH CAB.(FA) | - |
| 905 | – | WR78X7137 FF O.DOOR-RH/LH CAB.(AD) | - |
| 910 | | WR2X4930replaces WR02X4930 PLUG BUTTON THIMBLE(WH) | - |
| 910 | – | WR02X4931 PLUG BUTTON THIMBLE(HA) | - |
| 910 | – | WR02X4932 PLUG BUTTON THIMBLE(FA) | - |
| 910 | – | WR02X4934 PLUG BUTTON THIMBLE(AD) | - |
| 9999 | – | 39-6167 FRESH - FROZEN FOOD STOR | - |
