Model
Hotpoint CTF21EAC
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF21EACRefrigerator
3 diagrams236 parts
Parts Sections (3)
Diagram
Parts List
Parts in Parts List
58 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

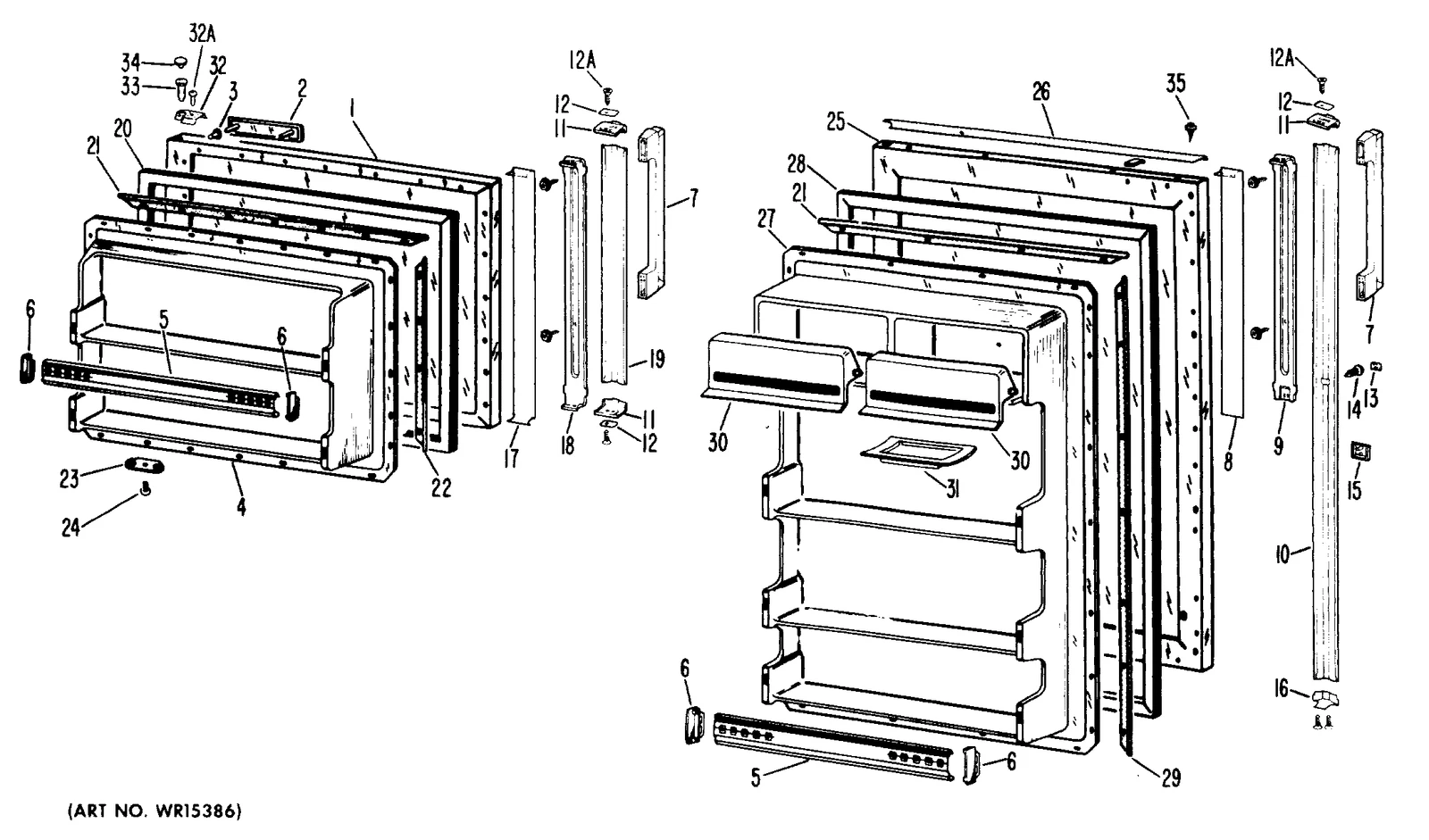

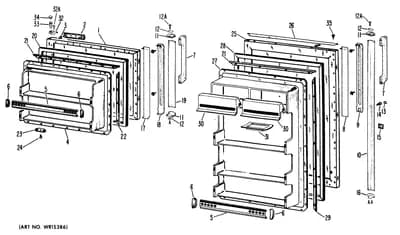

| 1 | – | WR78X6716 FRZ. O.D. PANEL (HA) | - |
| 1 | – | WR78X6717 FRZ. O.D. PANEL (FA) | - |
| 1 | – | WR78X6719 FRZ. O.D. PANEL (AD) | - |
| 1 | – | WR78X7089 FRZ O.DOOR-RH/LH CAB(WH) | - |
| 2 | – | WR04X5053 NAMEPLATE ASM | - |
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 4 | – | WR77X5439 DOOR INNER FZ | - |
| 5 | – | WR17X5973 FRONT DOOR SHELF | - |
| 5 | – | WR17X5974 FRONT DOOR SHELF | - |
| 6 | | WR2X4100replaces WR02X4100 CAP SHELF FRT | - |
| 7 | – | WR01X1560 SCR 10-10 BT 30A HXW5/8S | - |
| 7 | – | WR12X5116 HANDLE DOOR ASM(BRN) | - |
| 8 | – | WR02X6295 SHIM HANDLE DOOR | - |
| 9 | | WR1X1564Dreplaces WR01X1564 SCR 4/6-20 AB FL 1/2 S | - |
| 9 | – | WR17X5849 STIFFENER HANDLE | - |
| 10 | – | WR38X5279 TRIM | - |
| 11 | – | WR02X6288 CAP TRIM HANDLE | - |
| 12 | – | WR01X1569 SCR 8/10 16 AB FL 3/4 SS | - |
| 12 | – | WR02X6289 FILLET PLUG CAP | - |
| 13 | – | WR02X6294 PLUG BUTTON TRIM(BRN) | - |
| 14 | – | WR01X1593 SCR 8-32 GX RND 9/16 S | - |
| 14 | | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 15 | | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 15 | | WR04X5058NLA NAMEPLATE DOOR ASM | Discontinued |
| 16 | | WR1X1564Dreplaces WR01X1564 SCR 4/6-20 AB FL 1/2 S | - |
| 16 | – | WR02X6296 CAP TRIM H P | - |
| 17 | – | WR02X6297 SHIM HANDLE DOOR | - |
| 18 | | WR1X1564Dreplaces WR01X1564 SCR 4/6-20 AB FL 1/2 S | - |
| 18 | – | WR17X5850 STIFFENER HANDLE | - |
| 19 | – | WR38X5280 TRIM FZ DOOR(BRN) | - |
| 20 | – | WR24X0273 GASKET, FRZ DOOR | - |
| 21 | – | WR17X0857 RETAINER TOP BTM | - |
| 22 | – | WR17X1209 RETAINER SIDES | - |
| 23 | – | WR02X6293 STOP DOOR | - |
| 24 | | WZ4X261Dreplaces WZ04X0261 SCR 10-16 B PA 1/2 SS | - |
| 25 | – | WR78X6721 FF O.D. PANEL RH/LH CAB. | - |
| 25 | – | WR78X6722 FF O.D. PANEL RH/LH CAB. | - |
| 25 | – | WR78X6724 FF O.D. PANEL RH/LH CAB. | - |
| 25 | – | WR78X7054 FF O.D. PNL. RH/LH CAB. | - |
| 26 | – | WR01X1302 FASTENER-TRIM | - |
| 26 | – | WR01X1562 FASTENER TRIM | - |
| 26 | – | WR38X5278 TRIM | - |
| 27 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 27 | – | WR77X5488 DOOR INNER FF | - |
| 28 | | WR24X0274NLA GASKET, FF DOOR | Discontinued |
| 29 | – | WR17X1220 RETAINER STRIP | - |
| 30 | – | WR02X6248 TRIM UTILITY DOOR | - |
| 30 | – | WR17X5869 DOOR DAIRY ASM | - |
| 31 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 32 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 32 | | WR1X1561replaces WR02X6277 NUT CHANNEL DOOR | - |
| 33 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 34 | | WR2X4930replaces WR02X4930 PLUG BUTTON THIMBLE(WH) | - |
| 34 | – | WR02X4932 PLUG BUTTON THIMBLE(FA) | - |
| 34 | – | WR02X4934 PLUG BUTTON THIMBLE(AD) | - |
| 34 | – | WR22X4931 PLUG BUTTON THIMBLE (HA) | - |
| 35 | | WR1X1570replaces WR01X1570 SCR 4/6-20 AB PA 1/2 SS | - |
