Model
Hotpoint CTF21EBBR
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTF21EBBRRefrigerator
3 diagrams248 parts
Parts Sections (3)

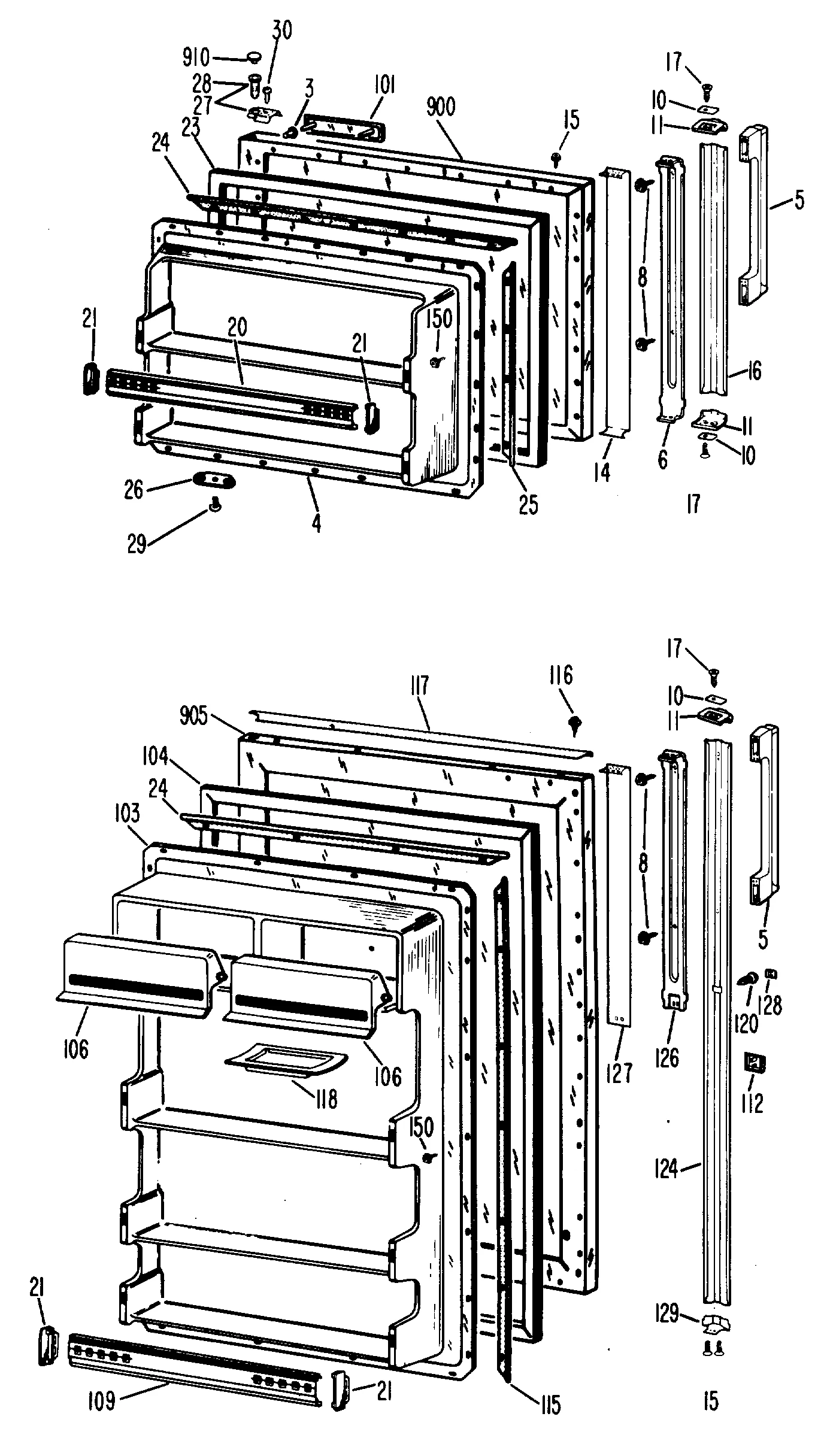

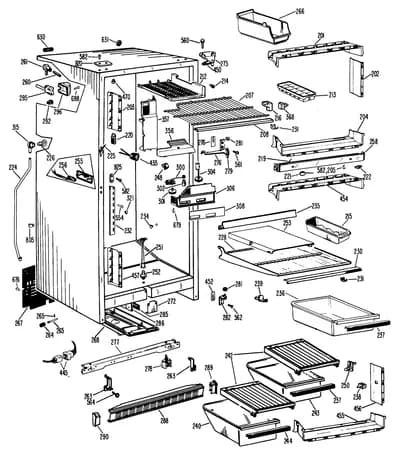

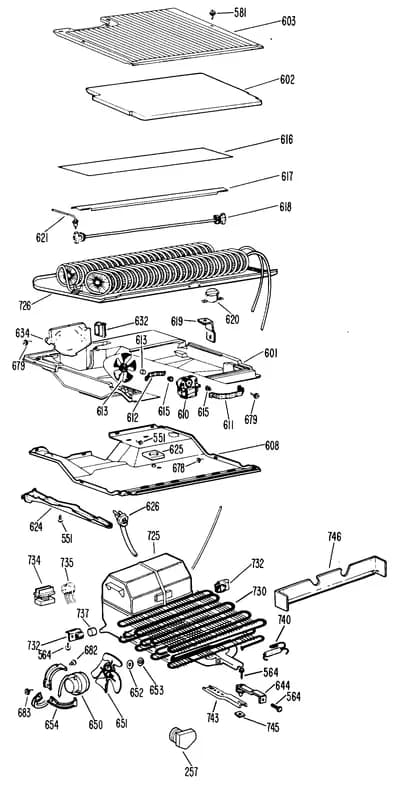

Diagram
Parts List
Parts in Parts List
76 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR77X5439 DOOR INNER FZ | - |
| 5 | – | WR12X5116 HANDLE DOOR ASM(BRN) | - |
| 6 | – | WR17X5850 STIFFENER HANDLE | - |
| 8 | – | WR01X1560 SCR 10-10 BT 30A HXW5/8S | - |
| 10 | – | WR02X6289 FILLET PLUG CAP | - |
| 11 | – | WR02X6288 CAP TRIM HANDLE | - |
| 14 | – | WR02X6297 SHIM HANDLE DOOR | - |
| 15 | | WR1X1564Dreplaces WR01X1564 SCR 4/6-20 AB FL 1/2 S | - |
| 16 | – | WR38X5280 TRIM FZ DOOR(BRN) | - |
| 17 | – | WR01X1569 SCR 8/10 16 AB FL 3/4 SS | - |
| 20 | – | WR17X5973 FRONT DOOR SHELF | - |
| 21 | | WR2X4100replaces WR02X4100 CAP SHELF FRT | - |
| 23 | – | WR24X0273 GASKET, FRZ DOOR | - |
| 24 | – | WR17X0857 RETAINER TOP BTM | - |
| 25 | – | WR17X1209 RETAINER SIDES | - |
| 26 | – | WR02X6293 STOP DOOR | - |
| 27 | | WR1X1561replaces WR02X6277 NUT CHANNEL DOOR | - |
| 28 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 29 | | WZ4X261Dreplaces WZ04X0261 SCR 10-16 B PA 1/2 SS | - |
| 30 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 101 | – | WR04X5053 NAMEPLATE ASM | - |
| 102 | | WR2X4990replaces WR02X4990 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 103 | – | WR77X5488 DOOR INNER FF | - |
| 104 | | WR24X0274NLA GASKET, FF DOOR | Discontinued |
| 106 | – | WR17X5869 DOOR DAIRY ASM | - |
| 109 | – | WR17X5974 FRONT DOOR SHELF | - |
| 112 | | WR04X5058NLA NAMEPLATE DOOR ASM | Discontinued |
| 115 | – | WR17X1220 RETAINER STRIP | - |
| 116 | | WR1X1570replaces WR01X1570 SCR 4/6-20 AB PA 1/2 SS | - |
| 117 | – | WR38X5331 TRIM DOOR | - |
| 118 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 120 | – | WR01X1593 SCR 8-32 GX RND 9/16 S | - |
| 124 | – | WR38X5279 TRIM | - |
| 126 | – | WR17X5849 STIFFENER HANDLE | - |
| 127 | – | WR02X6295 SHIM HANDLE DOOR | - |
| 128 | – | WR02X6294 PLUG BUTTON TRIM(BRN) | - |
| 129 | – | WR02X6296 CAP TRIM H P | - |
| 150 | – | WR01X1464 SCR 6-18 SPEC HXW 9/16 S | - |
| 228 | – | WR71X1301 SHELF CANT | - |
| 259 | – | WR02X4507 BRACKET MULLION | - |
| 259 | – | WR14X0240 GASKET FOAM | - |
| 270 | – | WR02X3248 PLUG BUTTON 1/4" HOLE | - |
| 280 | – | WR01X5445 NUTSTRIP-CTR HINGE | - |
| 280 | – | WR02X4400 NUT STRIP | - |
| 287 | – | WR02X3863 BAFFLE AIR EXTN BTM | - |
| 316 | – | WR02X4628 RETAINER FILL TUBE | - |
| 358 | – | WR04X5044 INSERT AIR DUCT | - |
| 422 | – | WR01X1332 RIVET-PLASTIC | - |
| 453 | – | WR02X4400 NUT STRIP | - |
| 555 | – | WR01X1354 RIVET POP | - |
| 568 | – | WZ05X0137 SCR 8-32 SPEC DRILL PT | - |
| 604 | | WR02X3899NLA FOAM STRIP ADH | Discontinued |
| 675 | – | WZ06X0094 SCR 8-18 AB TR 5/8SS PLW | - |
| 685 | – | WR01X1596 SCR 1/4-14 AB HX 1/2S NS | - |
| 686 |  | WZ5X158Dreplaces WR01X5048 SCR 8-32 BP AHW 7/16 S | $27.34 ApplianceParts Pro |
| 687 | – | WZ04X0224 SCR 6-19 HI/LO HXW 1/2 S | - |
| 694 | – | WZ05X0247 SCR 12-24 C HXW 3/8 S | - |
| 725 |  | WR87X10082replaces WR87X0050 MACHINE HIGH SIDE | $1,119.62 RepairClinic |
| 725 | – | WR97X0177 REFRIGERANT | - |
| 727 | – | WR02X4828 FOAM BLOCK EVAP AIR | - |
| 731 | – | WR02X4621 CLIP COND | - |
| 750 | | WR82X177replaces WR82X0177 INSUL-1"X30 1/2"X100 FT. | - |
| 900 | – | WR78X7089 FRZ O.DOOR-RH/LH CAB(WH) | - |
| 901 | – | WR78X7090 FRZ O.DOOR-RH/LH CAB(HA) | - |
| 902 | – | WR78X7091 FRZ O.DOOR-RH/LH CAB(FA) | - |
| 904 | – | WR78X7093 FRZ O.DOOR-RH/LH CAB(AD) | - |
| 905 | – | WR78X7054 FF O.D. PNL. RH/LH CAB. | - |
| 906 | – | WR78X6721 FF O.D. PANEL RH/LH CAB. | - |
| 907 | – | WR78X6722 FF O.D. PANEL RH/LH CAB. | - |
| 909 | – | WR78X6724 FF O.D. PANEL RH/LH CAB. | - |
| 910 | | WR2X4930replaces WR02X4930 PLUG BUTTON THIMBLE(WH) | - |
| 910 | – | WR02X4931 PLUG BUTTON THIMBLE(HA) | - |
| 910 | – | WR02X4932 PLUG BUTTON THIMBLE(FA) | - |
| 910 | – | WR02X4934 PLUG BUTTON THIMBLE(AD) | - |
| 9999 | – | 39-6169 OWNERS GUIDE | - |
