Model
Hotpoint CTX14BAXKRAD
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTX14BAXKRADRefrigerator
3 diagrams150 parts
Parts Sections (3)
Diagram

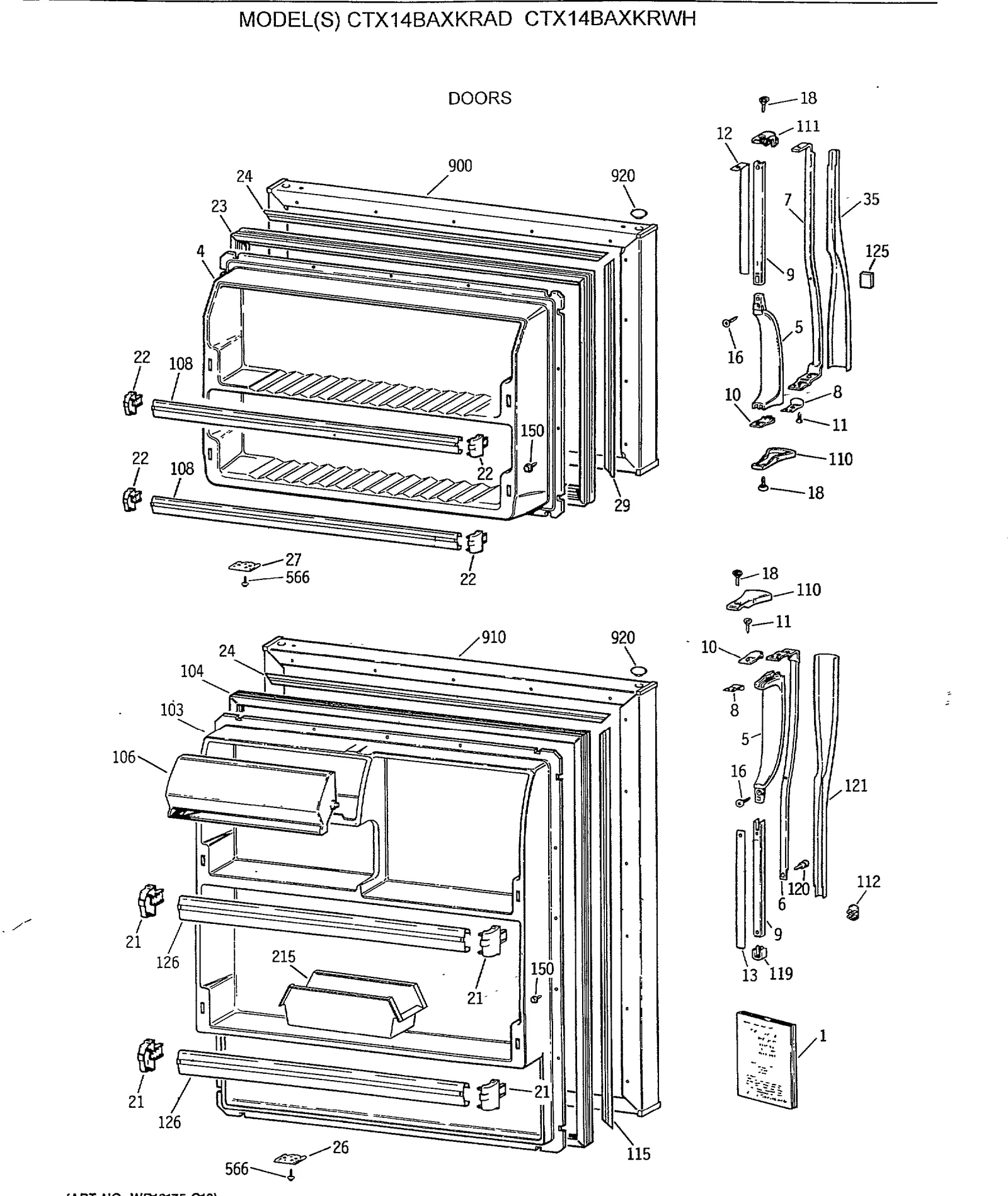

DOORS
Parts in DOORS
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-5036 ATTENTION INSTALLER | - |
| 1 | – | 31-51027 MINI MANUAL WIRING | - |
| 1 | – | 39-6407 PM GUIDE OWNERS | - |
| 4 | – | WR77X0550 DOOR INNER FZ | - |
| 5 |  | WR12X0463NLA HANDLE DOOR | Discontinued |
| 6 | – | WR12X0794 STIFFENER HANDLE | - |
| 7 | – | WR12X0793 STIFFENER HANDLE | - |
| 8 | | WR02X7793NLA SHIM HANDLE ASM | Discontinued |
| 9 | | WR12X790replaces WR12X0790 CHANNEL HANDLE | - |
| 10 | | WR02X7140NLA CLIP HANDLE | Discontinued |
| 11 | – | WZ04X0352 SCREW 8-18 B 7/16 | - |
| 12 | – | WR02X8351 SHIM HANDLE DOOR | - |
| 13 | | WR2X8352replaces WR02X8352 SHIM HANDLE DOOR | - |
| 16 | | WR1X1565Dreplaces WR01X1565 SCR 8-32 MA FL 21/32 S | - |
| 18 |  | WR1X1726Dreplaces WR01X1726 SCR 10-16 AB 3/4 SS | $23.52 Part Advantage |
| 21 |  | WR2X9144replaces WR02X9144 CAP SHLF FRT | $22.42 Part Advantage |
| 22 |  | WR2X9162replaces WR02X9162 CAP SHLF FRNT NARROW | $12.36 Part Advantage |
| 23 |  | WR24X10228replaces WR24X0524 GASKET DOOR FRZ | $61.90 Part Advantage |
| 24 | – | WR02X8235 RETAINER STRIP H | - |
| 26 | – | WR02X8241 STOP DOOR | - |
| 27 | | WR02X8264NLA STOP DOOR FZ | Discontinued |
| 29 | | RETAINER STRIP V | Discontinued |
| 35 | | WR12X792replaces WR12X0792 INSERT DOOR HANDLE | - |
| 103 | – | WR77X0645 DOOR INNER FF | - |
| 104 |  | WR24X10231replaces WR24X0518 GASKET DOOR FF | $58.06 Part Advantage |
| 106 | | WR22X0487NLA DOOR DAIRY | Discontinued |
| 108 |  | FRONT DOOR SHELF FZ | $20.61 Part Advantage |
| 110 |  | CAP TRIM HANDLE | Discontinued |
| 111 | | WR02X7792NLA CAP TRIM HANDLE | Discontinued |
| 112 | | WR02X8697NLA PLUG DOOR RVSBL AD | Discontinued |
| 115 | | WR02X8237NLA RETAINER STRIP VERT | Discontinued |
| 119 | – | WR02X4928 CAP HANDLE | - |
| 120 | | WR01X1755NLA SCR 8-18 AB SPECIAL PA S | Discontinued |
| 121 | – | WR12X0791 INSERT DOOR HANDLE | - |
| 125 | – | WR04X0199 LENS NAMEPLATE | - |
| 126 |  | FRONT DOOR SHELF FF | $20.39 Part Advantage |
| 150 |  | WR1X1791Dreplaces WR01X1791 SCR 8-15 SPEC | $22.07 RepairClinic |
| 215 | | BUCKET UTILITY | - |
| 566 |  | WR01X10590replaces WR01X1728 SCR 10-16 1/2 PH | $5.09 Part Advantage |
| 612 | | WR02X8217NLA BRACKET EVAP FAN REAR | Discontinued |
| 827 | | WD2X425replaces WD02X0425 SCR 10-12X1/2 AC PNR S | $6.26 Parts Dr |
| 900 | | FRZ O. DOOR (AD) W/TRIM | - |
| 910 | | FF O DOOR (AD) | - |
| 920 | | WR2X8234replaces WR02X8234 PLUG BUTTON (AD) | - |
